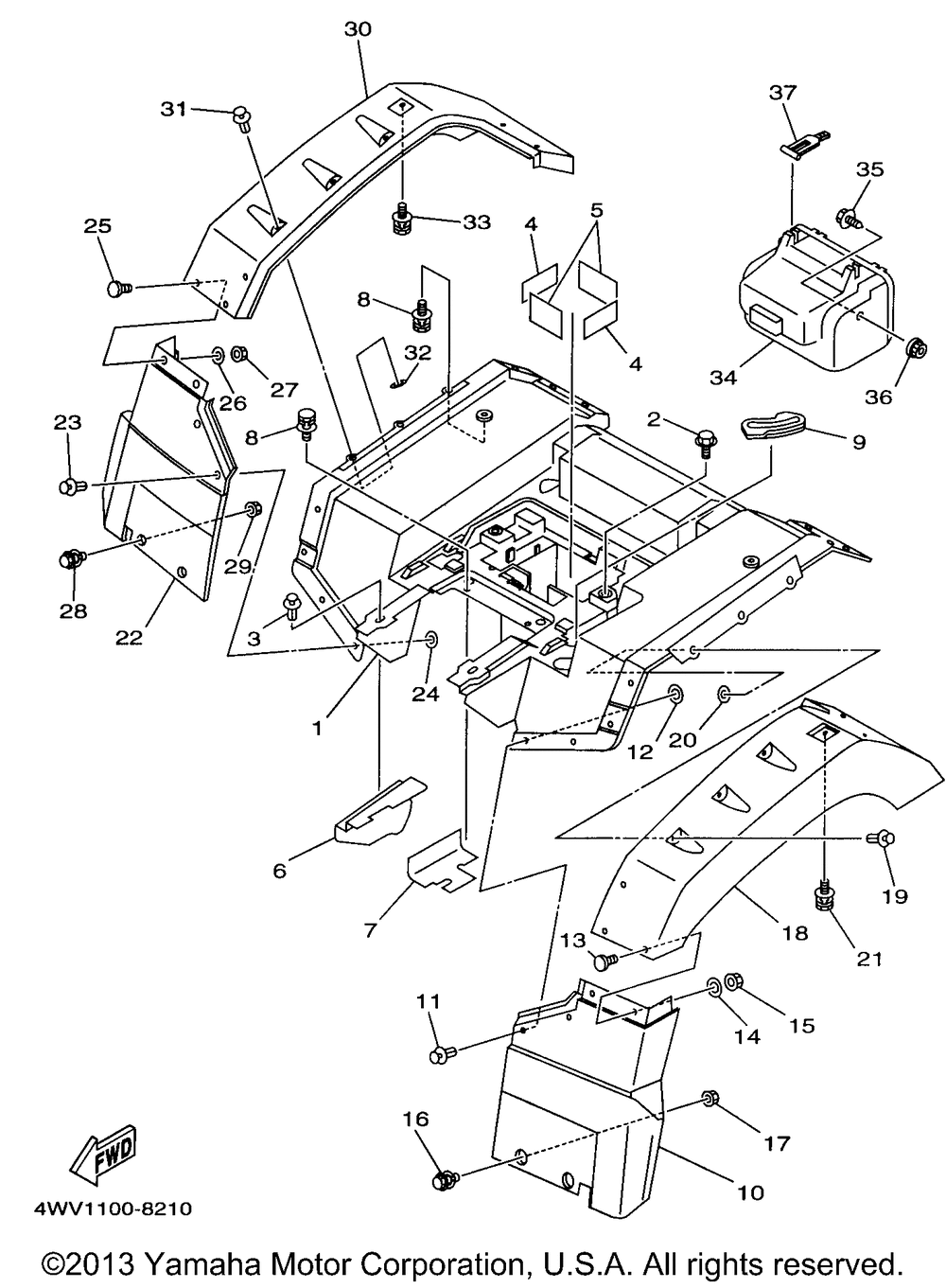

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER COMP. (R UR RTR * | 1 | |
| 1 | REAR FENDER COMP. (P UR PDG * | 1 | |
| 1 | REAR FENDER COMP. (D UR DNYS1 * | 1 | |
| 2 | BOLTFLANGE | 2 | |
| 3 | RIVETSPEC'L SHAPE | 2 | |
| 4 | DAMPER 1 (5 per pack) | 2 | |
| 5 | DAMPER 1 | 2 | |
| 6 | DAMPER 2 | 1 | |
| 7 | DAMPER | 1 | |
| 8 | BOLT WITH WASHER | 4 | |
| 9 | SEAL | 1 | |
| 10 | FLAP ASSY 1 | 1 | |
| 12 | WASHERPLATE (5 per pack) | 2 | |
| 13 | SCREW BINDING | 3 | |
| 14 | WASHERPLATE (5 per pack) | 3 | |
| 15 | NUT FLANGE (4GB) | 3 | |
| 16 | BOLTWITH WASHER | 2 | |
| 17 | NUTFLANGE (4MV) | 2 | |
| 18 | FLAP 3 | 1 | |
| 22 | FLAP | 1 | |
| 30 | FLAP 4 | 1 | |
| 34 | BOX COMP. | 1 | |
| 35 | BOLT WITH WASHER | 2 | |
| 36 | NUT-U | 2 | |
| 37 | BAND | 2 |
