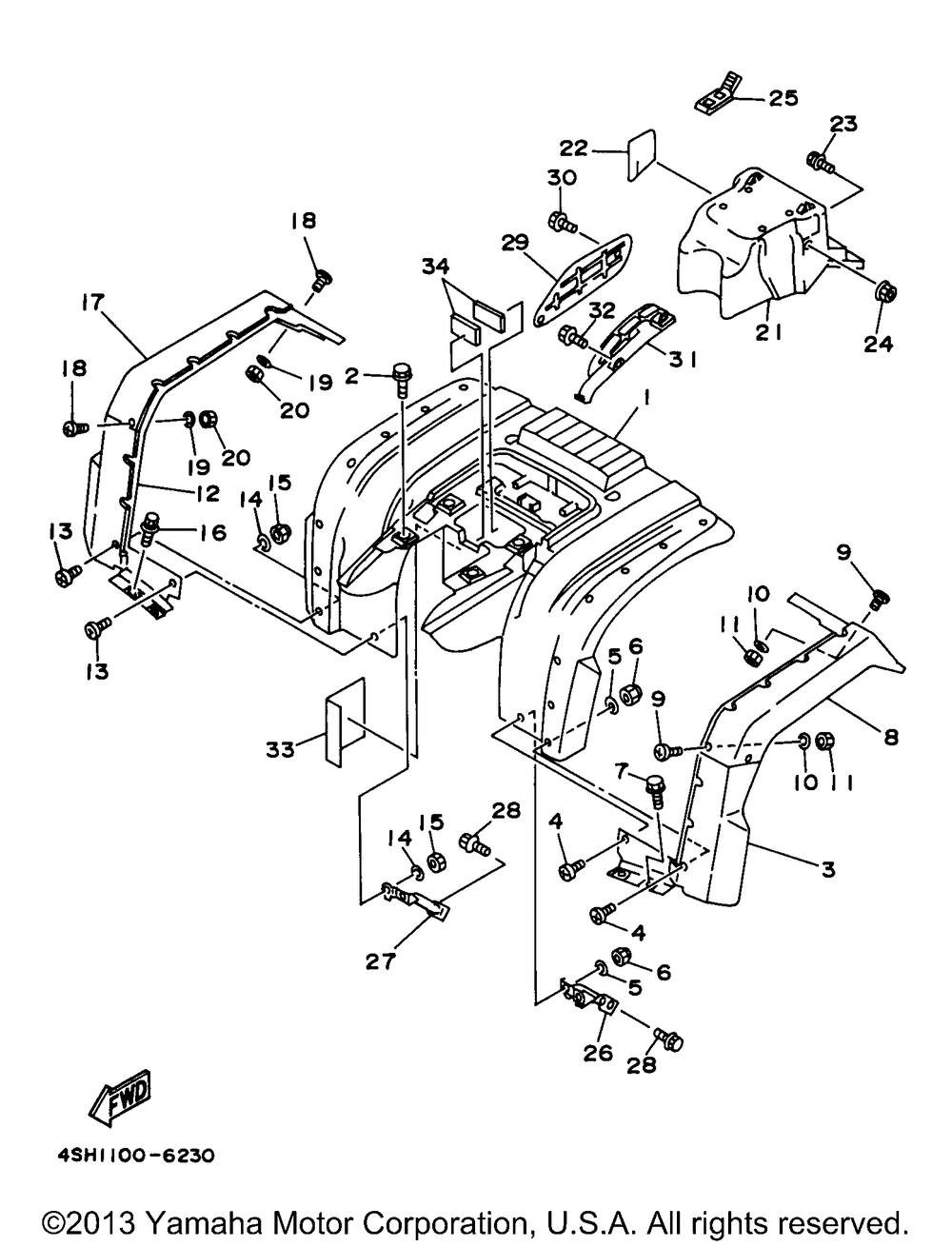

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER COMP. (MSG) UR | 1 | |
| 1 | FENDERREAR COMP. (RTR) UR | 1 | |
| 2 | BOLT WITH WASHER | 6 | |
| 3 | FLAP ASSY 1 UR | 1 | |
| 4 | SCREW BINDING | 4 | |
| 5 | WASHERPLATE (5 per pack) | 4 | |
| 6 | NUT FLANGE (4GB) | 4 | |
| 7 | BOLTWITH WASHER | 2 | |
| 8 | FLAP 3 YB | 1 | |
| 12 | FLAP | 1 | |
| 17 | FLAP 4 YB | 1 | |
| 21 | BOX COMP. | 1 | |
| 22 | PROTECTOR | 1 | |
| 23 | BOLT WITH WASHER | 2 | |
| 24 | NUT-U | 2 | |
| 25 | BAND | 2 | |
| 26 | STAYFENDER 1 | 1 | |
| 27 | STAYFENDER 2 | 1 | |
| 28 | BOLT FLANGE | 2 | |
| 29 | COVERREAR FNDR.3 | 1 | |
| 30 | BOLTFLANGE | 1 | |
| 31 | COVERREAR FENDER 3 | 1 | |
| 33 | PROTECTOR | 1 | |
| 34 | DAMPER 1 (5 per pack) | 2 |
