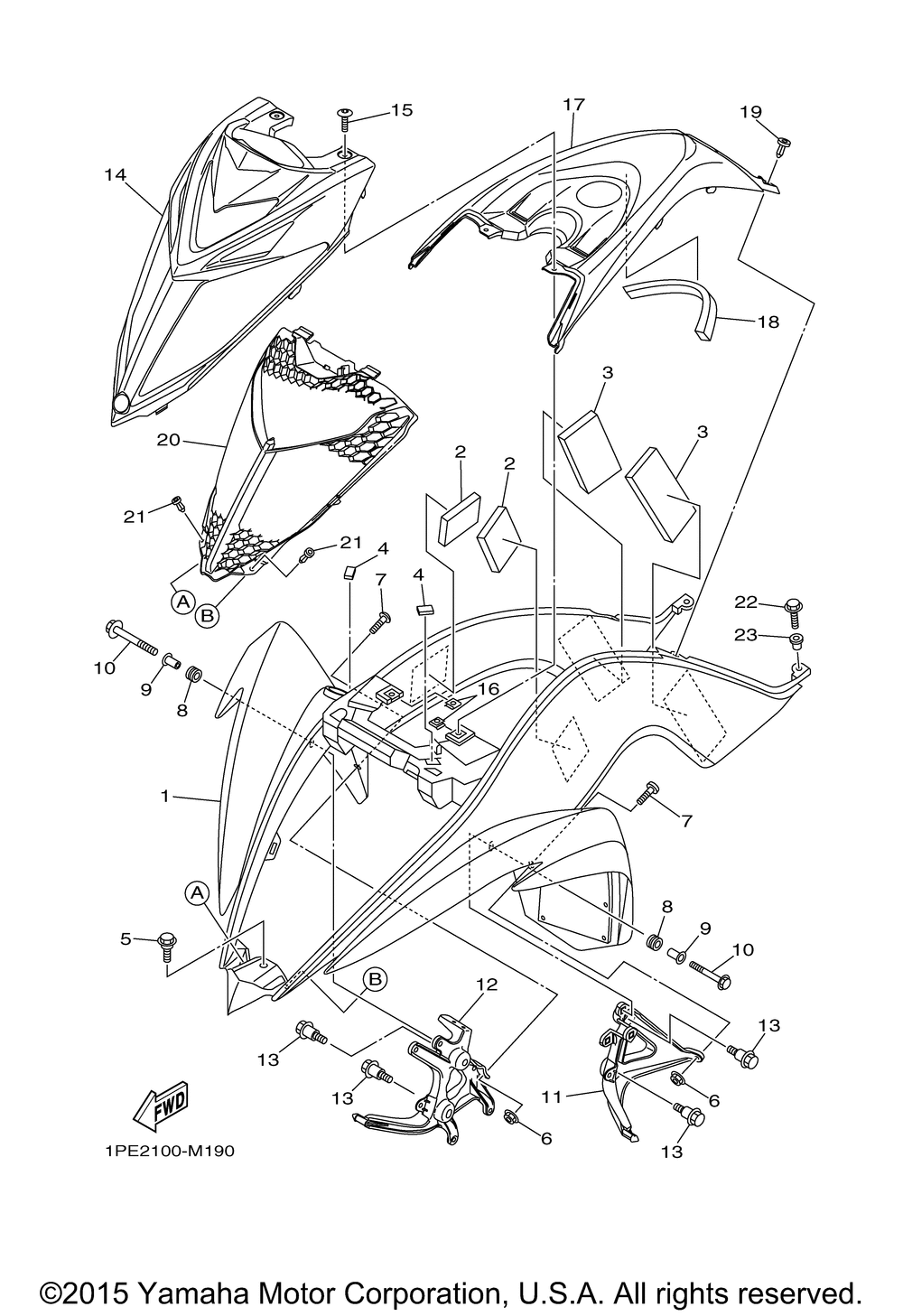

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FENDER ASSY | 1 | |
| 2 | DAMPER 1 | 2 | |
| 3 | DAMPERLOCATING 3 (4ESA) | 2 | |
| 4 | DAMPER 1 | 2 | |
| 5 | BOLT | 1 | |
| 6 | NUT-U | 2 | |
| 7 | BOLTHEX. SOCKET BUT | 2 | |
| 8 | GROMMET (5 per pack) | 2 | |
| 9 | COLLAR | 2 | |
| 10 | BOLTFLANGE | 2 | |
| 11 | STAY FENDER 1 | 1 | |
| 12 | STAY FENDER 2 | 1 | |
| 13 | BOLT | 4 | |
| 14 | PANEL FRONT | 1 | |
| 15 | BOLTHEX SKT HEAD | 2 | |
| 16 | NUT SPRING (4ES) | 2 | |
| 17 | COVER TOP | 1 | |
| 18 | DAMPER PLATE | 1 | |
| 19 | RIVET | 2 | |
| 20 | COVER RADIATOR | 1 | |
| 22 | BOLT FLANGE | 2 | |
| 23 | COLLAR | 2 |
