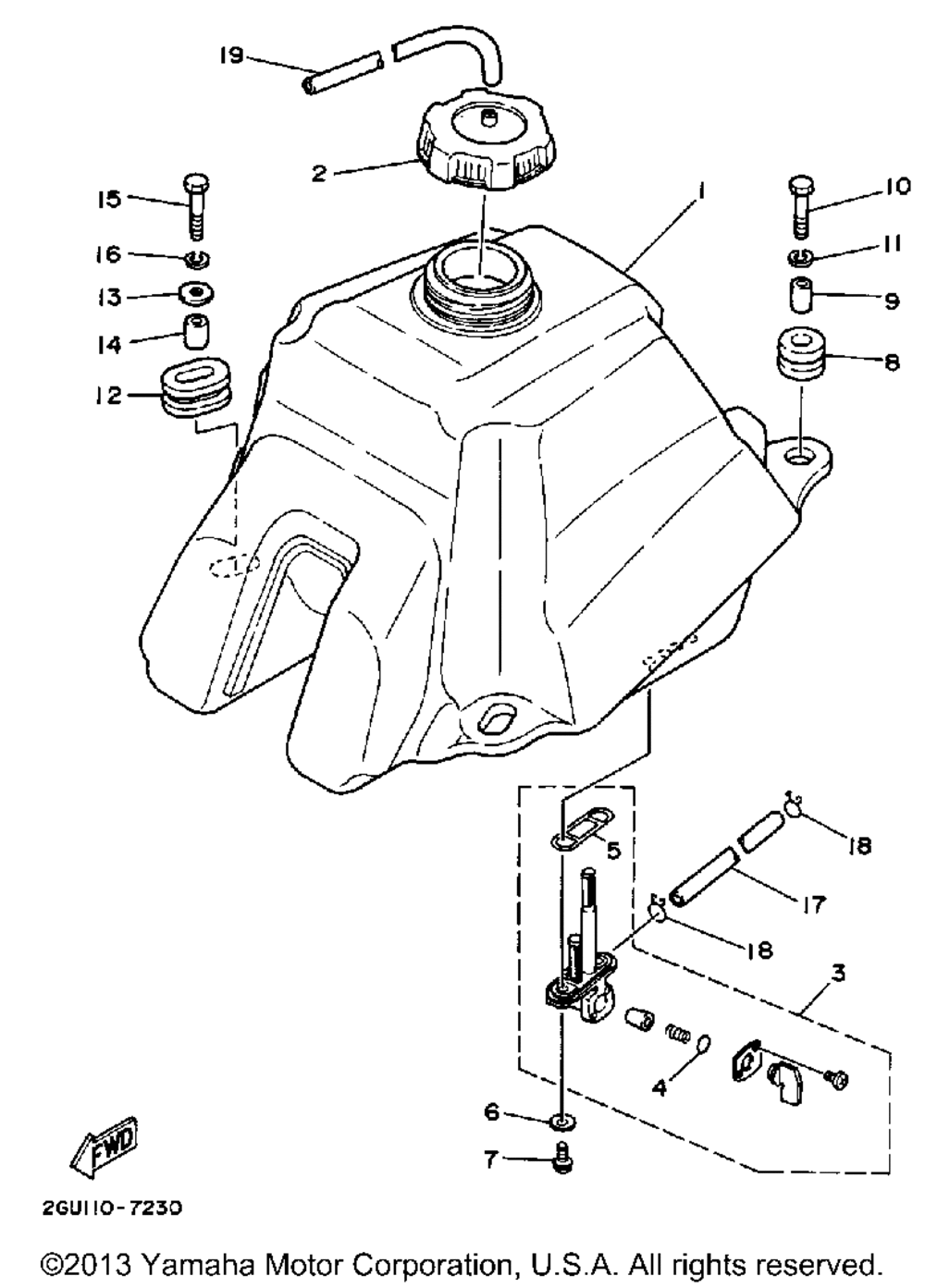

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | CAP ASSY | 1 | |
| 3 | FUEL COCK ASSY 1 | 1 | |
| 4 | SEALCOCK | 1 | |
| 5 | O-RING | 1 | |
| 6 | WASHERPLATE | 2 | |
| 7 | SCREWSPEC'L SHAPE | 2 | |
| 8 | GROMMET | 2 | |
| 9 | COLLAR | 2 | |
| 10 | BOLTHEXAGON | 2 | |
| 11 | WASHER (5 per pack) | 2 | |
| 12 | GROMMET | 2 | |
| 13 | WASHER PLATE | 2 | |
| 14 | COLLAR | 2 | |
| 17 | HOSE (L166) | 1 | |
| 18 | CLIP | 2 | |
| 19 | HOSE (L430) | 1 |
