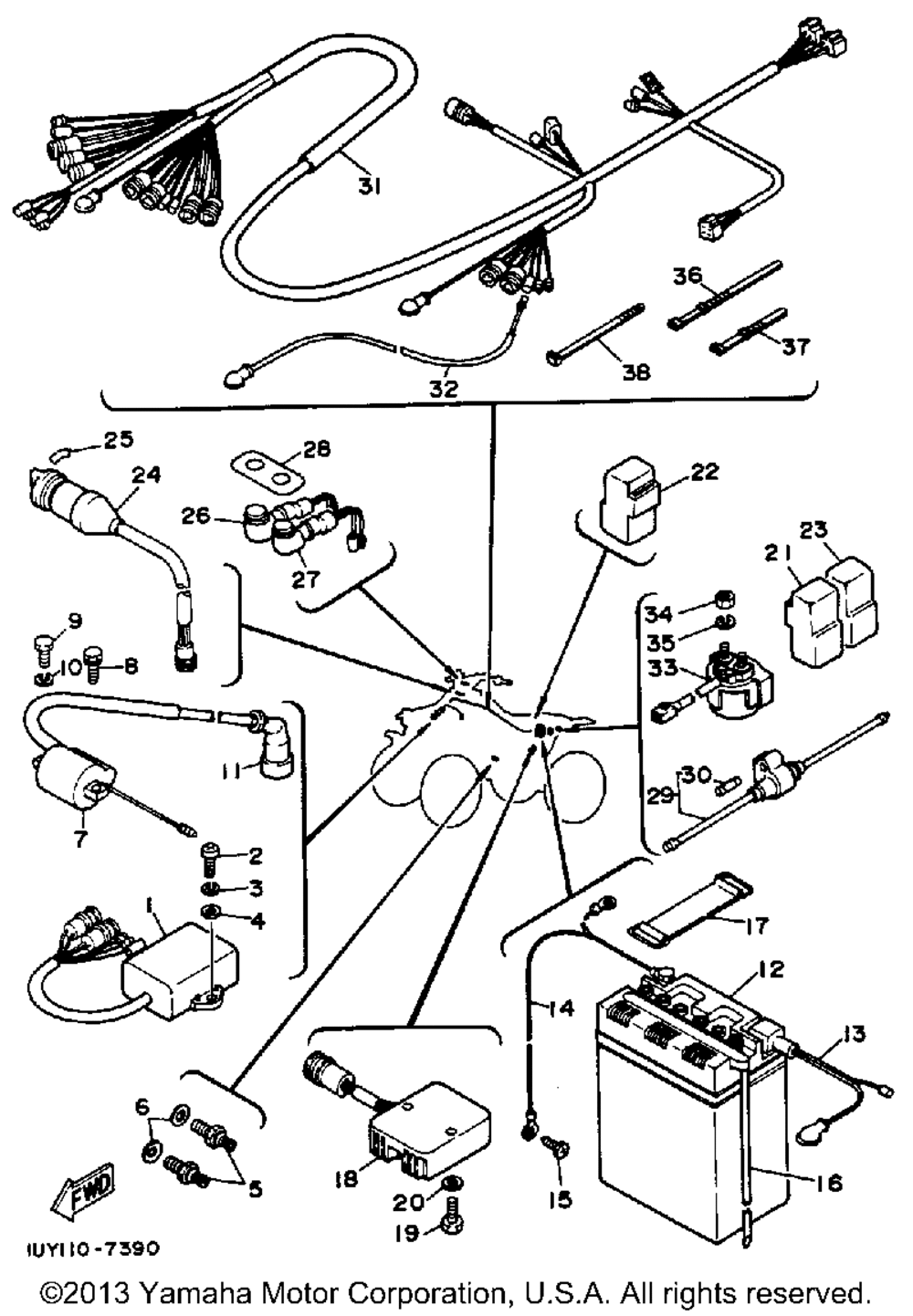

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CDI UNIT ASSY | 1 | |
| 2 | SCREWPAN HEAD (USA) (5 per pack) | 2 | |
| 3 | WASHER (5 per pack) | 2 | |
| 4 | WASHER (5 per pack) | 2 | |
| 5 | NEUTRAL SWITCH ASSY | 2 | |
| 6 | GASKET (5 per pack) | 2 | |
| 7 | IGNITION COIL ASSY | 1 | |
| 8 | BOLT | 1 | |
| 9 | BOLT (3DM) (3XF) (97302-06020-00) | 1 | |
| 11 | PLUG CAP ASY | 1 | |
| 12 | CB12CA GS BATTERY | 1 | |
| 13 | WIREPLUS LEAD | 1 | |
| 14 | WIRELEAD | 1 | |
| 15 | SCREWHEXAGON | 1 | |
| 16 | HOSE (L500) | 1 | |
| 17 | BANDBATTERY | 1 | |
| 18 | RECTIFIER/REG ASSY | 1 | |
| 19 | BOLT HEXAGON | 2 | |
| 20 | WASHER PLATE | 2 | |
| 21 | RELAY ASSY (ACA12115-1) | 1 | |
| 22 | RELAY ASSY (3GD-01) | 1 | |
| 24 | MAIN SWITCH ASSY | 1 | |
| 25 | LABEL | 1 | |
| 26 | PILOT LIGHT ASSY NE FOR NEUTRAL | 1 | |
| 27 | PILOT LIGHT ASSY RE | 1 | |
| 28 | LABEL | 1 | |
| 29 | FUSE HOLDER ASSY | 1 | |
| 30 | FUSE (15A) (15A) | 2 | |
| 31 | WIRE HARNESS ASSY | 1 | |
| 32 | WIRELEAD | 1 | |
| 33 | STARTER RELAY ASSY | 1 | |
| 34 | NUT | 2 | |
| 36 | BANDSWITCH CORD | 3 | |
| 37 | BANDSWITCH CORD | 2 | |
| 38 | BAND | 1 |
