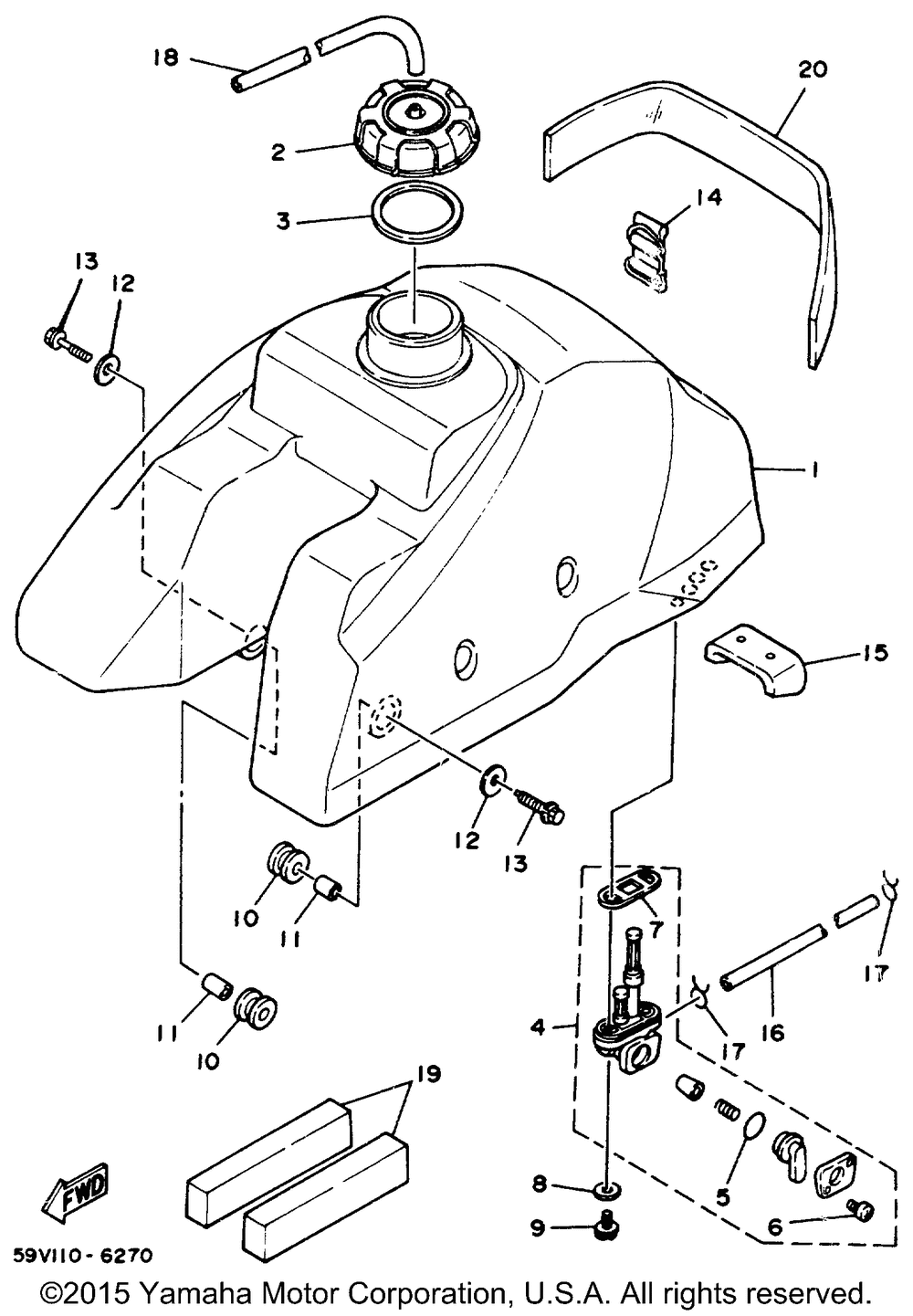

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CAP ASSY | 1 | |
| 1 | FUEL TANK | 1 | |
| 1 | FUEL TANK (59V-24110-00) | 1 | |
| 3 | GASKETCAP | 1 | |
| 4 | FUEL COCK ASSY 1 UR CA 5SCL | 1 | |
| 5 | SEALCOCK | 1 | |
| 6 | SCREWPAN HEAD (5 per pack) | 2 | |
| 7 | O-RING | 1 | |
| 8 | WASHERPLATE | 2 | |
| 9 | SCREWSPEC'L SHAPE | 2 | |
| 10 | GROMMET | 2 | |
| 11 | COLLAR | 2 | |
| 12 | WASHERPLATE | 2 | |
| 13 | BOLTWITH WASHER | 2 | |
| 14 | BANDTANK FITTING 1 | 1 | |
| 15 | DAMPERLOCATING 1 | 1 | |
| 16 | HOSE (L45) | 1 | |
| 17 | CLIP | 2 | |
| 18 | HOSE (L430) | 1 | |
| 19 | TRIM LOWER | 2 | |
| 20 | DAMPERLOCATING 1 | 1 |
