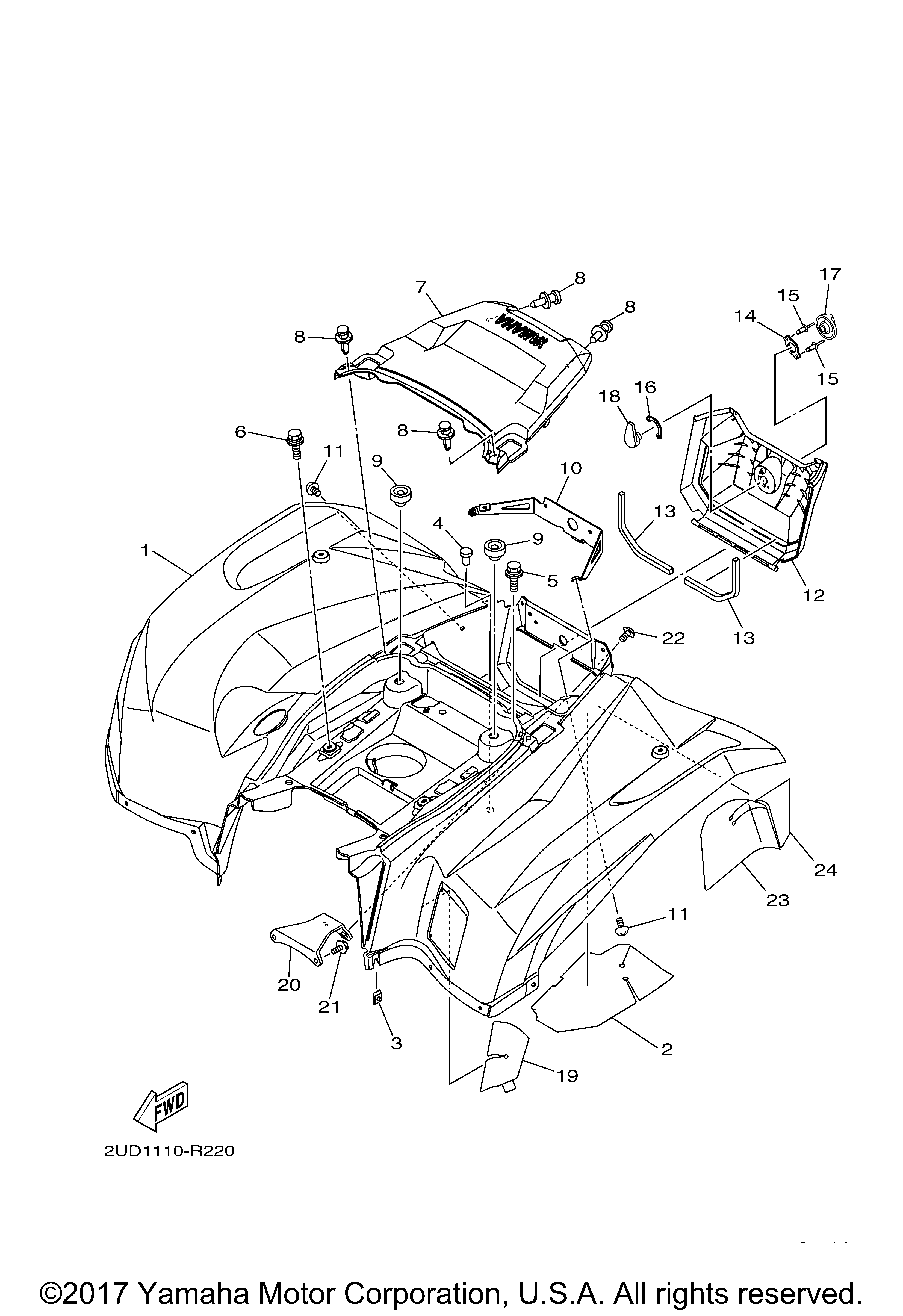

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER ASSY | 1 | |
| 2 | PROTECTOR | 1 | |
| 3 | NUT SPRING (4ES) | 1 | |
| 4 | PLUG BLIND | 1 | |
| 5 | BOLT WITH WASHER | 2 | |
| 7 | COVER REAR FENDER | 1 | |
| 8 | RIVET | 4 | |
| 9 | GROMMET | 2 | |
| 10 | BRACKET COVER | 1 | |
| 11 | SCREW BINDING | 2 | |
| 12 | LID | 1 | |
| 13 | SEAL 2 | 2 | |
| 14 | WASHER SPECIAL | 1 | |
| 15 | RIVET BLIND | 2 | |
| 16 | WASHER SPECIAL 2 | 1 | |
| 17 | LOCK 1 | 1 | |
| 18 | LOCK 2 | 1 | |
| 19 | SEAL | 1 | |
| 20 | STAY FENDER 1 | 1 | |
| 21 | BOLTFLANGE | 2 | |
| 22 | BOLTHEX SKT HEAD | 2 | |
| 23 | SEAL 3 | 1 | |
| 24 | SEAL 4 | 1 |
