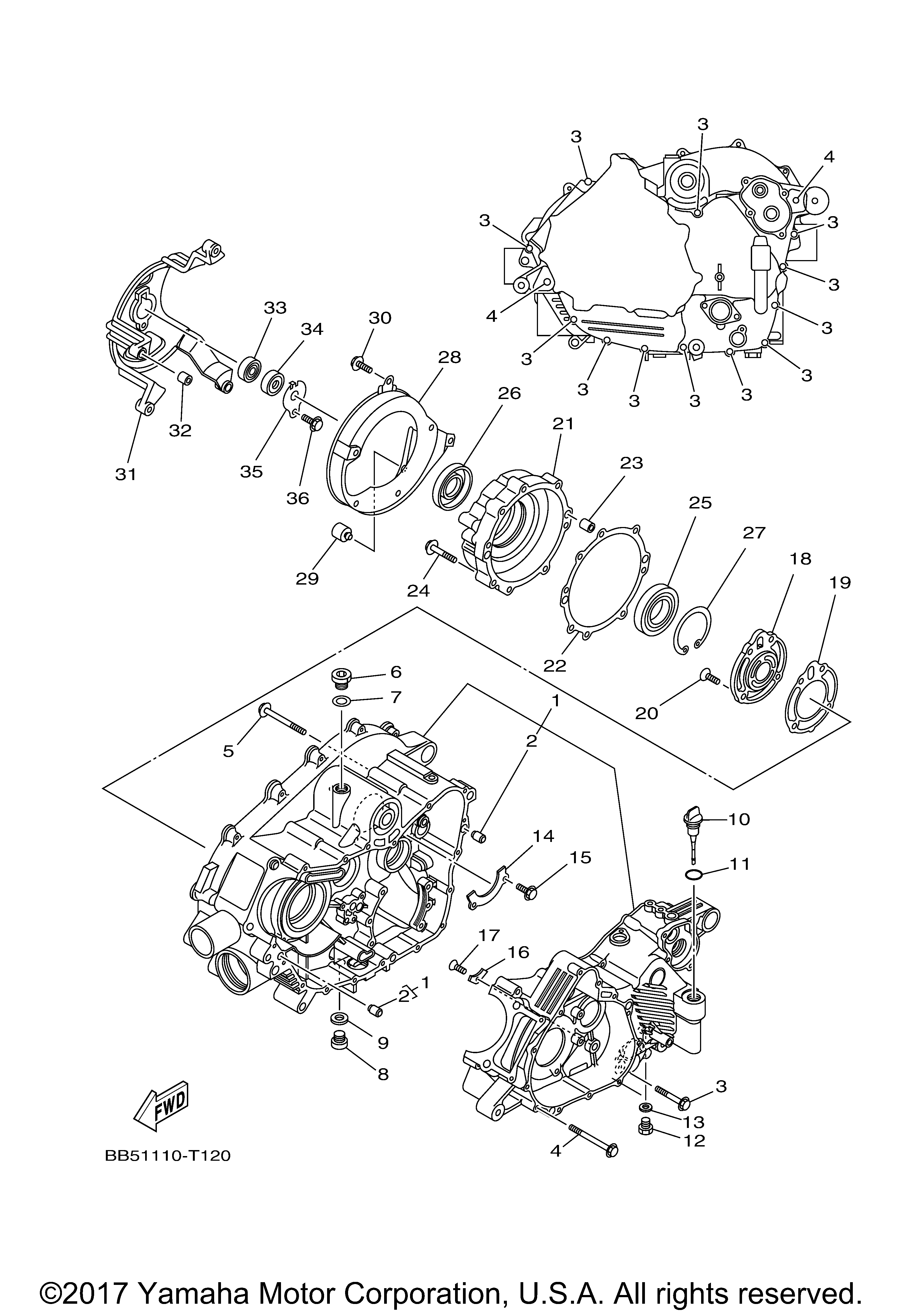

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE ASSY | 1 | |
| 2 | PINDOWEL | 2 | |
| 3 | BOLT FLANGE | 12 | |
| 4 | BOLT FLANGE | 2 | |
| 6 | PLUG STRAIGHT SCREW | 1 | |
| 7 | GASKET | 1 | |
| 8 | PLUG STRAIGHT SCREW | 1 | |
| 9 | GASKET | 1 | |
| 10 | PLUG OIL LEVEL | 1 | |
| 11 | O-RING | 1 | |
| 12 | PLUGSTRAIGHT SCRW | 1 | |
| 14 | PLATE BEARING COVER | 1 | |
| 15 | BOLT FLANGE | 2 | |
| 16 | PLATEBRNG COVER | 1 | |
| 17 | Винт плоский под звездочку | 1 | |
| 18 | COVER AIR CLEANER | 1 | |
| 19 | GASKET 1 | 1 | |
| 20 | SCREWSPEC'L SHAPE | 4 | |
| 21 | HOUSING BEARING 1 | 1 | |
| 22 | GASKET CARBURETOR C | 1 | |
| 23 | PINDOWEL | 2 | |
| 25 | BEARING | 1 | |
| 26 | OIL SEAL | 1 | |
| 27 | CIRCLIP | 1 | |
| 28 | COVER | 1 | |
| 29 | DAMPERENGINE MOUNT | 1 | |
| 30 | BOLT WITH WASHER | 6 | |
| 31 | HOUSING BEARING | 1 | |
| 32 | PIN DOWEL | 2 | |
| 33 | BEARING | 1 | |
| 34 | OIL SEAL | 1 | |
| 35 | PLATE BEARING COVER | 1 | |
| 36 | BOLT FLANGE | 1 |
