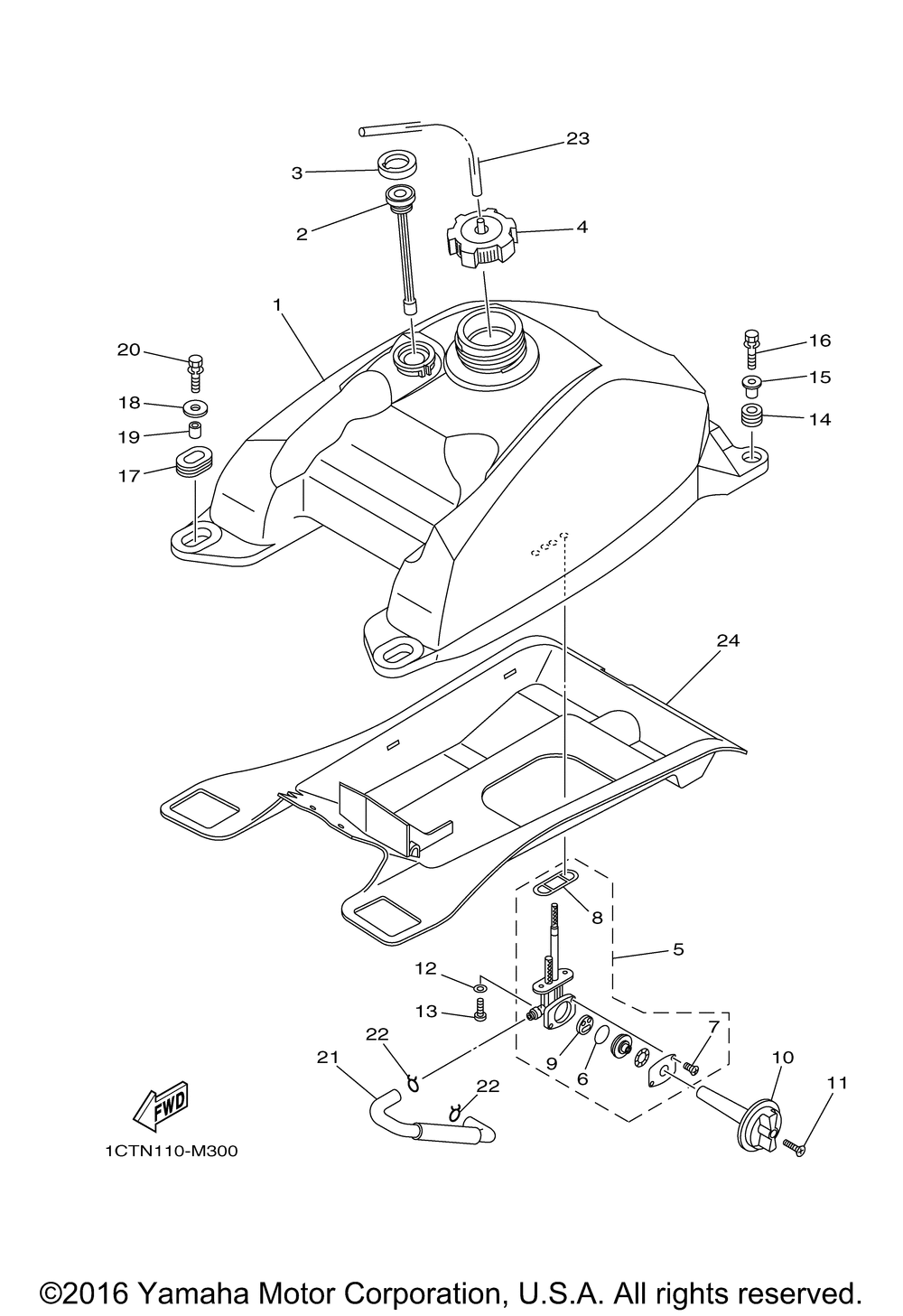

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. | 1 | |
| 2 | FUEL METER ASSY | 1 | |
| 3 | HOUSINGFUEL METER | 1 | |
| 4 | CAP ASSY | 1 | |
| 5 | FUEL COCK ASSY 1 | 1 | |
| 6 | SEAL COCK | 1 | |
| 7 | SCREW PAN HEAD | 2 | |
| 8 | O-RING | 1 | |
| 9 | VALVE PACKING | 1 | |
| 10 | LEVERCOCK | 1 | |
| 12 | WASHERPLATE | 2 | |
| 13 | SCREW | 2 | |
| 14 | GROMMET | 2 | |
| 15 | COLLAR | 2 | |
| 16 | BOLT WITH WASHER | 2 | |
| 17 | GROMMET | 2 | |
| 18 | WASHER PLATE | 2 | |
| 19 | COLLAR | 2 | |
| 21 | PIPE FUEL 1 | 1 | |
| 22 | CLIP FOR CAL | 2 | |
| 23 | HOSE (L400) | 1 | |
| 24 | DAMPER PLATE 1 | 1 |
