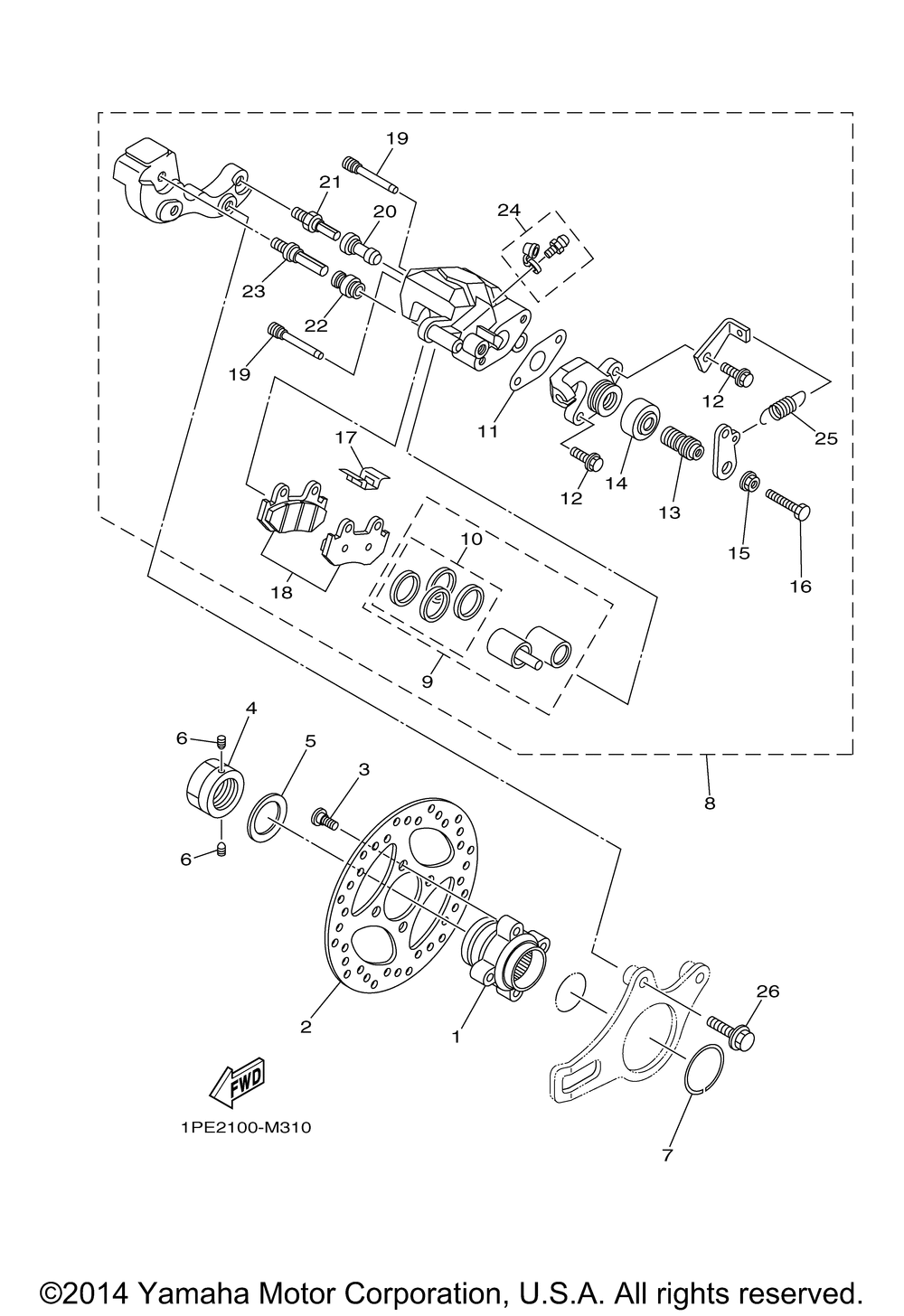

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRACKET DISC | 1 | |
| 2 | DISK REAR BRAKE 2 | 1 | |
| 3 | BOLT | 4 | |
| 4 | NUT | 1 | |
| 5 | WASHER CONICAL SPRI | 1 | |
| 6 | BOLTSET | 2 | |
| 7 | CIRCLIP | 1 | |
| 8 | CALIPER ASSY REAR 2 | 1 | |
| 9 | PISTON ASSY CALIPER | 1 | |
| 10 | CALIPER SEAL KIT | 1 | |
| 11 | RUBBER BUSHING | 1 | |
| 12 | BOLT FITTING | 2 | |
| 13 | SHAFT L | 1 | |
| 14 | BOOT | 1 | |
| 15 | NUT | 1 | |
| 16 | ADJUSTBOLT | 1 | |
| 17 | SPRING PAD | 1 | |
| 18 | BRAKE PAD KIT 2 | 1 | |
| 19 | PIN PAD | 2 | |
| 20 | BOOT 2 | 1 | |
| 21 | BOLT | 1 | |
| 22 | BOOTCALIPER | 1 | |
| 23 | BOLT | 1 | |
| 24 | BLEED SCREW KIT | 1 | |
| 25 | SPRING RETURN | 1 | |
| 26 | BOLT FLANGE | 2 |
