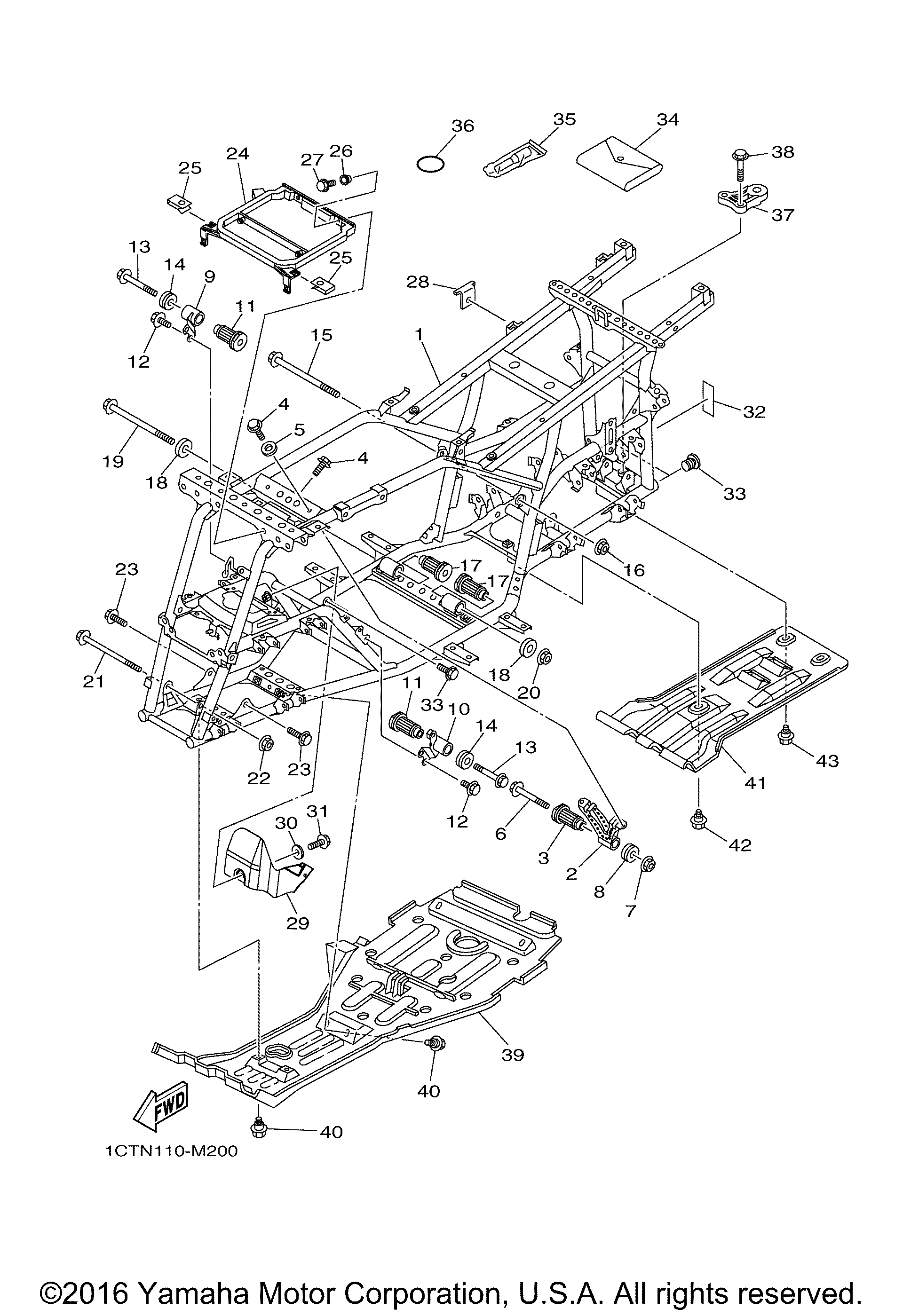

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME COMP. | 1 | |
| 2 | STAY ENGINE 2 | 1 | |
| 3 | DAMPER ENGINE MOUNT | 1 | |
| 4 | BOLT FLANGE | 3 | |
| 5 | WASHER PLATE | 2 | |
| 6 | BOLT FLANGE | 1 | |
| 7 | NUTSELF LOCKING | 1 | |
| 8 | DAMPER 2 | 1 | |
| 9 | STAY ENGINE 3 | 1 | |
| 10 | STAY ENGINE 3 | 1 | |
| 12 | BOLT FLANGE | 4 | |
| 13 | BOLT FLANGE | 2 | |
| 15 | BOLT FLANGE | 1 | |
| 18 | DAMPER | 2 | |
| 21 | BOLT FLANGE | 1 | |
| 22 | NUT SELF-LOCKING | 1 | |
| 23 | BOLTFLANGE (3GD) | 2 | |
| 24 | STAY FENDER 1 | 1 | |
| 25 | NUT SPRING (4ES) | 2 | |
| 26 | COLLAR | 2 | |
| 27 | BOLT FLANGE | 2 | |
| 28 | STAY MUFFLER 2 | 1 | |
| 29 | PROTECTOR 1 | 1 | |
| 30 | WASHER PLATE | 1 | |
| 32 | LABEL 7 ENGLISH | 1 | |
| 33 | CAP | 2 | |
| 34 | TOOL KIT | 1 | |
| 35 | GAUGEAIR | 1 | |
| 36 | O-RING | 1 | |
| 37 | HOOK | 1 | |
| 38 | BOLTFLANGE | 2 | |
| 39 | GUARDENGINE 1 | 1 | |
| 40 | BOLT | 8 | |
| 41 | GUARD COMP. | 1 | |
| 43 | BOLT | 2 |
