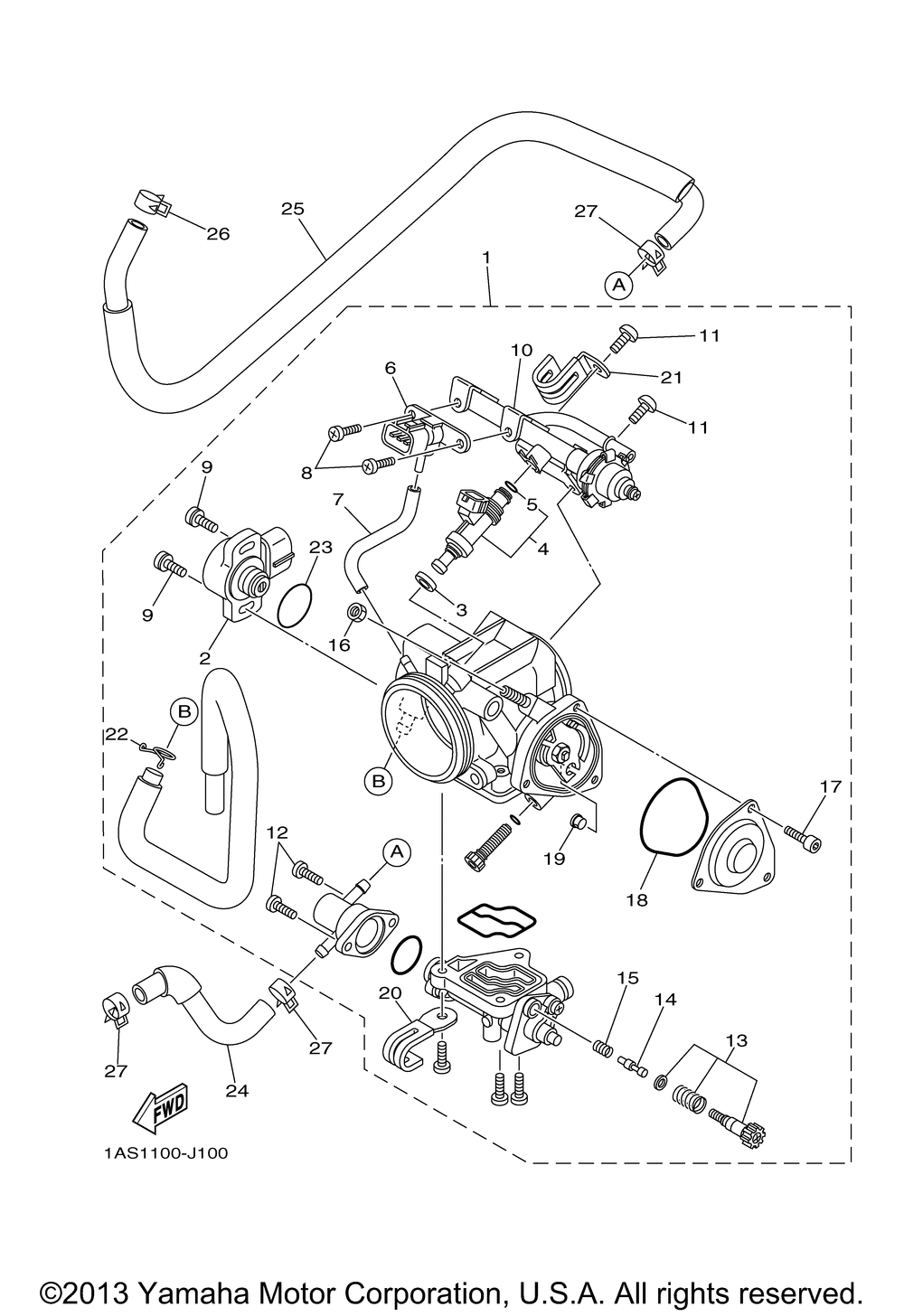

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | THROTTLE SENSOR ASSY | 1 | |
| 3 | GASKET MANIFOLD | 1 | |
| 4 | INJECTOR ASSY | 1 | |
| 5 | O-RING | 1 | |
| 6 | SENSOR PRESSURE | 1 | |
| 7 | PIPE 1 | 1 | |
| 8 | SCREW PAN HEAD | 2 | |
| 9 | SCREW | 2 | |
| 10 | DELIVERY PIPE ASSY 1 | 1 | |
| 11 | SCREWPAN | 2 | |
| 13 | ADJUST SCREW SET | 1 | |
| 14 | PLUNGER | 1 | |
| 15 | SPRING AIR ADJUSTIN | 1 | |
| 16 | NUT CABLE ADJUSTING | 1 | |
| 17 | BOLT | 3 | |
| 18 | O-RING | 1 | |
| 19 | GUIDECABLE END | 1 | |
| 20 | PLATE | 1 | |
| 21 | JET | 1 | |
| 22 | CLIP | 1 | |
| 23 | O-RING | 1 | |
| 24 | HOSE 1 | 1 | |
| 25 | HOSE 2 | 1 | |
| 26 | CLIPSCISSOR | 1 |
