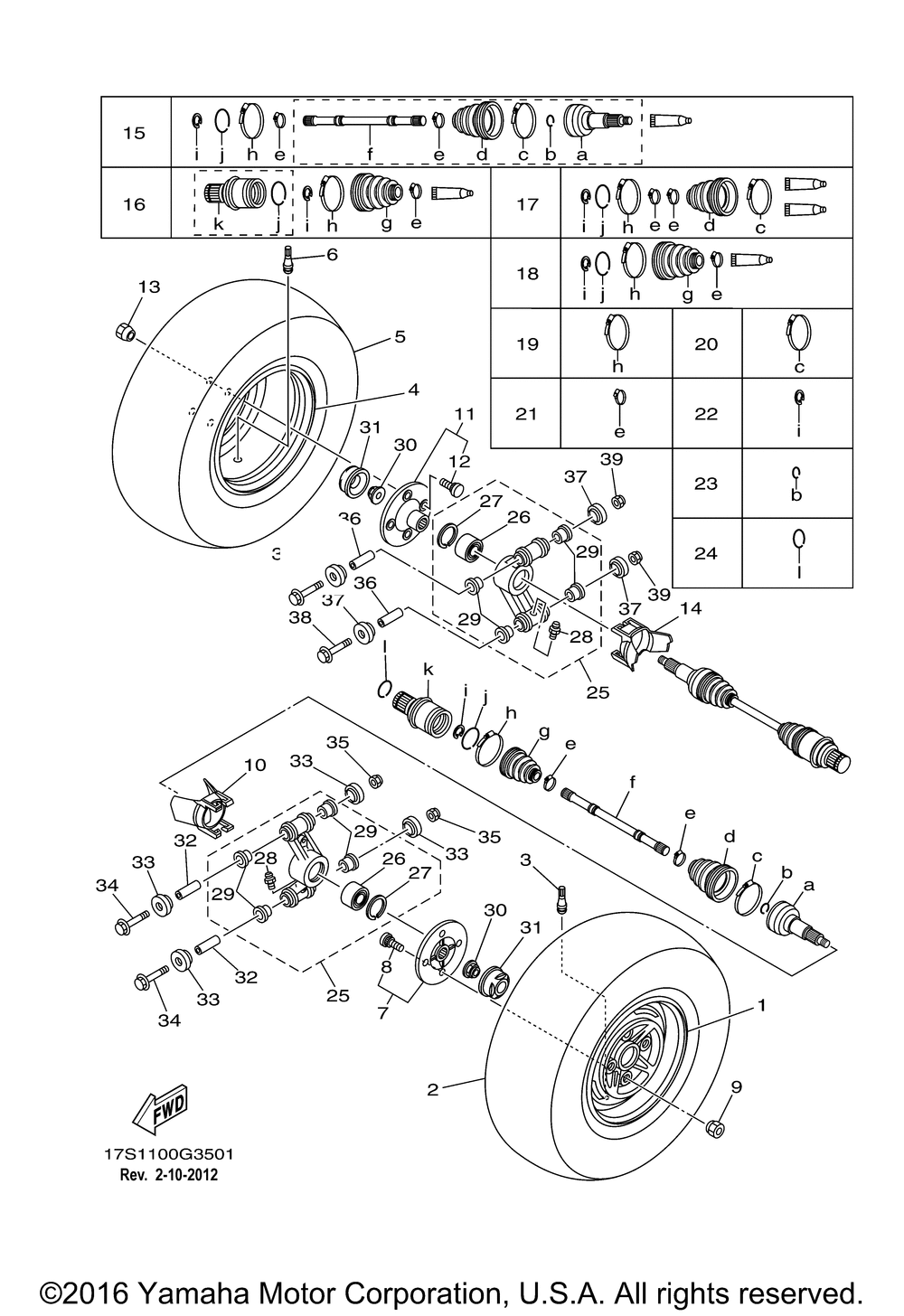

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR RIM (BLACK) 12 | 1 | |
| 2 | AT25 X 10.00 -12 (AT25X10-12 M980) CHENG SHIN | 1 | |
| 3 | VALVE RIM (TR413) MAXXIS | 1 | |
| 7 | HUB SUB-ASSY | 1 | |
| 8 | BOLT SERRATION | 4 | |
| 9 | NUT | 4 | |
| 10 | GUARD MUD | 1 | |
| 15 | BALL JOINT SET | 2 | |
| 16 | DOUBLE OFF SET JOINT | 2 | |
| 17 | BOOT SET (BALL JOINT (BALL JOINT) | 2 | |
| 18 | BOOT SET(DOUBLE OFFS (DOUBLE OFFSET JOINT) | 2 | |
| 19 | BOOT BANDDBL OFFSET (DOUBLE OFFSETJOINT) | 2 | |
| 20 | BOOT BAND (BALL JOIN (BALL JOINT) | 2 | |
| 21 | BOOT BAND (SMALL) (SMALL) | 2 | |
| 22 | SNAP RING | 2 | |
| 23 | CIRCLIP | 2 | |
| 24 | CLIP SPRING | 2 | |
| 25 | REAR KNUCKLE ASSY. | 2 | |
| 26 | BEARING | 1 | |
| 27 | . .CIRCLIP | 1 | |
| 28 | NIPPLEGREASE | 2 | |
| 29 | BUSH SOLID | 4 | |
| 30 | NUT | 2 | |
| 31 | CAP WHEEL | 2 | |
| 32 | SPACER | 2 | |
| 33 | COVER THRUST 1 | 4 | |
| 34 | BOLT FLANGE | 2 | |
| 35 | NUT SELF-LOCKING | 2 |
