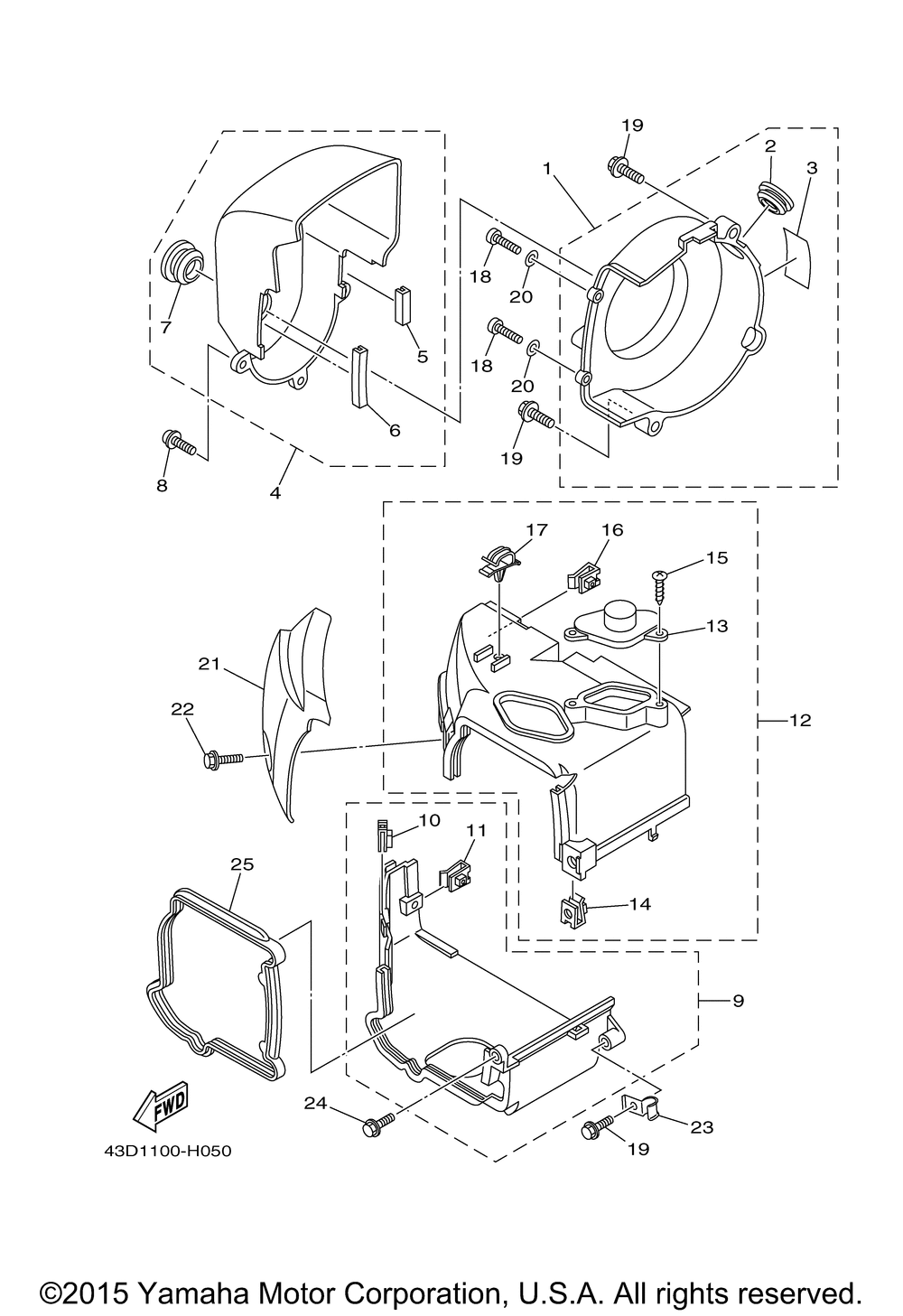

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | AIR SHROUD ASSY | 1 | |
| 2 | GROMMET SHROUD 1 | 1 | |
| 3 | LABEL | 1 | |
| 4 | DUCT INLET COMP. | 1 | |
| 5 | DAMPER AIR SHROUD 2 | 1 | |
| 6 | DAMPER AIR SHROUD 3 | 1 | |
| 7 | GROMMET SHROUD 2 | 1 | |
| 8 | SCREWWITH WASHER | 3 | |
| 9 | AIR SHROUD ASSY | 1 | |
| 10 | NUT SPRING 1 | 1 | |
| 11 | NUT SPRING 2 | 1 | |
| 12 | AIR SHROUD ASSY.2 | 1 | |
| 13 | COVER 1 | 1 | |
| 15 | SCREW | 2 | |
| 17 | CLAMP 2 | 1 | |
| 18 | SCREW PAN HEAD | 2 | |
| 19 | BOLTFLANGE(6U1) | 3 | |
| 20 | WASHER | 2 | |
| 21 | COVER 2 | 1 | |
| 22 | BOLTFLANGE | 1 | |
| 23 | CLAMP 1 | 1 | |
| 24 | BOLT FLANGE | 1 | |
| 25 | SEAL 1 | 1 |
