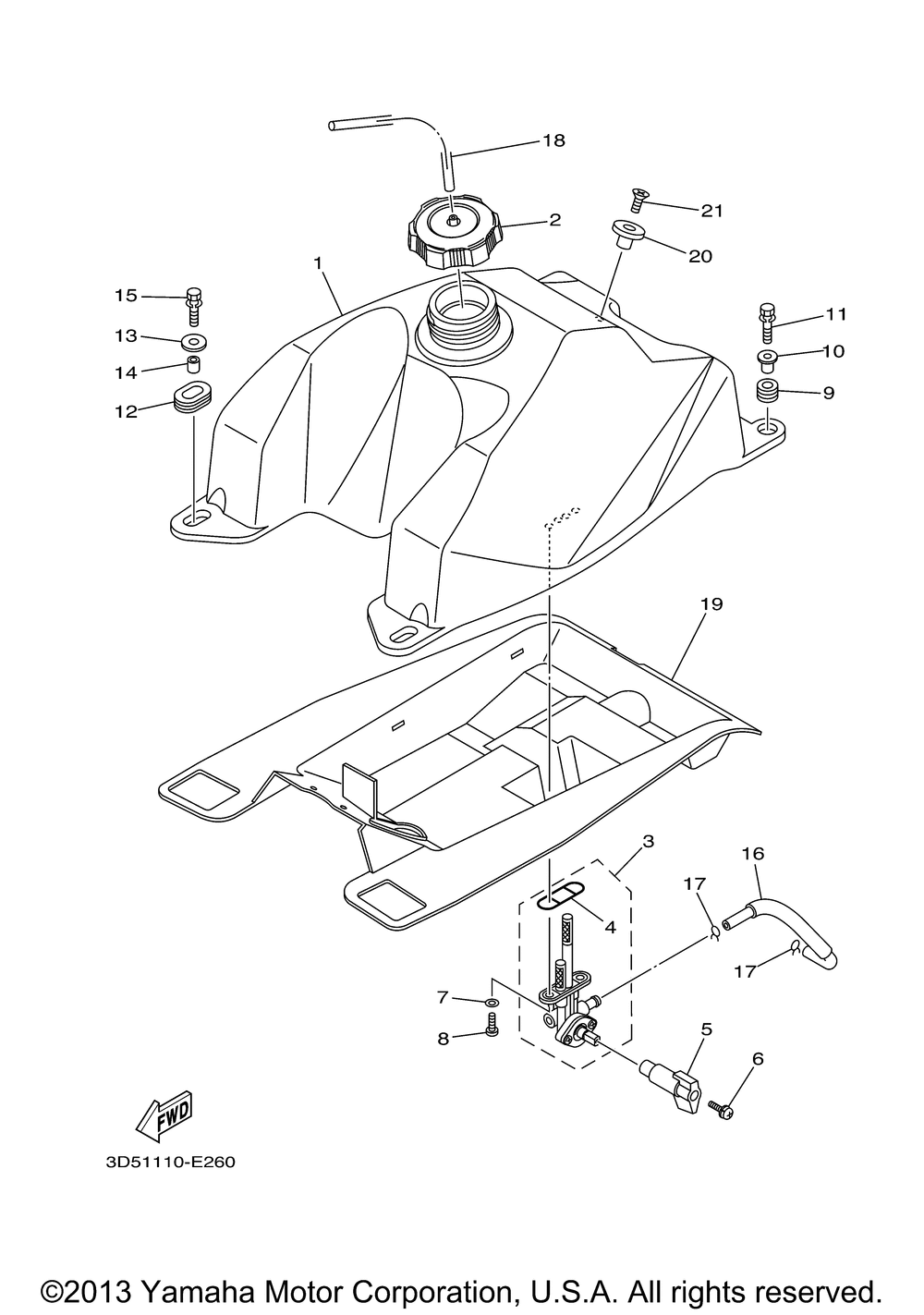

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. | 1 | |
| 2 | CAP ASSY | 1 | |
| 3 | FUEL COCK ASSY 1 | 1 | |
| 4 | GASKET | 1 | |
| 5 | LEVER COCK | 1 | |
| 6 | SCREW LEVER FITTING | 1 | |
| 7 | WASHERPLATE | 2 | |
| 8 | SCREW | 2 | |
| 9 | GROMMET | 2 | |
| 10 | COLLAR | 2 | |
| 11 | BOLT WITH WASHER | 2 | |
| 12 | GROMMET | 2 | |
| 13 | WASHER PLATE | 2 | |
| 14 | COLLAR | 2 | |
| 16 | PIPE FUEL 1 | 1 | |
| 17 | CLIP FOR CAL | 2 | |
| 18 | HOSE (L400) | 1 | |
| 19 | DAMPER PLATE 1 | 1 | |
| 20 | BRACKETSEAT | 1 | |
| 21 | )SCREW CROSSRECESS | 1 |
