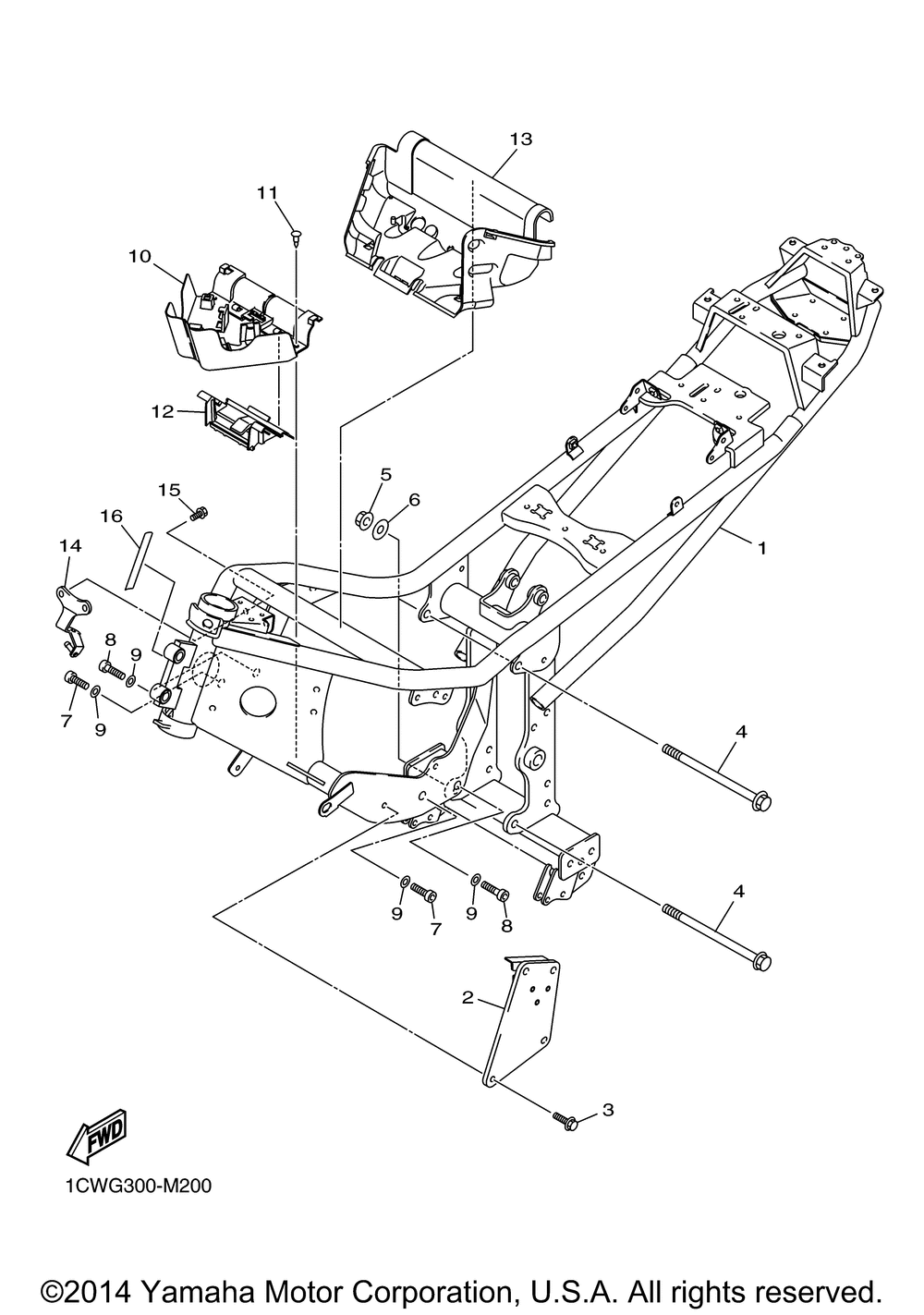

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME COMP. | 1 | |
| 2 | GUSSET | 1 | |
| 3 | BOLTFLANGE(8AB) | 4 | |
| 4 | BOLTWASHER BASED | 2 | |
| 5 | NUTSPEC'L SHAPE | 2 | |
| 6 | WASHER PLATE | 2 | |
| 7 | BOLT | 2 | |
| 8 | BOLT | 2 | |
| 9 | WASHER PLATE | 4 | |
| 10 | COVER 3 | 1 | |
| 11 | RIVET | 2 | |
| 12 | COVER 4 | 1 | |
| 13 | COVER 5 | 1 | |
| 14 | BRACKET | 1 | |
| 15 | BOLTFLANGE | 2 | |
| 16 | PROTECTOR | 1 |
