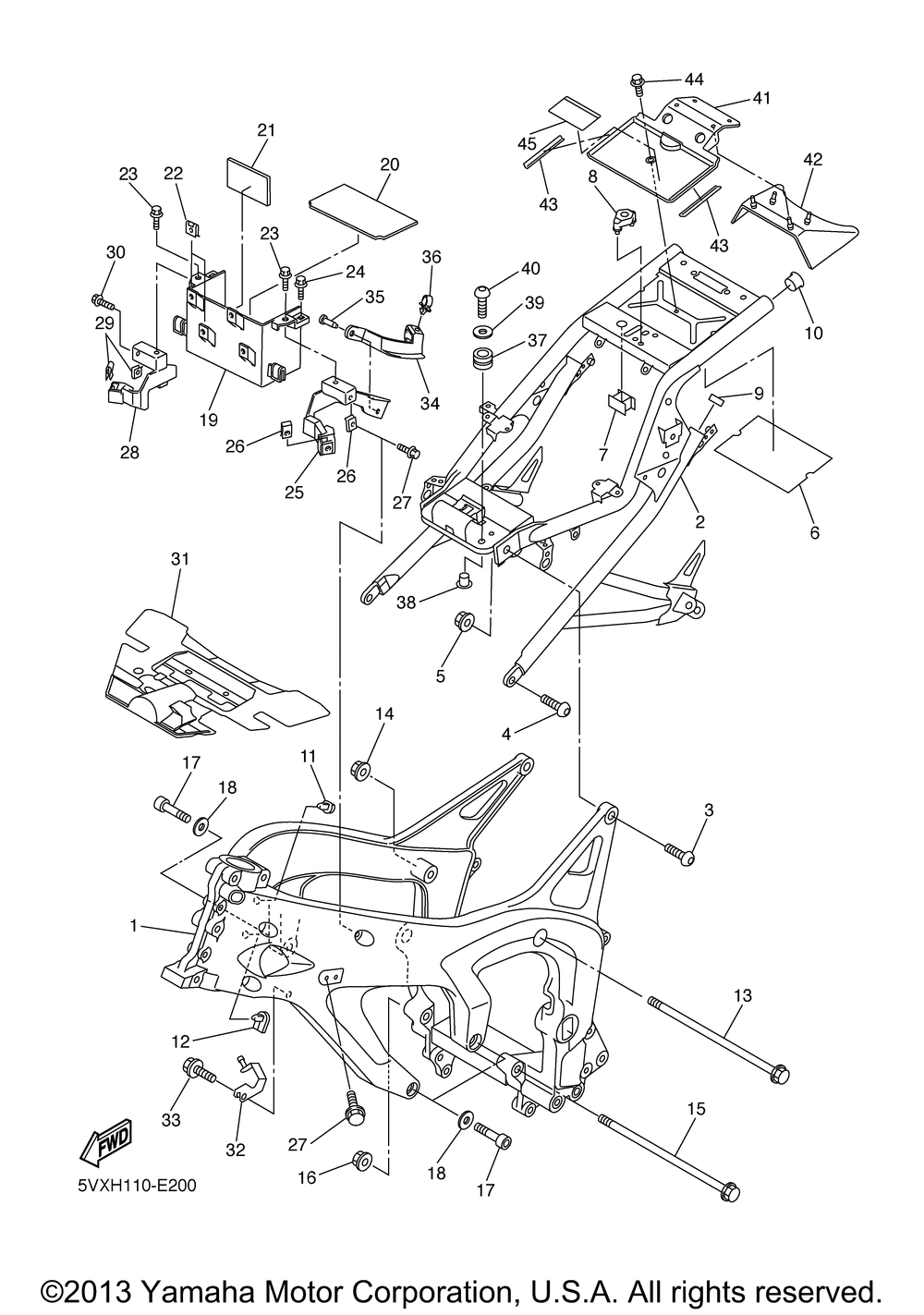

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME COMP. | 1 | |
| 2 | REAR FRAME COMP. | 1 | |
| 3 | SCREW | 2 | |
| 4 | SCREW | 2 | |
| 5 | NUTSELF-LOCKING | 2 | |
| 6 | SEAL | 1 | |
| 7 | SEAL | 1 | |
| 8 | DAMPER STOPPER | 1 | |
| 9 | PLUG | 2 | |
| 10 | PLUGSPEC'L SHAPE | 1 | |
| 11 | PLUG BLIND | 1 | |
| 12 | PLUG BLIND | 1 | |
| 13 | BOLT FLANGE | 1 | |
| 14 | NUT SELF-LOCKING | 1 | |
| 15 | BOLT FLANGE | 1 | |
| 17 | BOLT | 3 | |
| 18 | WASHER PLATE | 3 | |
| 19 | BOX BATTERY | 1 | |
| 20 | SEAT BATTERY | 1 | |
| 21 | DAMPER PLATE 1 | 1 | |
| 22 | NUT SPRING (4ES) | 2 | |
| 23 | BOLT | 2 | |
| 24 | BOLTFLANGE | 2 | |
| 25 | BRACKET | 1 | |
| 26 | NUT SPRING | 2 | |
| 27 | BOLT FLANGE | 2 | |
| 28 | BRACKET 2 | 1 | |
| 31 | COVER 2 | 1 | |
| 32 | BRACKET | 1 | |
| 33 | BOLTFLANGE (4MY) | 1 | |
| 34 | COVER | 1 | |
| 35 | RIVETSPEC'L SHAPE (5 per pack) | 2 | |
| 36 | CLAMP | 1 | |
| 37 | GROMMET | 2 | |
| 38 | COLLAR | 2 | |
| 39 | WASHERPLATE | 2 | |
| 40 | BOLTBUTTON | 2 | |
| 41 | COVER | 1 | |
| 42 | COVER 2 | 1 | |
| 43 | SEAL | 2 | |
| 44 | BOLT | 1 | |
| 45 | LABEL WARNING | 1 |
