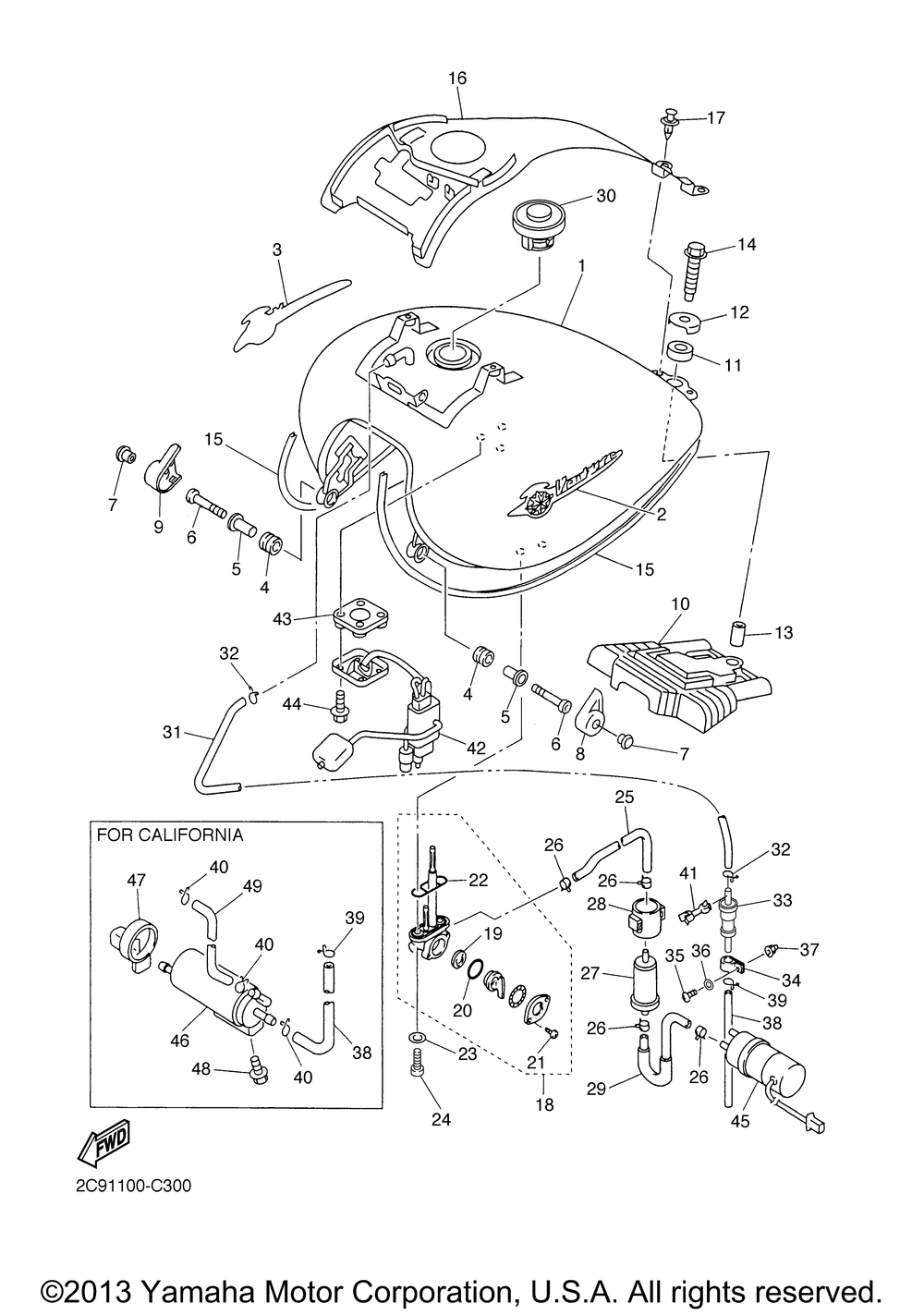

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. SMX | 1 | |
| 2 | EMBLEM | 1 | |
| 3 | EMBLEM | 1 | |
| 4 | GROMMET | 2 | |
| 5 | COLLAR | 2 | |
| 6 | BOLT (4MY) | 2 | |
| 7 | PLUG | 2 | |
| 8 | COVER SIDE 1 | 1 | |
| 9 | COVER SIDE 2 | 1 | |
| 10 | DAMPER LOCATING 2 | 1 | |
| 11 | DAMPER LOCATING 3 | 1 | |
| 12 | WASHERSPECIAL | 1 | |
| 13 | COLLAR | 1 | |
| 14 | BOLT | 1 | |
| 15 | MOLD FUEL TANK | 2 | |
| 16 | COVER TOP | 1 | |
| 17 | RIVETSPEC'L SHAPE | 2 | |
| 18 | FUEL COCK ASSY 1 | 1 | |
| 19 | VALVE PACKING | 1 | |
| 20 | SEAL COCK | 1 | |
| 21 | SCREWPAN HEAD (5 per pack) | 2 | |
| 22 | O-RING | 1 | |
| 23 | WASHERPLATE | 2 | |
| 24 | SCREWSPEC'L SHAPE | 2 | |
| 25 | PIPE FUEL 1 | 1 | |
| 26 | CLIPSCISSOR | 4 | |
| 27 | FILTER ASSY (FUEL) | 1 | |
| 28 | BRACKET FILTER | 1 | |
| 29 | PIPE 2 | 1 | |
| 30 | CAP ASSY | 1 | |
| 31 | PIPE 10 | 1 | |
| 32 | CLIP | 2 | |
| 33 | ROLL OVER VALVE ASSY | 1 | |
| 34 | CLAMP | 1 | |
| 36 | WASHER (1RW) | 1 | |
| 37 | NUTCROWN | 1 | |
| 38 | HOSE (L280) | 1 | |
| 39 | CLIP | 1 | |
| 41 | CLAMP | 2 | |
| 42 | SENDER UNIT ASSY FU | 1 | |
| 43 | GASKETSENDER UNIT | 1 | |
| 44 | BOLTWITH WASHER | 4 | |
| 45 | FUEL PUMP COMP. | 1 | |
| 46 | CANISTER ASSY | 1 | |
| 47 | COVERCANISTER FOR CALIFORNIA | 1 | |
| 48 | BOLTFLANGE | 2 | |
| 49 | HOSE (L590) | 1 |
