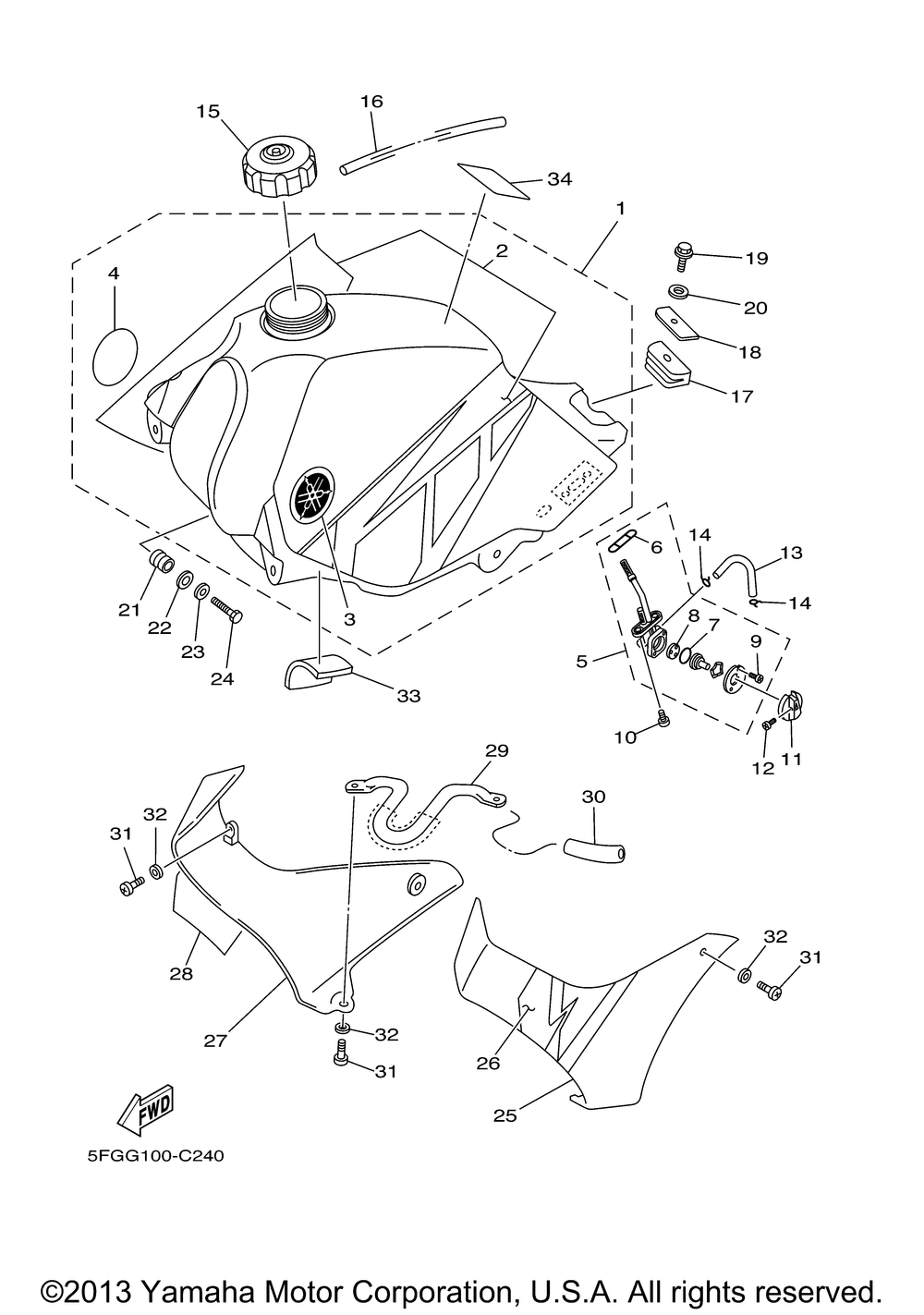

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK ASSY | 1 | |
| 2 | GRAPHIC SET | 1 | |
| 3 | MARK 1 | 1 | |
| 4 | MARK 2 | 1 | |
| 5 | FUEL COCK ASSY 1 | 1 | |
| 6 | O-RING | 1 | |
| 7 | SEAL COCK | 1 | |
| 8 | VALVE PACKING | 1 | |
| 9 | SCREWPAN HEAD (5 per pack) | 2 | |
| 10 | SCREWSPEC'L SHAPE | 2 | |
| 11 | LEVER COCK | 1 | |
| 12 | SCREW PAN | 1 | |
| 13 | HOSE | 1 | |
| 14 | clip | 2 | |
| 15 | CAP ASY | 1 | |
| 16 | HOSE | 1 | |
| 17 | DAMPER LOCATING 2 | 1 | |
| 18 | WASHER SPECIAL | 1 | |
| 19 | BOLT HEXAGON | 1 | |
| 20 | WASHER (5 per pack) | 1 | |
| 21 | GROMMET | 2 | |
| 22 | WASHER SPECIAL | 2 | |
| 24 | BOLT | 2 | |
| 25 | SCOOP AIR 1 | 1 | |
| 26 | GRAPHIC 3 | 1 | |
| 27 | SCOOP AIR 2 | 1 | |
| 28 | GRAPHIC 4 | 1 | |
| 30 | DAMPER 2 | 1 | |
| 31 | BOLT SOCKET | 6 | |
| 32 | WASHER (5 per pack) | 4 | |
| 33 | DAMPER PLATE 1 | 1 | |
| 34 | PLATE EPA 3(CALIFOR (CALIFORNIA) | 1 |
