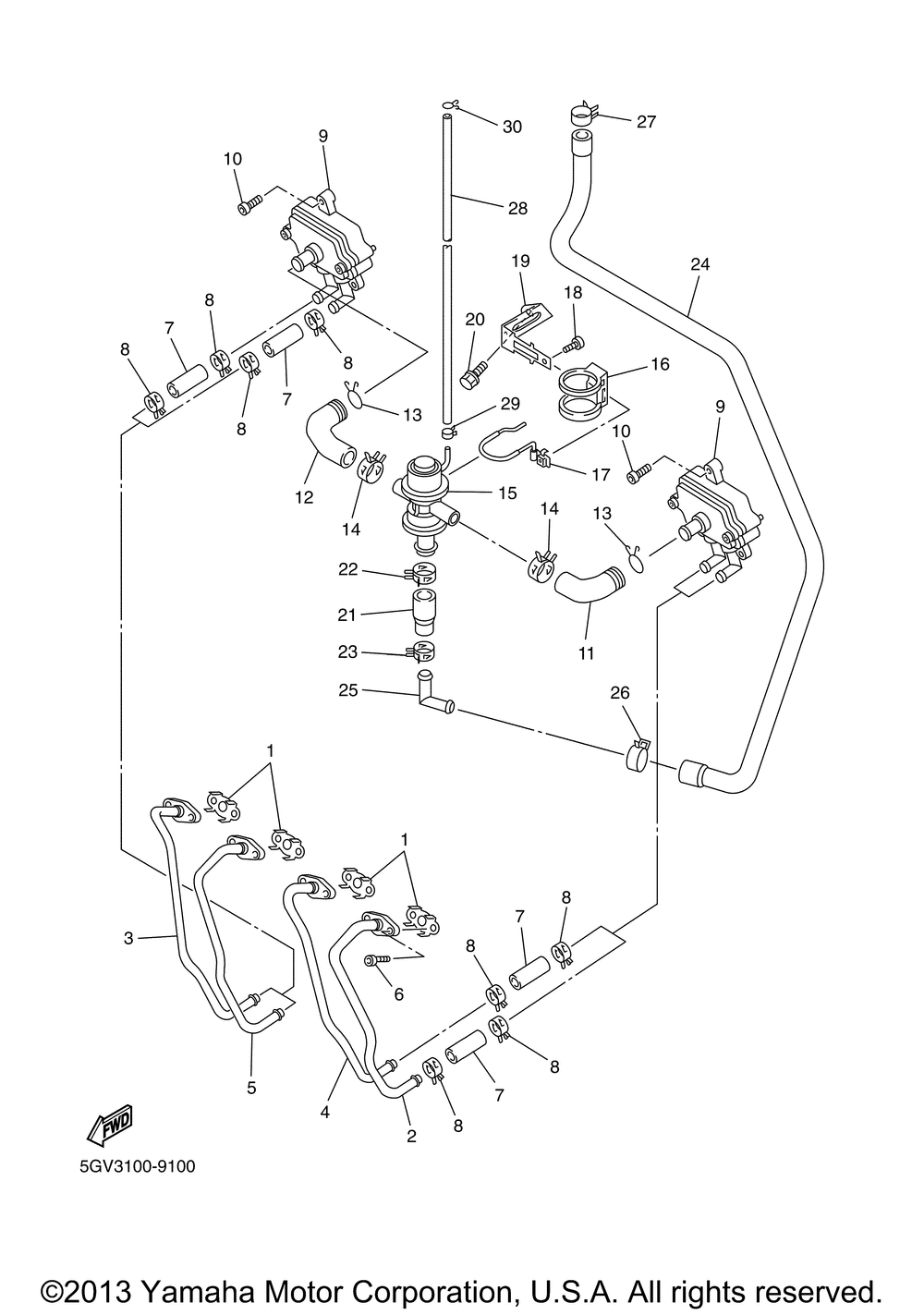

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET MUFFLER | 4 | |
| 2 | PIPE 1 | 1 | |
| 3 | PIPE 3 | 1 | |
| 4 | PIPE 4 | 1 | |
| 5 | PIPE 5 | 1 | |
| 6 | BOLT | 8 | |
| 7 | HOSE BEND 1 | 4 | |
| 8 | CLIPSCISSOR | 8 | |
| 9 | REED VALVE ASSY | 2 | |
| 10 | BOLT (4FL) | 6 | |
| 11 | HOSE BEND 2 | 1 | |
| 12 | HOSE BEND 3 | 1 | |
| 13 | CLIPSCISSOR | 2 | |
| 14 | CLIPSCISSOR | 2 | |
| 15 | AIR CUT VALVE ASS' | 1 | |
| 16 | DAMPER | 1 | |
| 17 | BRACKET | 1 | |
| 18 | SCREW PAN HEAD | 1 | |
| 19 | STAY | 1 | |
| 20 | BOLTFLANGE | 1 | |
| 21 | HOSEBEND 5 | 1 | |
| 22 | CLIPSCISSOR | 1 | |
| 23 | CLIPSCISSOR | 1 | |
| 24 | HOSE BEND 4 | 1 | |
| 25 | PIPE 2 | 1 | |
| 27 | CLIP | 1 | |
| 28 | HOSE | 1 | |
| 29 | CLIPSCISSOR | 1 | |
| 30 | CLIPSCISSOR | 1 |
