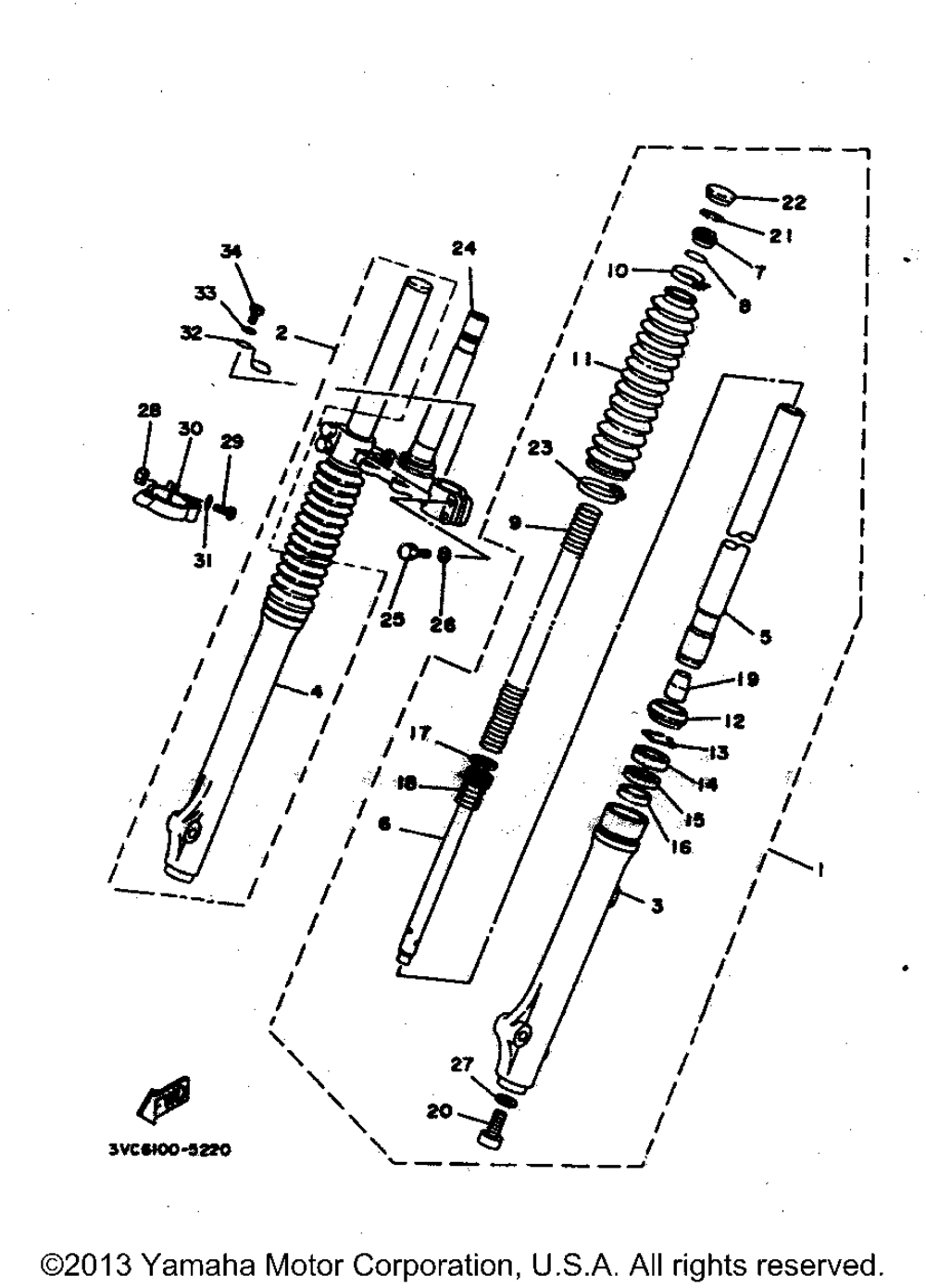

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FT FORK ASSYLT (L.H) | 1 | |
| 2 | FT FORK ASSYRT (R.H) | 1 | |
| 3 | OUTER TUBE LT (LEFT) | 1 | |
| 4 | OUTER TUBE RT (RIGHT) | 1 | |
| 5 | INNER TUBE | 2 | |
| 6 | CYLINDER COMP | 2 | |
| 7 | CAP | 2 | |
| 8 | O-RING | 2 | |
| 9 | SPRING | 2 | |
| 10 | BAND | 2 | |
| 11 | BOOT | 2 | |
| 12 | PROTECTORSEAL | 2 | |
| 13 | CLIPOIL SEAL | 2 | |
| 14 | OIL SEAL | 2 | |
| 15 | O-RING | 2 | |
| 16 | METAL SLIDE RING | 2 | |
| 17 | RINGPISTON FRTFRK | 2 | |
| 18 | SPRING | 2 | |
| 19 | VALVEOIL PRESSURE | 2 | |
| 20 | BOLTHEX SCKT HEAD | 2 | |
| 21 | CIRCLIP | 2 | |
| 22 | CAP | 2 | |
| 23 | CLAMPHOSE | 2 | |
| 25 | BOLT (661) | 2 | |
| 26 | WASHER (JN5) | 2 | |
| 27 | GASKET (90201-10801-00) | 2 | |
| 28 | NUT (5 per pack) | 1 | |
| 29 | SCREWPAN HEAD | 1 | |
| 31 | WASHER (5 per pack) | 1 | |
| 32 | GUIDECABLE | 1 | |
| 33 | WASHERSPRING (5 per pack) | 1 | |
| 34 | SCREWPAN | 1 |
