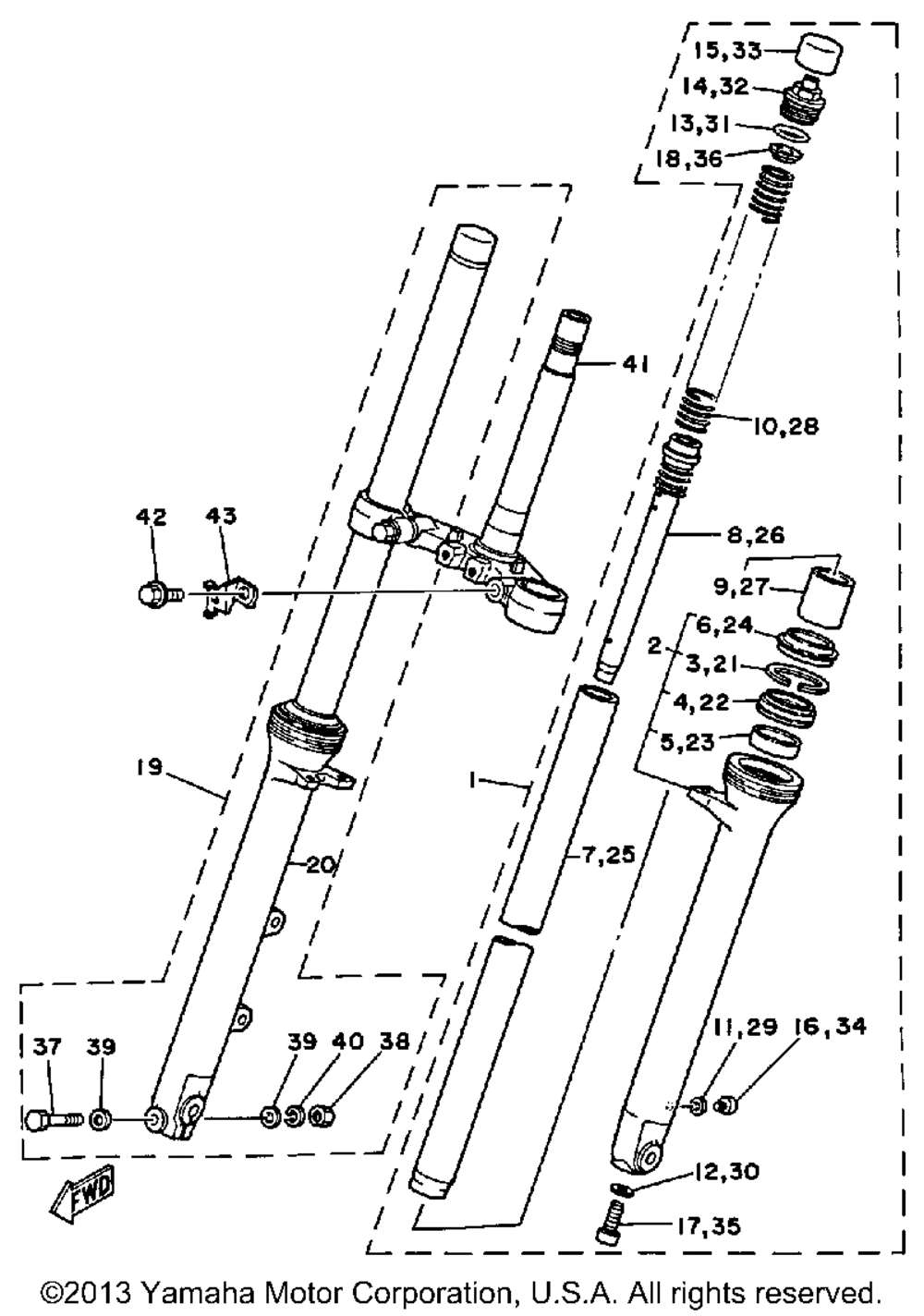

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 3 | RINGSNAP | 1 | |
| 4 | OIL SEAL | 1 | |
| 5 | METALSLIDE 1 | 1 | |
| 6 | SEAL DUST | 1 | |
| 7 | INNER TUBE 1 CHROME-PLATED | 1 | |
| 9 | SPINDLETAPER | 1 | |
| 11 | GASKETDRAIN PLUG | 1 | |
| 12 | GASKET (KYB) | 1 | |
| 13 | GASKET | 1 | |
| 14 | BOLTCAP | 1 | |
| 15 | CAPFRONT FORK | 1 | |
| 16 | SCREWPAN HEAD | 1 | |
| 17 | BOLT HEXAGON SOCKET | 1 | |
| 18 | SEATSPRING UPPER | 1 | |
| 20 | TUBE OUTER 2 | 1 | |
| 37 | BOLTAXLE HOLDER | 1 | |
| 38 | NUT (6L2) | 1 | |
| 39 | WASHER (5 per pack) | 2 | |
| 40 | WASHERSPRING | 1 | |
| 41 | UNDER BRACKET | 1 |
