Can-Am Commander - Commander MAX Commander - Commander MAX 09- Cab Interior - MAX

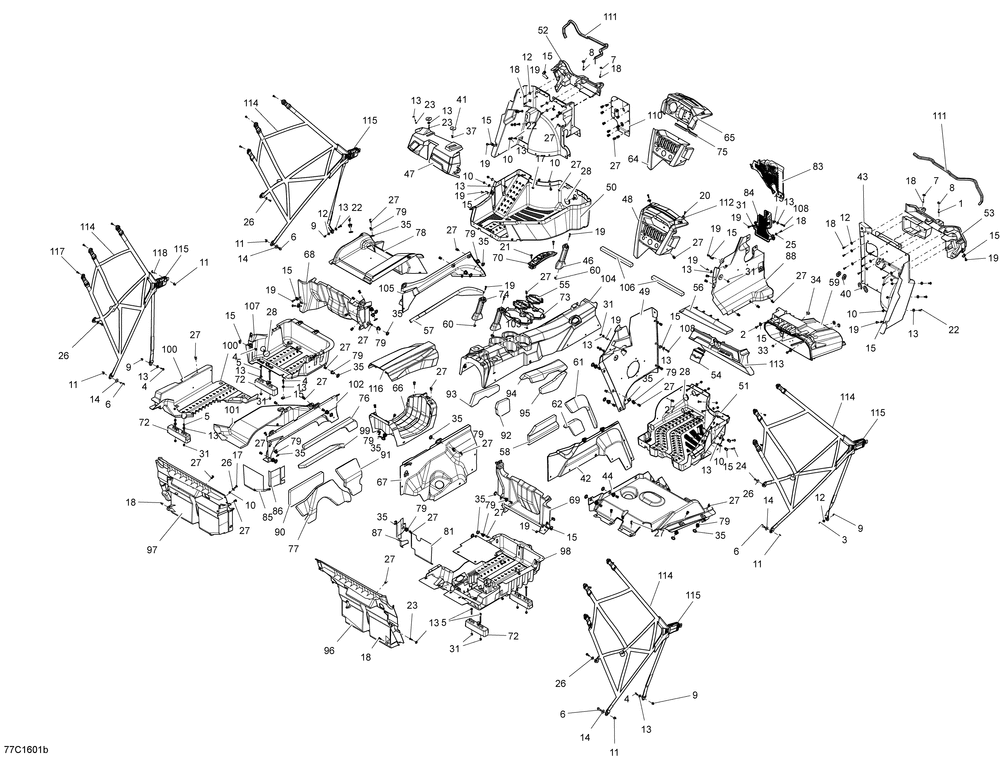

09- Cab Interior - MAX
№ Наименование Примечание Кол-во
1 HEX. SCREW M6 X 25 (10.000 per pack) 2
2 Hex. Flanged Screw M6 X 20 2
3 Hex. Flanged Screw M6 X 20 1
4 Hex. Flanged Screw M6 X 20 4
5 HEX. FLANGE SCREW M6 X 70 12
6 Hex. Flanged Screw M8 X 25 4
7 Flat Washer 2
8 FLAT WASHER (10.000 per pack) 2
9 Hex. Flanged Elastic Nut M6 4
10 Hex. Elastic Flanged Nut M6 20
11 Hex. Flanged Elastic Nut M8 0
12 Flat Washer 6 mm 17
13 Flat Washer, Stainless 0
14 Flat Washer 8 mm 4
15 Panel Nut M6 X 1.0 0
17 TORX SCREW M6 X 20 0
18 Torx Screw K50 X 16 0
19 Torx Screw M6 X 20 0
20 Torx Screw M5 X 20 2
21 Torx Screw M6 X 25 2
22 Torx Screw M6 X 25 8
23 Torx Screw Truss Head K50X20 T20 3
24 Torx Truss Screw M6 X 25 4
25 WASHER M5 (10.000 per pack) 1
26 FLAT WASHER (3.000 per pack) 0
27 Tuflok Plastic Rivet 0
28 RUBBER COVER 4
29 UPPER SEAL 1
30 BOTTOM SEAL 1
31 INSERT Except XMR 0
33 Rubber Bumper 1
34 CAP (10.000 per pack) 3
35 RONDELLE *WASHER (25.000 per pack) 0
36 RONDELLE *WASHER (25.000 per pack) 2
37 Edge Clip 1
38 RONDELLE *GROMMET 1
39 GROMMET 4
40 Oblong Grommet 4
41 SUPPORT PLATE 2
42 RH SIDE CONSOLE 1
43 RH FRONT FLOOR 1
44 RH UNDER SEAT PLATE 1
46 PASSENGER HANDLE 1
47 DASHBOARD ASS Y 1
48 LOWER CENTRAL DASHBOARD ASS Y 1
49 CONSOLE LAT. *SIDE DASH Except Package LTD 1
50 LH LOWER FLOOR 1
51 RH LOWER FLOOR 1
52 LH FLOOR SUPPORT 1
53 RH FLOOR SUPPORT 1
54 LATCH 1
55 CUP RETAINER 4
56 TRIM GLOVE BOX 1
57 LH LOWER LATERAL CONSOLE FOAM 1
58 RH LATERAL CONSOLE FOAM 1
59 STORAGE BIN Package STD - DPS 1
60 CONNECTOR TUBE 3
61 RH LATERAL CONSOLE FOAM 1
62 RH LATERAL CONSOLE FOAM 1
63 TRIM GLOVE BOX 1
64 LOWER CENTRAL DASHBOARD ASS Y Package LTD 1
65 GAUGE SUPPORT Package LTD 1
66 REAR CENTRAL CONSOLE 1
67 RH REAR CONSOLE PANEL 1
68 LH REAR UPPER FLOOR COVER 1
69 SEAT COVER 1
70 SHIFT LEVER INDICATOR 1
72 SUPPORT PLATE 6
73 CUP HOLDER 1
74 POIGNEE *HANDLE 2
75 PROTECTION TRIM 0
76 ACOUSTIC FOAM 1
77 ACOUSTIC FOAM 1
78 UNDER SEAT COVER 1
79 INSERT Except Package LTD 0
80 BATTERY COVER 1
81 HEAT SHIELD 1
82 LH FRONT UPPER FLOOR 1
83 GRILL 1
84 GRILL 1
85 HEAT SHIELD 1
86 HEAT SHIELD 1
87 HEAT SHIELD 1
88 FRONT SIDE DASH PANEL 1
90 ACOUSTIC FOAM 1
91 ACOUSTIC FOAM 1
92 ACOUSTIC FOAM 1
93 ACOUSTIC FOAM 1
94 ACOUSTIC FOAM 1
95 ACOUSTIC FOAM 1
96 RH REAR DEFLECTOR 1
97 LH REAR DEFLECTOR 1
98 RH LOWER REAR FLOOR 1
99 MOUSSE *FOAM 1
100 PLAQUE *UNDER COVER 1
101 CAPUCHON PLANCH*REAR FLOOR CAP 1
102 CONSOLE LAT. *REAR LH CONSOL 1
103 Push Nut 0
104 FRONT CONSOLE KIT 1
105 LH SIDE CONSOLE 1
106 ANNEAU ETANCHE *SEAL-TRAY 0
107 LH MID FLOOR 1
108 Torx Truss Screw M6 X 30 2
110 DEFLECTOR Except Package STD 1
111 NEOPRENE SEAL (8.000 per pack) 0
112 PANEL NUT M5 X 0.8 (10.000 per pack) 2
113 LUGGAGE COVER KIT 1
114 FILET *SAFETY NET 1
114 FILET *SAFETY NET 1
114 FILET *SAFETY NET 1
114 FILET *SAFETY NET 1
115 BUCKLE 80508202-00-AA 1
116 REAR CONSOLE COVER KIT 1
117 Torx Screw M5 X 14 14
118 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 2
119 INSERT SUPPORT 1
