Can-Am Maverick MAX 1000_STD_XRS-DPS Maverick MAX 1000_STD_XRS-DPS 09- Cab Interior Dash And Console_77C1509c

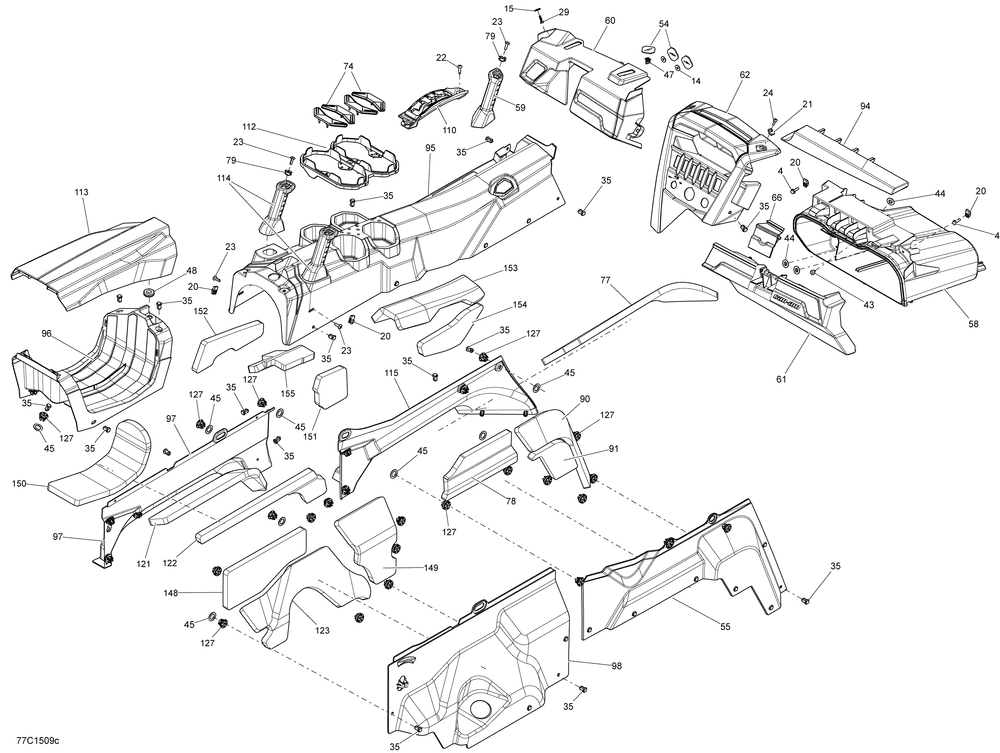

09- Cab Interior Dash And Console_77C1509c
№ Наименование Примечание Кол-во
4 Hex. Flanged Screw M6 X 20 2
14 Flat Washer 6 mm 0
15 Flat Washer, Stainless 0
20 Panel Nut M6 X 1.0 2
21 PANEL NUT M5 X 0.8 (10.000 per pack) 2
22 Torx Screw M6 X 25 2
23 Torx Screw M6 X 20 2
24 Torx Screw M5 X 20 2
29 TRUSS HEAD TORX SCREW K50 X 20 1
35 Tuflok Plastic Rivet 0
43 Rubber Bumper 1
44 CAP (10.000 per pack) 3
45 RONDELLE *WASHER (25.000 per pack) 0
47 Edge Clip 0
48 RONDELLE *GROMMET 1
54 SUPPORT PLATE 0
55 RH SIDE CONSOLE 1
58 STORAGE BIN Package STD - DPS 1
59 PASSENGER HANDLE 1
60 DASHBOARD ASS Y 1
61 LUGGAGE COVER KIT 1
62 CENTRAL DASHBOARD ASS Y Except Package LTD 1
66 LATCH 1
74 CUP RETAINER 4
77 LH LOWER LATERAL CONSOLE FOAM 1
78 RH LATERAL CONSOLE FOAM 1
79 CONNECTOR TUBE 3
90 RH LATERAL CONSOLE FOAM 1
91 RH LATERAL CONSOLE FOAM 1
94 TRIM GLOVE BOX 1
95 FRONT CONSOLE COVER KIT 1
96 REAR CENTRAL CONSOLE 1
97 LH REAR CONSOLE PANEL 1
98 RH REAR CONSOLE PANEL 1
110 SHIFT LEVER INDICATOR 1
112 CUP HOLDER 1
113 REAR CENTRAL CONSOLE COVER Red Model 1
113 REAR CENTRAL CONSOLE COVER Model-Yellow 1
114 POIGNEE *HANDLE 2
115 LH SIDE CONSOLE 1
121 ACOUSTIC FOAM 1
122 ACOUSTIC FOAM 1
123 ACOUSTIC FOAM 1
127 INSERT Except Package LTD 0
148 ACOUSTIC FOAM 1
149 ACOUSTIC FOAM 1
150 ACOUSTIC FOAM 1
151 ACOUSTIC FOAM 1
152 ACOUSTIC FOAM 1
153 ACOUSTIC FOAM 1
154 ACOUSTIC FOAM 1
155 ACOUSTIC FOAM 1
