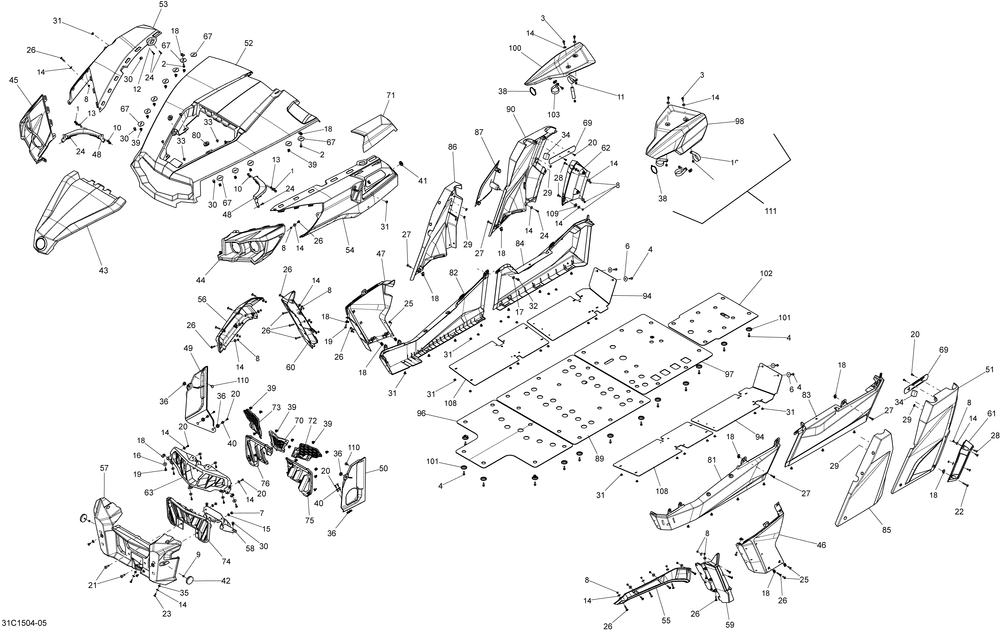

Can-Am Commander MAX 1000_DPS_XT Commander MAX 1000_DPS_XT 09- Body And Accessories _31C1504
09- Body And Accessories _31C1504
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 16 4
2 Hex. Flanged Screw M6 X 20 2
3 HEX. FLANGED SCREW M6 X 20 (10.000 per pack) 6
4 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 0
6 FLAT WASHER (25.000 per pack) 4
7 Hex. Nut M8 2
8 Elastic Stop Nut M6 0
9 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
10 Hex. Flanged Elastic Nut M6 4
11 Hex. Elastic Flanged Nut M6 4
12 FLAT WASHER M5 (10.000 per pack) 4
13 Flat Washer M6, Stainless 4
14 Flat Washer, Stainless 0
15 Flat Washer 8 mm 2
16 Flat Washer 8 mm 2
17 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 2
18 Panel Nut M6 X 1.0 0
19 TORX SCREW M6 X 20 Model-RT STD 0
20 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 0
21 TORX TRUSS SCREW M8 X 30 (6.000 per pack) 2
22 TORX SCREW M6 X 45 1
23 TORX SCREW M6 X 16 (12.000 per pack) 4
24 TRUSS HEAD TORX SCREW K50 X 20 0
25 Torx Truss Screw M6 X 20 0
26 TORX SCREW M6 X 30 STAINLESS 0
27 Torx Truss Screw M6 X 30 4
28 Torx Truss Screw M6 X 20 7
29 PUSH NUT (2.000 per pack) 2
30 Tuflok Plastic Rivet 0
31 Pop Rivet 3/16" 0
32 WASHER M5 (10.000 per pack) 2
34 ANNEAU ETANCHE *SEAL-TRAY 2
35 INSERT Except XMR 2
36 Grommet 6
38 Tie-Rap 350 mm 2
39 Edge Clip 0
40 KNOB (6.000 per pack) 4
41 RONDELLE *GROMMET 1
42 AMBER REFLECTOR Except Europe Model 2
43 CAMO REMOVABLE HOOD Model-Camo 1
43 YELLOW REMOVABLE HOOD Yellow Model 1
43 CAPOT *HOOD Black Model 1
44 LH FRONT FACIA 1
45 RH FRONT FACIA 1
46 CAMO LH FRONT LATERAL PANNEL Model-Camo 1
46 YELLOW LH FRONT LATERAL PANNEL Yellow Model 1
46 PANNEAU GAUCHE *LEFT PANEL Brush Aluminium Model 1
47 CAMO RH FRONT LATERAL PANNEL Model-Camo 1
47 YELLOW RH FRONT LATERAL PANNEL Yellow Model 1
47 PANNEAU DROIT *RH. PANEL Brush Aluminium Model 1
49 RH DEFLECTOR 1
50 LH DEFLECTOR Package STD - DPS 1
50 LH DEFLECTOR Package XT - LTD - XTP - Hunter 1
51 CAMO LH REAR LATERAL PANNEL Model-Camo 1
51 YELLOW LH REAR LATERAL PANEL Yellow Model 1
51 PANNEAU LAT. *SIDE PANEL Brush Aluminium Model 1
52 CAMO FIXED HOOD Model-Camo 1
52 YELLOW FIXED HOOD Yellow Model 1
52 CAPOT *HOOD Brush Aluminium Model 1
53 CAMO RH FRONT FENDER Model-Camo 1
53 YELLOW RH FRONT FENDER Yellow Model 1
53 AILE AVANT *FRONT FENDER Brush Aluminium Model 1
54 CAMO LH FRONT FENDER Model-Camo 1
54 YELLOW LH FRONT FENDER Yellow Model 1
54 AILE AVANT *FRONT FENDER Brush Aluminium Model 1
55 LH BLACK UPPER FRONT MUDGUARD Package XTP - LTD - Hunter 1
56 RH BLACK UPPER FRONT MUDGUARD Package XTP - LTD - Hunter 1
57 BLACK FRONT FACIA Package STD -DPS 1
57 BLACK FRONT FACIA Package XT - XTP - LTD 1
58 BOTTOM DEFLECTOR Package STD - DPS 1
59 LH LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
60 RH LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
61 LH REAR LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
62 RH REAR LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
63 UPPER FACIA BLACK 1
67 SUPPORT PLATE 12
69 SUPPORT PLATE 2
70 CENTER UPPER FACIA PROTECTOR 1
71 CAMO CVT INLET COVER Model-Camo 1
71 YELLOW CVT INLET COVER Yellow Model 1
71 COUV ENTREE CVT*CVT INLET COVE Brush Aluminium Model 1
72 LH UPPER FACIA PROTECTOR 1
73 RH UPPER FACIA PROTECTOR 1
74 LOWER FRONT FACIA PROTECTOR 1
75 LH LOWER REAR FACIA PROTECTOR 1
76 RH LOWER REAR FACIA PROTECTOR 1
80 OVAL WASHER 2
81 BLACK LH LOWER PANEL Package DPS 1
81 BLACK LH LOWER PANEL Package XT - LTD 1
82 BLACK RH LOWER PANEL 1
82 BLACK RH LOWER PANEL Model-XT 1
83 BLACK LH REAR LOWER PANEL 1
84 BLACK RH REAR LOWER PANEL 1
85 YELLOW LH CENTER CAGE PANEL Yellow Model 1
85 CAMO LH CENTER CAGE PANEL Model-Camo 1
85 PANNEAU DE CAGE*CAGE PANEL Brush Aluminium Model 1
86 YELLOW RH CENTER CAGE PANEL Yellow Model 1
86 CAMO RH CENTER CAGE PANEL Model-Camo 1
86 PANNEAU DE CAGE*CAGE PANEL Brush Aluminium Model 1
87 YELLOW RH PANEL COVER Yellow Model 1
87 CAMO RH PANEL COVER Model-Camo 1
87 COUVERCLE *PANEL COVER Brush Aluminium Model 1
89 PLAQUE *SKID PLATE 1
90 CAMO RH REAR LATERAL PANNEL Model-Camo 1
90 YELLOW RH REAR LATERAL PANNEL Yellow Model 1
90 YELLOW RH REAR LATERAL PANNEL Model-DPS 1
90 PANNEAU LAT. *SIDE PANEL Brush Aluminium Model 1
94 LATERAL SKID PLATE Except Package Hunter 2
96 MIDDLE PROTECTOR PLATE Except Package Hunter 1
97 REAR PROTECTOR PLATE Except Package Hunter 1
98 YELLOW LH TOP CENTER CAGE COVER Yellow Model 1
98 BLACK LH TOP CENTER CAGE COVER Except Yellow Model 1
100 YELLOW RH TOP CENTER CAGE COVER Yellow Model 1
100 BLACK RH TOP CENTER CAGE COVER Except Yellow Model 1
101 CUP Model Hunter 35
102 REAR PROTECTOR PLATE Except Package Hunter 1
103 ATTACHE *"P" CLAMP 6
108 SIDE PROTECTOR PLATE 2
109 Flat Washer 1
110 Rubber Stopper 2
111 YELLOW CAGE COVER KIT Yellow Model 1
111 BLACK CAGE COVER KIT Camo Model 1
