Can-Am Commander MAX 1000_DPS_XT Commander MAX 1000_DPS_XT 10- Electrical System _20C1504

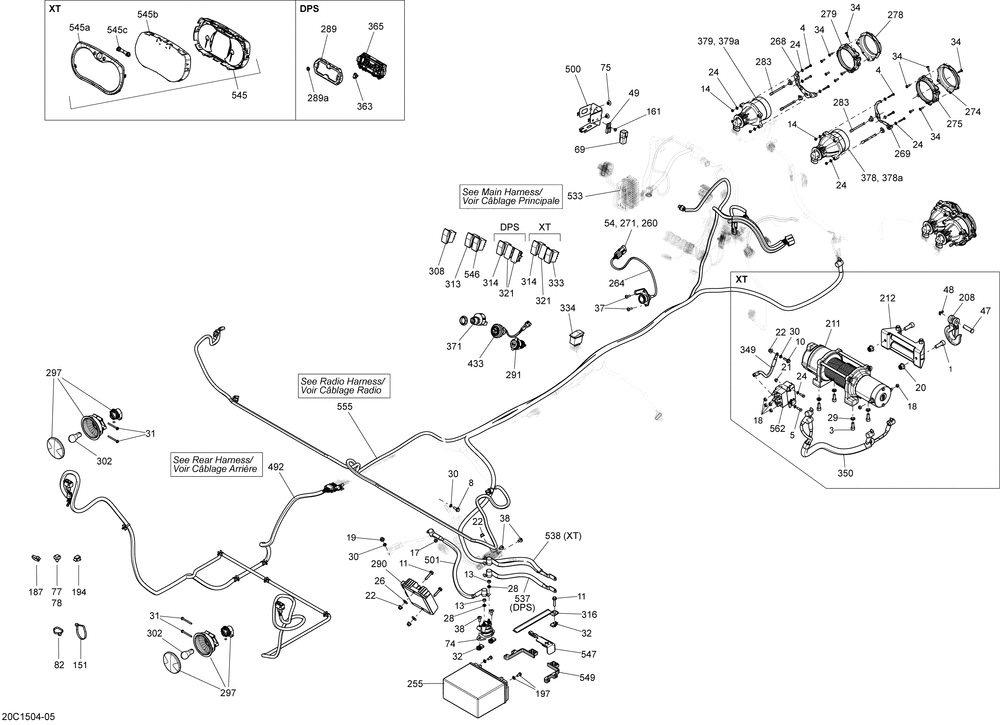

10- Electrical System _20C1504
№ Наименование Примечание Кол-во
1 SOCKET SCREW M10 X 30 (2.000 per pack) 2
3 SOCKET HEAD SCREW M8 X 20 (10.000 per pack) 4
4 HEX. SCREW M4 X 25 Australia Model (4.000 per pack) 12
5 HEX. SCREW M5 X 16 (10.000 per pack) 2
8 Hex. Flanged Screw M6 X 16, Scotch Grip 1
10 Hex. Flanged Screw M6 X 20 1
11 HEX. FLANGED SCREW M6 X 30 (5.000 per pack) 0
13 Hex. Nut M6 2
14 Elastic Stop Nut M4 12
17 Elastic Stop Nut M6 1
18 Elastic Stop Nut M6 1
19 Hex. Flanged Nut M6 1
20 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 2
21 Elastic Flanged Nut M5 2
22 Hex. Flanged Elastic Nut M6 1
24 FLAT WASHER M5 (10.000 per pack) 24
26 Flat Washer 6 mm 2
28 Lock Washer Helical M6 2
29 WASHER-LOCK DIN.127B (50.000 per pack) 4
30 EXTERNAL SERRATED LOCK WASHER 6 MM (5.000 per pack) 1
31 HEX. SCREW K50 X 45 (4.000 per pack) 4
32 Panel Nut M6 X 1.0 1
34 PHILLIPS SCREW K40 X 16 (5.000 per pack) 22
37 Torx Screw K50 X 16 2
38 Torx Head Screw M6 X 16 2
47 CLEVIS PIN Package-XT XTP LTD PRO 1
48 COTTER PIN Package-XT XTP LTD PRO (25.000 per pack) 1
49 Clip 1
54 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
69 DIAGNOSTIC CONNECTOR 1
74 Starter Relay 1
75 Black Pop Rivet 3/16" 2
77 MOUNT DART (5.000 per pack) 0
78 Mount Dart 0
82 Tie-Rap 350 mm 0
151 Tie-Rap 173 mm 0
161 Pop Rivet 3/16" 1
187 Tie-Rap 180 mm 0
194 CLIP (10.000 per pack) 0
197 Battery Bolt Kit 1
208 HOOK Package-XT XTP LTD PRO 1
211 WINCH 1
212 WINCH CABLE GUIDE 1
255 BATTERY ASS Y 18 AMPERES 1
260 CLIP 1
264 WINCH CONNECTOR 1
268 LH HIGH LIGHT SUPPORT 1
268 RH HIGH LIGHT SUPPORT 1
269 LH LOW LIGHT SUPPORT 1
269 RH LOW LIGHT SUPPORT 1
271 CONNECTOR ASS Y Includes 7 to 9 XT XTP 1
274 RH LOW FRONT HOUSING 1
274 LH LOW FRONT HOUSING 1
275 LH LOW REAR HOUSING 1
275 RH LOW REAR HOUSING 1
278 RH HIGH FRONT HOUSING 1
278 LH HIGH FRONT HOUSING 1
279 RH HIGH REAR HOUSING 1
279 LH HIGH REAR HOUSING 1
283 SETTING SCREW 8
289 TRIM RING ASS Y 1
289a BRP LOGO 13 MM 1
290 VOLTAGE REGULATOR 1
291 OUTLET DC 1
297 TAIL LIGHT 2
302 BULB (10.000 per pack) 1
308 HI/LOW SWITCH Except Europe Model 1
313 SWITCH 1
314 SWITCH DPS 1
316 BATTERY HOLDER 1
321 PLUG CARLING 2
333 WINCH SWITCH 1
334 SWITCH 1
349 NEGATIVE CABLE Model-XT 1
350 ELECTRICAL WINCH CABLE Package-XT XTP 1
363 BUTTON 1
365 SPEEDOMETER 1
371 IGNITION SWITCH 1
378 LOW BEAM ASS Y 2
378a HALOGEN BULB Model-Europe Australia 1
379 HIGH BEAM ASS Y 2
433 ENGINE START BUTTON 1
492 REAR HARNESS Model-North America International 1
500 FUSE HOLDER 1
501 POSITIVE CABLE 1
533 MAIN HARNESS ASS Y COM-MAX COM-MAX 1
537 POSITIVE CABLE 1
538 CABLE NEG POS *CABLE NEG POS Model-XT 1
545 SPEEDOMETER Package-XT 1
545a GAUGE RING RS STD 1
545b Lens 1
545c SPEEDOMETER BUTTON RS STD 1
546 SWITCH PPS SPORT 1
547 CAP MAX Model 1
549 BATTERY RUBBER PAD MAX Model 2
562 WINCH SOLENOID 1
