Can-Am Commander MAX 1000_LTD Commander MAX 1000_LTD 09- Body And Accessories _31C1505

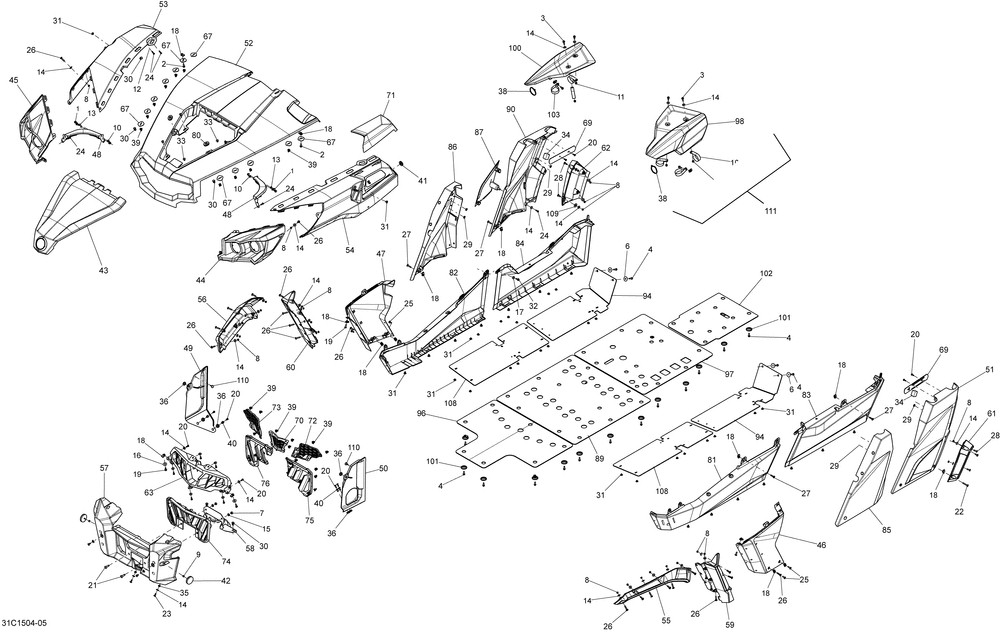

09- Body And Accessories _31C1505
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 16 4
2 Hex. Flanged Screw M6 X 20 2
3 HEX. FLANGED SCREW M6 X 20 (10.000 per pack) 6
4 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 0
6 FLAT WASHER (25.000 per pack) 4
7 Hex. Nut M8 2
8 Elastic Stop Nut M6 0
9 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
10 Hex. Flanged Elastic Nut M6 4
11 Hex. Elastic Flanged Nut M6 4
12 FLAT WASHER M5 (10.000 per pack) 4
13 Flat Washer M6, Stainless 4
14 Flat Washer, Stainless 0
15 Flat Washer 8 mm 2
16 Flat Washer 8 mm 2
17 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 2
18 Panel Nut M6 X 1.0 0
19 TORX SCREW M6 X 20 Model-RT STD 0
20 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 0
21 TORX TRUSS SCREW M8 X 30 (6.000 per pack) 2
22 TORX SCREW M6 X 45 1
23 TORX SCREW M6 X 16 (12.000 per pack) 4
24 TRUSS HEAD TORX SCREW K50 X 20 0
25 Torx Truss Screw M6 X 20 0
26 TORX SCREW M6 X 30 STAINLESS 0
27 Torx Truss Screw M6 X 30 4
28 Torx Truss Screw M6 X 20 7
29 PUSH NUT (2.000 per pack) 2
30 Tuflok Plastic Rivet 0
31 Pop Rivet 3/16" 0
32 WASHER M5 (10.000 per pack) 2
34 ANNEAU ETANCHE *SEAL-TRAY 2
35 INSERT Except XMR 2
36 Grommet 6
38 Tie-Rap 350 mm 2
39 Edge Clip 0
40 KNOB (6.000 per pack) 4
41 RONDELLE *GROMMET 1
42 AMBER REFLECTOR Except Europe Model 2
43 WHITE REMOVABLE HOOD White Model 1
43 DEEP PEWTER SATIN REMOVABLE HOOD Deep Pewter Model 1
44 LH FRONT FACIA 1
45 RH FRONT FACIA 1
46 WHITE LH FRONT LATERAL PANNEL White Model 1
46 DEEP PEWTER SATIN LH FRONT LATERAL PANEL Deep Pewter Model 1
47 WHITE RH FRONT LATERAL PANNEL White Model 1
47 DEEP PEWTER SATIN RH FRONT LATERAL PANEL Deep Pewter Model 1
49 RH DEFLECTOR 1
50 LH DEFLECTOR Package XT - LTD - XTP - Hunter 1
51 WHITE LH REAR LATERAL PANNEL White Model 1
51 DEEP PEWTER SATIN LH REAR LAT. PANEL Deep Pewter Model 1
52 WHITE FIXED HOOD White Model 1
52 DEEP PEWTER SATIN FIXED HOOD Deep Pewter Model 1
53 WHITE RH FRONT FENDER White Model 1
53 DEEP PEWTER SATIN RH FRONT FENDER Deep Pewter Model 1
54 WHITE LH FRONT FENDER White Model 1
54 DEEP PEWTER SATIN LH FRONT FENDER Deep Pewter Model 1
55 LH BLACK UPPER FRONT MUDGUARD Package XTP - LTD - Hunter 1
56 RH BLACK UPPER FRONT MUDGUARD Package XTP - LTD - Hunter 1
57 BLACK FRONT FACIA Package XT - XTP - LTD 1
58 BOTTOM DEFLECTOR Package STD - DPS 1
59 LH LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
60 RH LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
61 LH REAR LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
62 RH REAR LOWER BLACK MUDGUARD Package XTP - LTD - Hunter 1
63 UPPER FACIA BLACK 1
67 SUPPORT PLATE 12
69 SUPPORT PLATE 2
70 CENTER UPPER FACIA PROTECTOR 1
71 WHITE CVT INLET COVER White Model 1
71 DEEP PEWTER SATIN CVT INLET COVER Deep Pewter Model 1
72 LH UPPER FACIA PROTECTOR 1
73 RH UPPER FACIA PROTECTOR 1
74 LOWER FRONT FACIA PROTECTOR 1
75 LH LOWER REAR FACIA PROTECTOR 1
76 RH LOWER REAR FACIA PROTECTOR 1
80 OVAL WASHER 2
81 BLACK LH LOWER PANEL Package XT - LTD 1
82 BLACK RH LOWER PANEL Model-XT 1
84 BLACK RH REAR LOWER PANEL 1
85 DEEP PEWTER SATIN LH CENTER CAGE PANEL Deep Pewter Model 1
85 WHITE LH CENTER CAGE PANEL 1
86 DEEP PEWTER SATIN RH CENTER CAGE PANEL Deep Pewter Model 1
86 WHITE RH CENTER CAGE PANEL 1
87 DEEP PEWTER SATIN RH PANEL COVER Deep Pewter Model 1
87 WHITE RH PANEL COVER 1
89 PLAQUE *SKID PLATE 1
90 DEEP PEWTER SATIN RH REAR LATERAL PANNEL Deep Pewter Model 1
90 WHITE RH REAR LATERAL PANNEL 1
94 LATERAL SKID PLATE Except Package Hunter 2
96 MIDDLE PROTECTOR PLATE Except Package Hunter 1
97 REAR PROTECTOR PLATE Except Package Hunter 1
98 ENS. COUV. CAGE*KIT CAGE COVER 1
98 ENS. COUV. CAGE*KIT CAGE COVER 1
100 ENS. COUV. CAGE*KIT CAGE COVER 1
100 ENS. COUV. CAGE*KIT CAGE COVER 1
101 CUP Model Hunter 35
102 REAR PROTECTOR PLATE Except Package Hunter 1
103 ATTACHE *"P" CLAMP 6
108 SIDE PROTECTOR PLATE 2
109 Flat Washer 1
110 Rubber Stopper 2
