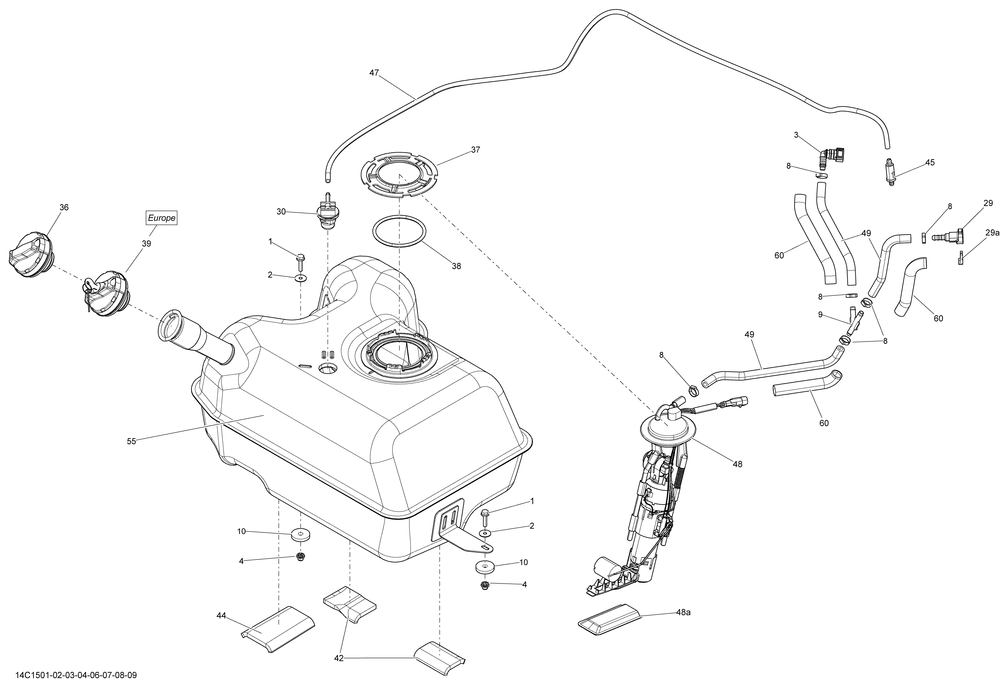

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Hex. Flanged Screw M6 X 25 | 2 | |
| 2 | Flat Washer | 2 | |
| 3 | QUICK ATTACH 90 | 1 | |
| 4 | INSERT Except XMR | 2 | |
| 8 | Crimp Clamp | 6 | |
| 9 | Y-FITTING 5/16 | 1 | |
| 10 | RUBBER WASHER (5.000 per pack) | 2 | |
| 29 | RACCORD RAPIDE *QUICK FITTING | 1 | |
| 29a | LOCKING CLIP (2.000 per pack) | 1 | |
| 30 | SOUPAPE RESOUPAPE RENV *ROLLOVER VALVE | 1 | |
| 36 | FUEL CAP Except Europe Model | 1 | |
| 37 | RING | 1 | |
| 38 | O-RING | 1 | |
| 39 | FUEL CAP KIT Europe Model | 1 | |
| 42 | NEOPRENE PAD | 2 | |
| 44 | NEOPRENE PAD | 1 | |
| 45 | FILTER | 1 | |
| 47 | Hose, Polyurethane | 0 | |
| 48 | FUEL PUMP | 1 | |
| 48a | FUEL PRE-FILTER KIT Except Engine 570 | 1 | |
| 49 | BOYAU ESSENCE *FUEL LINE | 0 | |
| 55 | FUEL TANK | 1 | |
| 60 | Tubing 16 mm | 0 |
