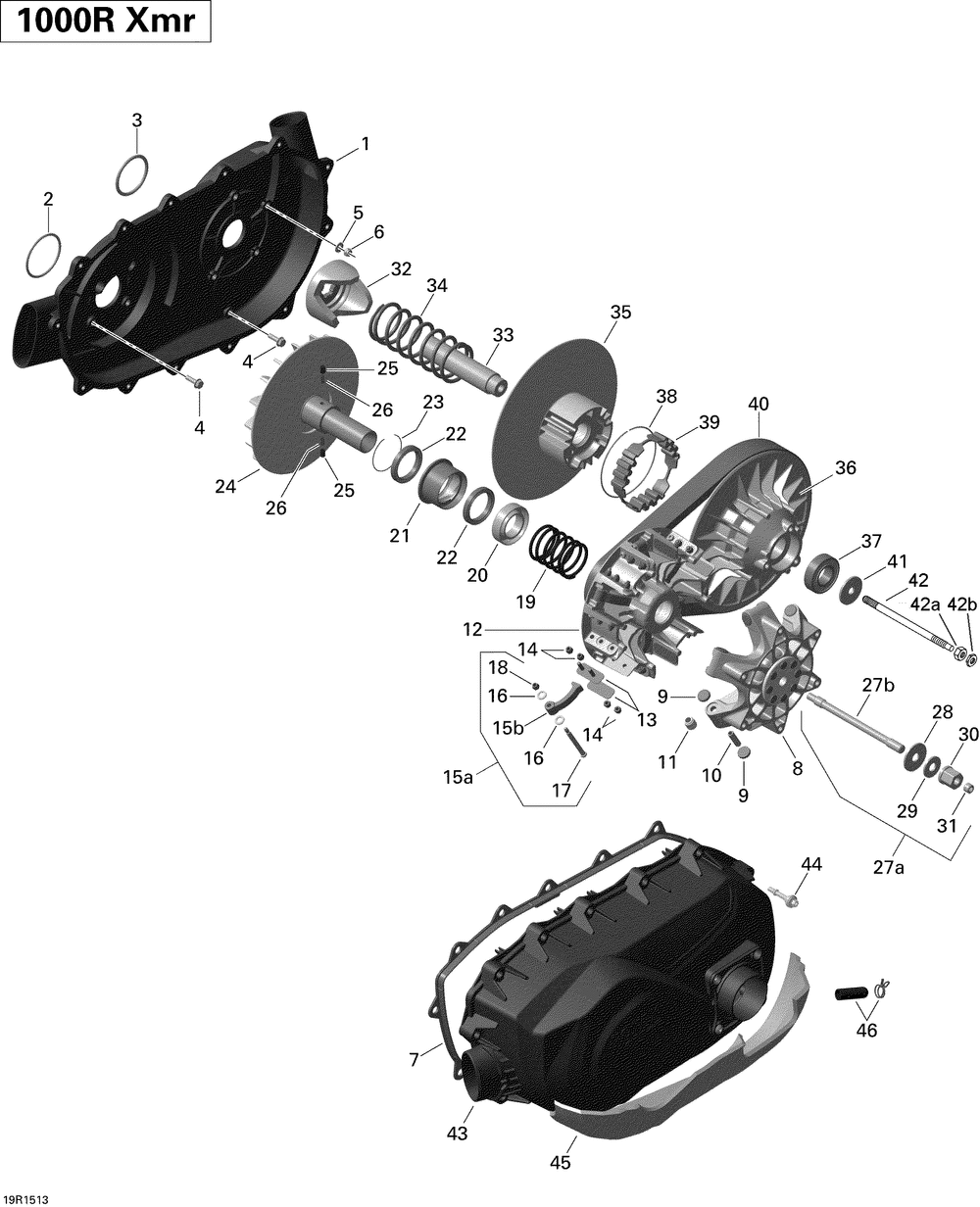

05- Transmission

05- Transmission _19R1513

№	Наименование	Кол-во
1	CVT AIR GUIDE	1
2	O-RING	1
3	O-RING	1
4	HEX.SCREW M6 X 20	8
5	Flat Washer	1
6	Elastic Stop Nut M6	1
7	JOINT ETANCHE * GASKET	1
8	GOVERNOR CUP ASS Y Includes 8 to 11	1
9	Slider Shoe Set	1
10	Roller Axle	6
11	ROLLER	6
12	FLASQUE COULI. *HALF-OUTHER ASSY Includes 12 to 14	1
13	SLIDE PLATE	12
14	NUT-STOP ELASTIC DIN.985 (10.000 per pack)	24
15a	CENTRIFUGAL LEVER KIT (SET OF 6) Includes 15a to 18	1
19	COMPRESSION SPRING DRIVE PULLEY	1
20	SPRING SEAT	1
21	DRIVE PULLEY CLUTCH	1
22	BALL BEARING	2
23	RETAINING RING	1
24	INNER HALF	1
25	SPRING SLEEVE	2
26	SPRING	2
27a	CLUTCH BOLT REPAIR KIT	1
28	WASHER 40 MM	1
29	WASHER 30 MM	1
32	CAM	1
33	DRIVEN PULLEY SHAFT	1
34	COMPRESSION SPRING	1
35	INNER HALF PULLEY	1
36	OUTER HALF PULLEY ASS Y Includes 32 to 35	1
37	BALL BEARING	1
38	RETAINING RING	1
39	TORQUE GEAR	1
40	COURROIE ENTRAIN*V BELT	1
41	THRUST WASHER	1
42	VIS M10X136*STUD SCREW M10X136	1
42a	ECROU*HEX NUT ISO 4032 M10-10	1
42b	ECROU*HEX NUT ISO 4035 M10	1
43	COUVERCLE *VARIATOR COVER ASS Y Includes 45 XMR	1
44	HEX. DISTANCE SCREW M6 X 30.5	13
45	PROTECTEUR*HEAT PROTECTION MAT	1
46	DRAIN PLUG KIT	1
