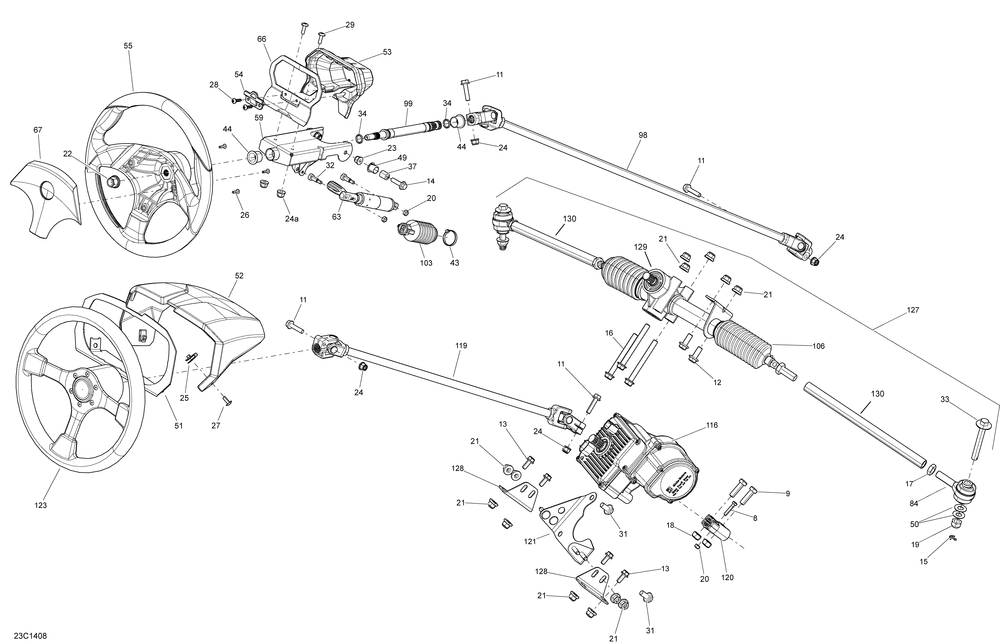

Can-Am Maverick MAX 1000, STD, XRS, XRS-DPS Maverick MAX 1000, STD, XRS, XRS-DPS 07- Steering
07- Steering
№ Наименование Примечание Кол-во
8 HEX. SCREW M6 X 30 (10.000 per pack) 1
9 HEX. SCREW M10 X 35 2
11 HEX. FLANGED SCREW M8 X 35 SCOTCH GRIP (4.000 per pack) 2
12 HEX. FLANGED SCREW M10 X 25 2
13 Hex. Flanged Screw M8 X 20, Scotch Grip 4
14 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 2
15 COTTER PIN (50.000 per pack) 2
16 230500046 (5.000 per pack) 3
17 STEERING RODE NUT 4
18 NUT-STOP ELASTIC DIN.985 Model with Package S & Engine SM6 (4.000 per pack) 2
19 ELASTIC FLANGED STOP NUT M12 (10.000 per pack) 2
20 Elastic Stop Nut M6 0
21 Flanged Elastic Nut M10 0
22 HEX. FLANGED ELASTIC NUT M12 (5.000 per pack) 1
23 Hex. Flanged Elastic Nut M8 0
24 Hex. Elastic Flanged Nut M8 2
24a Hex. Flanged Elastic Nut M6 2
25 Panel Nut M6 X 1.0 2
26 PHILLIPS SCREW K40 X 16 (5.000 per pack) 3
27 TORX SCREW M6 X 16 (12.000 per pack) 2
28 TRUSS HEAD TORX SCREW K50 X 20 2
29 Torx Truss Screw M6 X 20 2
31 HEX. FLANGED SCREW M10 X 20 SCOTCH GRIP 3
32 SOCKET HEAD SCREW M6 X 16 2
33 HEXAGONAL SCREW M12 X 88 2
34 O-RING 2
37 BUSHING Except Package XMR Engine 1000R 2
43 Tie-Rap 180 mm 1
44 CUSHION 2
49 COUSSINET *BUSHING 2
50 Flat Washer 4
51 CLUSTER SUPPORT Package XT - LTD - XTP - Hunter 1
52 UPPER CLUSTER COVER Package XT - LTD - XTP - Hunter 1
53 SPEEDOMETER COVER 1
54 LATCH INDICATOR COVER 1
55 STEERING WHEEL Package STD - DPS 1
59 STEERING SUPPORT 1
63 ADJUSTMENT CYLINDER 1
66 CLUSTER SUPPORT Package STD - DPS 1
67 CENTRE VOLANT*CENTER-STEERING Package STD - DPS 1
84 BALL JOINT 2
98 STEERING SHAFT ASS Y Model-STD XRS 1
99 STEERING SHAFT 1
103 SOUFFLET *BELLOW 1
106 SOUFFLET*PINION SIDE BOOT KIT 1
106 SOUFFLET*TUBE SIDE BOOT KIT 1
116 POWER STEERING Package-XDSDPS XMR XRSDPS XXC 1
119 STEERING SHAFT ASS Y Package-XDSDPS XMR XRSDPS XXC 1
120 COUPLING Package-XDSDPS XMR XRSDPS XXC 1
121 SUPPORT Package-XDSDPS XMR XRSDPS XXC 1
123 ENS. VOLANT * STEER WHEEL Package XT - LTD - XTP - Hunter 1
127 BALL JOINT 1
128 SUPPORT Package-XDSDPS XMR XRSDPS XXC 2
129 RACK AND PINION STEERING Model Without DPS 1
