Can-Am Maverick 1000, STD, XRS Maverick 1000, STD, XRS 09- Cab Interior

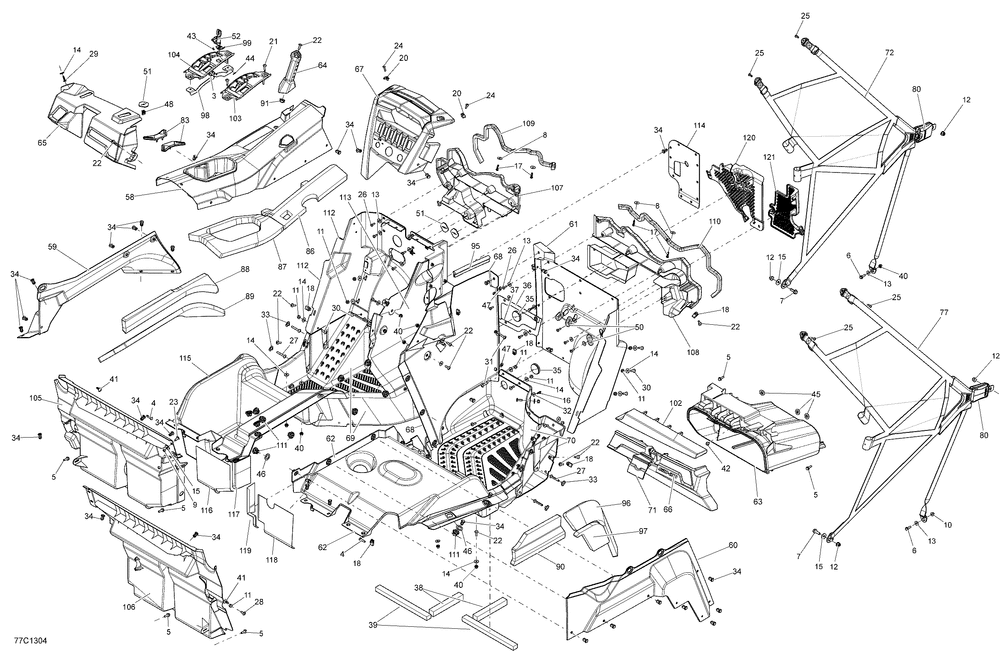

09- Cab Interior
№ Наименование Примечание Кол-во
3 Socket Head Screw M5 X 10 2
4 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 2
5 Hex. Flanged Screw M6 X 20 6
6 Hex. Flanged Screw M6 X 20 2
7 Hex. Flanged Screw M8 X 25 2
8 Flat Washer 2
10 Hex. Flanged Elastic Nut M6 1
11 Hex. Elastic Flanged Nut M6 0
12 Hex. Flanged Elastic Nut M8 4
13 Flat Washer 6 mm 0
14 Flat Washer, Stainless 0
15 Flat Washer 8 mm 2
15 FLAT WASHER (3.000 per pack) 2
16 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 1
17 HEX. FLANGED SCREW K50 X 20 (5.000 per pack) 4
18 Panel Nut M6 X 1.0 0
20 PANEL NUT M5 X 0.8 (10.000 per pack) 2
21 TORX SCREW M6 X 25 (2.000 per pack) 2
22 TORX SCREW M6 X 20 Model-RT STD 0
23 Torx Truss Screw M6 X 20 2
24 TORX SCREW M5 X 20 (10.000 per pack) 2
25 Torx Screw M5 X 14 4
27 TORX SCREW M6 X 45 4
28 TORX SCREW M6 X 16 (12.000 per pack) 1
29 TRUSS HEAD TORX SCREW K50 X 20 1
30 SOCKET HEAD SCREW M6 X 20 0
31 Torx Truss Screw M6 X 30 4
32 WASHER M5 (10.000 per pack) 1
33 NUT M6 (6.000 per pack) 4
34 Tuflok Plastic Rivet 0
35 RUBBER COVER 2
36 UPPER SEAL 1
37 BOTTOM SEAL 1
38 ANNEAU ETANCHE *SEAL-TRAY 2
39 ANNEAU ETANCHE *SEAL-TRAY 2
40 INSERT Except XMR 0
41 DART BLACK (5.000 per pack) 2
42 Rubber Bumper 1
43 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 1
44 RONDELLE *WASHER 1
45 CAP (10.000 per pack) 3
46 RONDELLE *WASHER (25.000 per pack) 0
47 RONDELLE *WASHER (25.000 per pack) 2
48 Edge Clip 1
50 Oblong Grommet 4
51 SUPPORT PLATE 3
52 Padlock with Key 1
58 CENTRAL CONSOLE ASS Y Europe 1
58 CENTRAL CONSOLE ASS Y Except Europe 1
59 LH SIDE CONSOLE 1
60 RH SIDE CONSOLE 1
61 RH FRONT FLOOR 1
62 RH UNDER SEAT PLATE 1
63 STORAGE BIN Package STD - DPS 1
64 PASSENGER HANDLE 1
65 DASHBOARD ASS Y 1
66 LUGGAGE COVER KIT 1
67 CENTRAL DASHBOARD ASS Y Except Europe 1
67 CENTRAL DASHBOARD ASS Y Europe 1
68 CONSOLE LAT. *SIDE DASH Except Package LTD 1
69 LH LOWER FLOOR 1
70 RH LOWER FLOOR 1
71 LATCH 1
72 LH LATERAL NET 1
77 RH LATERAL NET 1
80 BUCKLE 2
83 CUP RETAINER 2
86 FRONT CENTRAL CONSOLE FOAM 1
87 REAR CENTRAL CONSOLE FOAM 1
88 LH UPPER LATERAL CONSOLE FOAM 1
89 LH LOWER LATERAL CONSOLE FOAM 1
90 RH LATERAL CONSOLE FOAM 1
91 CONNECTOR TUBE 1
95 ANNEAU NEOPRENE*SEAL-NEOPRENE RS RS-S (3.000 per pack) 0
96 RH LATERAL CONSOLE FOAM 1
97 RH LATERAL CONSOLE FOAM 1
98 LOCK SUPPORT 1
99 CAP Europe Model 1
102 TRIM GLOVE BOX 1
103 SHIFT LEVER INDICATOR 1
104 LEVER INDICATOR Europe Model 1
105 LH REAR DEFLECTOR 1
106 RH REAR DEFLECTOR 1
107 LH FLOOR SUPPORT 1
108 RH FLOOR SUPPORT Except Package XMR 1
109 NEOPRENE SEAL (8.000 per pack) 0
111 INSERT Except Package LTD 0
112 LH FRONT FLOOR 1
113 LH LATERAL CONSOLE 1
114 DEFLECTOR Package STD - XDS 1
115 LH UNDER SEAT PLATE KIT 1
116 HEAT SHIELD 1
117 HEAT SHIELD 1
118 HEAT SHIELD 1
119 HEAT SHIELD 1
120 GRILL 1
121 GRILL 1
