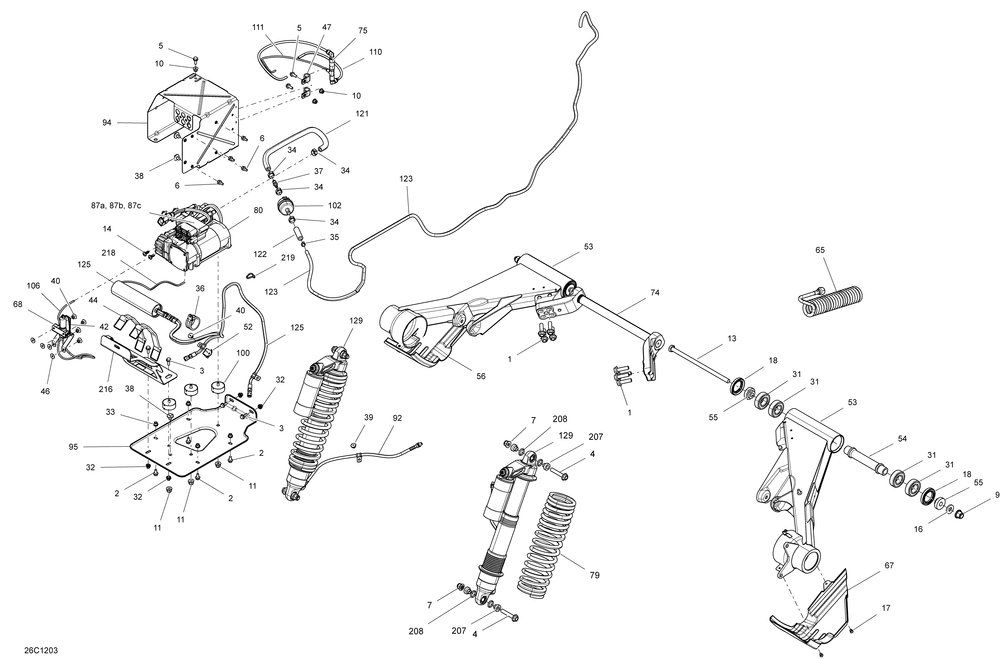

Can-Am Commander LTD, 1000 EFI Commander LTD, 1000 EFI 08- Rear Suspension
08- Rear Suspension
№ Наименование Примечание Кол-во
1 HEX. FLANGED SCREW M10 X 35 8
2 Hex. Flanged Screw M6 X 12, Scotch Grip 4
3 Hex. Flanged Screw M6 X 16, Scotch Grip 4
4 HEX. FLANGED SCREW M10 X 55 (5.000 per pack) 4
5 Hex. Flanged Screw M6 X 16 3
6 Hex. Flanged Screw M6 X 12 4
7 Hex. Flanged Elastic Nut M10 4
9 ELASTIC FLANGE NUT M12 (5.000 per pack) 2
10 Hex. Flanged Elastic Nut M6 3
11 Hex. Flanged Elastic Nut M8 3
13 HEX. CAP SCREW M12 X 241 2
14 OVAL HEAD TORX SCREW K60 X 16 MAX Model 2
16 FLAT WASHER M12 (4.000 per pack) 2
17 Pop Rivet 3/16" 4
18 Seal 4
31 Ball Bearing 8
32 INSERT Except XMR 4
34 OETIKER CLAMP (5.000 per pack) 4
35 OETIKER CLAMP 1
36 HOSE RETAINER Engine 1000 1
37 STRAIGHT FITTING 1
38 MOUNT DART (5.000 per pack) 3
39 Pop Rivet 3/16" 2
42 O-RING 1
44 BATTERY STRAP 2
46 RONDELLE *WASHER (10.000 per pack) 4
47 RETAINING CLAMP 2
52 HOSE BRACKET 1
53 LH SWING ARM 1
53 RH SWING ARM 1
54 BUSHING 2
55 SPACER 4
56 LH JOINT PROTECTOR 1
65 BOYAU ASSEMBLEE*HOSE ASS Y Package LTD 1
67 RH JOINT PROTECTOR 1
68 BRACKET ASS Y 1
74 SWAY BAR ASS Y 1
75 PRESSURE DISTRIBUTOR ASS Y Package LTD Except MAX Model 1
79 BLACK REAR SPRING Package LTD Except MAX Model 2
80 COMPRESSOR Package LTD Except MAX Model 1
87a SOLENOID VALVE 1
87b PRESSURE CONNECTOR 4MM 5
87c PRESSURE CONNECTOR 6MM 1
92 BOYAU *HOSE 1
94 UPPER SUPPORT Package LTD Except MAX Model 1
95 LOWER SUPPORT Package LTD Except MAX Model 1
100 RUBBER MOUNT Package LTD Except MAX Model 3
102 AIR FILTER Package LTD Except MAX Model 1
106 HOSE POLYURETHANE 4 MM 1
110 HOSE POLYURETHANE 6 MM Package LTD Except MAX Model 1
121 DUIT ESSENCE*FUEL LINE (10.000 per pack) 0
123 Hose, Polyurethane 1
125 REAR SHOCKS DISTRIBUTOR ASS Y Inclus 440 to 440b 1
129 REAR SHOCK ASS Y Package LTD Except MAX Model 2
207 INTERIOR BUSHING Model-XTP 4
208 O-RING BUSHING Model-XTP 4
216 TANK BRACKET Package LTD Except MAX Model 1
219 Tie-Rap 142 mm 1
