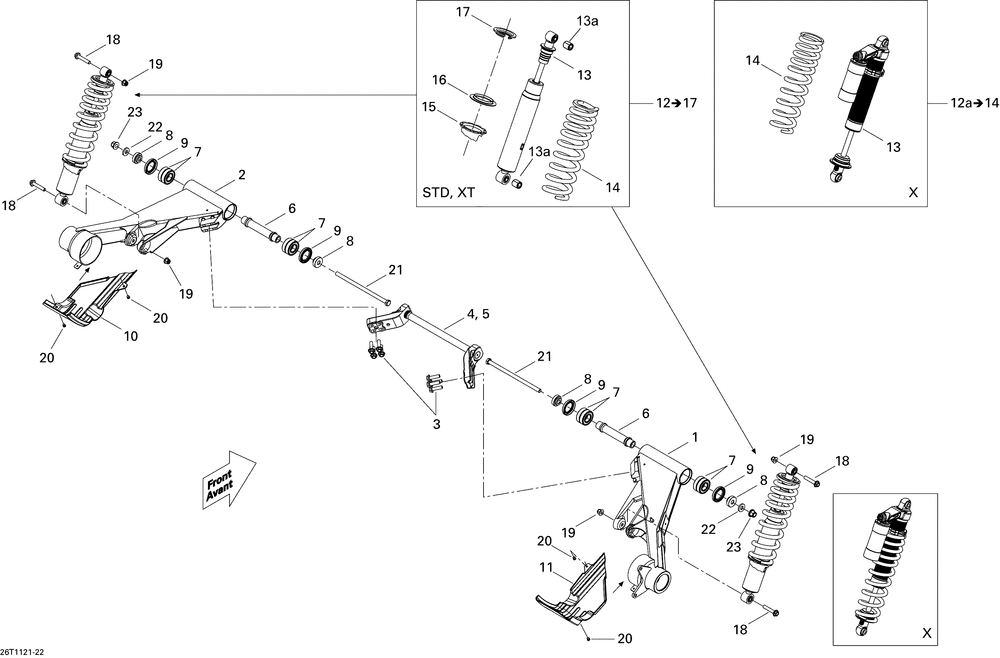

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RH SWING ARM | 1 | |
| 2 | LH SWING ARM | 1 | |
| 3 | HEX. FLANGED SCREW M10 X 35 | 8 | |
| 4 | SWAY BAR ASS Y | 1 | |
| 5 | SWAY BAR ASS Y | 1 | |
| 6 | BUSHING | 2 | |
| 7 | Ball Bearing | 8 | |
| 8 | SPACER | 4 | |
| 9 | Seal | 4 | |
| 10 | LH JOINT PROTECTOR | 1 | |
| 11 | RH JOINT PROTECTOR | 1 | |
| 13 | REAR SHOCK Except MAX Model - Except Package XTP LTD | 2 | |
| 13 | REAR SHOCK X | 2 | |
| 13a | COUSSINET*BUSHING | 4 | |
| 14 | YELLOW REAR SPRING Package XT Yellow Model Except MAX | 2 | |
| 14 | YELLOW REAR SPRING | 2 | |
| 14 | RED REAR SPRING Package DPS Except MAX Model | 2 | |
| 14 | BLACK REAR SPRING Package XT Camo Hunter Model Except MAX | 2 | |
| 15 | ROND. RÉGLAGE *ADJUST RING | 2 | |
| 16 | PROTECTOR RING | 2 | |
| 17 | Spring Stopper | 2 | |
| 18 | HEX. FLANGED SCREW M10 X 55 (5.000 per pack) | 4 | |
| 19 | Hex. Flanged Elastic Nut M10 | 4 | |
| 20 | Pop Rivet 3/16" | 4 | |
| 21 | HEX. CAP SCREW M12 X 241 | 2 | |
| 22 | FLAT WASHER M12 (4.000 per pack) | 4 | |
| 23 | ELASTIC FLANGE NUT M12 (5.000 per pack) | 2 |
