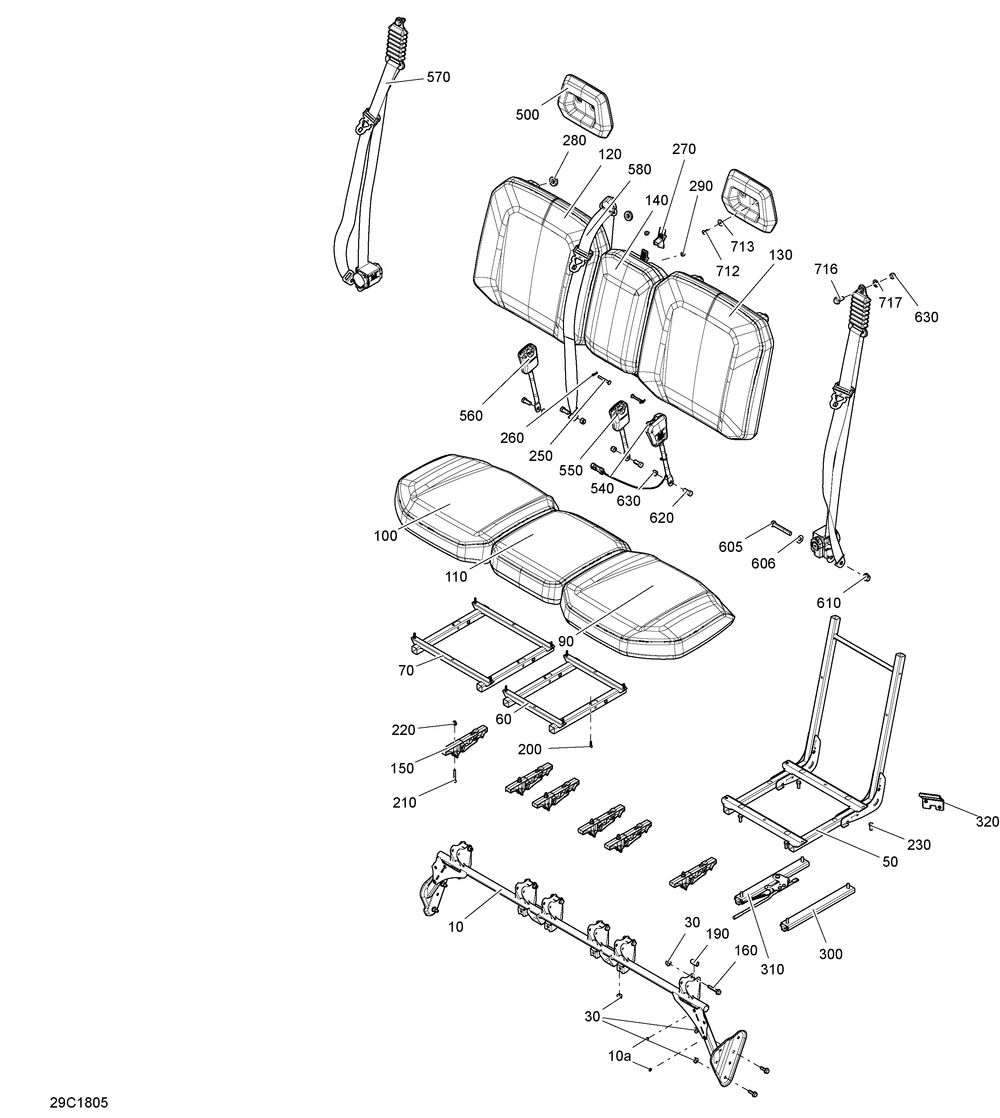

09- Seat - HD5

№	Наименование	Кол-во
10	SEAT MEMBER Package BASE Includes 10 to 10a	1
10a	Pop Rivet 3/16"	4
30	Hex. Flanged Elastic Nut M8	0
60	MIDDLE SEAT FRAME	0
90	SEAT BASE ASSY	1
100	SEAT BASE ASSY Except Package XT Cab	1
110	SEAT BASE ASSY Except Package XT Cab	1
120	BACKREST ASSY Except Package XT Cab	2
140	BACKREST ASSY Except Package XT Cab	1
200	Torx Screw Truss Head K50X20 T20	12
210	HEX. SCREW M6 X 45 (10.000 per pack)	4
220	Hex. Flanged Elastic Nut M6	4
250	GOUPILLE *CLEVIS PIN	0
260	GOUPILLE RESSOR*HAIRPIN CUTTER (4.000 per pack)	0
270	LATCH (2.000 per pack)	0
280	RONDELLE *GROMMET	0
500	APPUIE-TETE *HEADREST	2
540	DRIVER BUCKLE	1
550	MIDDLE BUCKLE	0
560	BUCKLE	0
570	SAFETY BELT Lateral Non Max Models	0
580	SAFETY BELT Central Non Max Models	0
605	HEX. SCREW M12 X 80	0
606	FLAT WASHER M12 (5.000 per pack)	0
610	ELASTIC FLANGE NUT M12 (5.000 per pack)	0
620	HEX. CAP SCREW 7/16 X 1 (2.000 per pack)	0
630	NYLON INSERT HEX. LOCK NUT 7/16-20	0
712	Torx Screw	4
713	WASHER-FLAT M6.6 X 22	4
716	SAFETY BELT SCREW	3
717	POSITION WASHER	5
