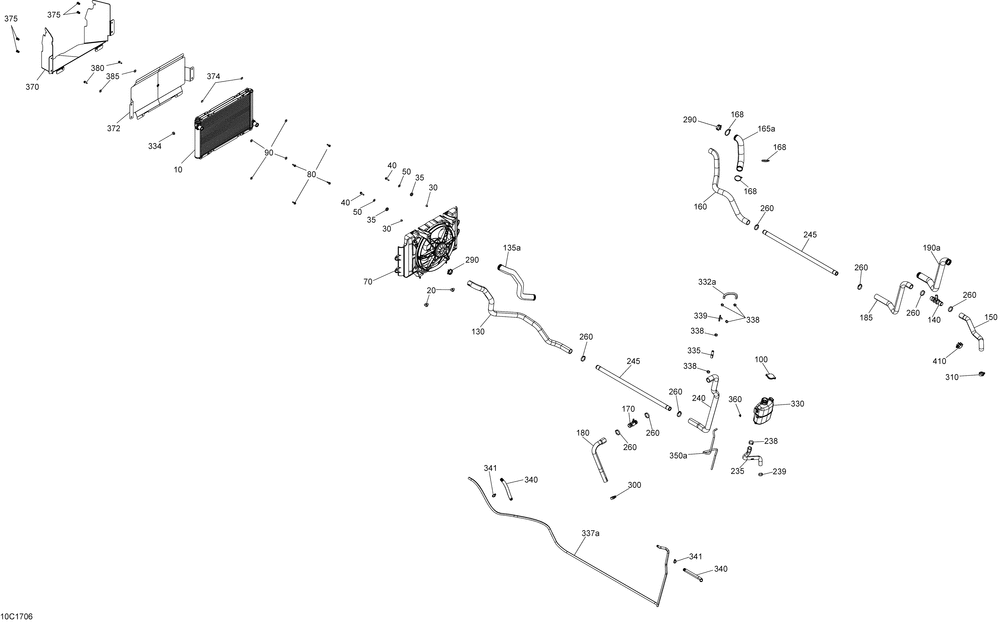

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 10 | RADIATEUR *RADIATOR | 1 | |
| 20 | Grommet | 2 | |
| 30 | Bushing | 2 | |
| 35 | Grommet | 2 | |
| 40 | Hex. Flanged Screw M6 X 25 | 2 | |
| 50 | Flat Washer 6 mm | 2 | |
| 70 | VENTILATEUR ASS*FAN ASS Y | 1 | |
| 80 | Hex. Flanged Screw M6 X 20 | 4 | |
| 100 | BOUCHON RADIAT.*CAP-PRESSURE | 1 | |
| 130 | BOYAU ENTRE RAD*INLET HOSE | 1 | |
| 135a | TUBING 35 MM | 0 | |
| 140 | T-FITTING Package Cab | 1 | |
| 150 | PUMP HOSE | 1 | |
| 160 | BOYAU SORTIE *HOSE-OUTLET Except Package Cab | 1 | |
| 168 | Tie-Rap 350 mm | 0 | |
| 170 | T-FITTING | 1 | |
| 180 | HOSE | 1 | |
| 185 | HOSE | 1 | |
| 235 | HOSE | 1 | |
| 238 | Oetiker Gear Clamp | 1 | |
| 239 | Oetiker Gear Clamp | 1 | |
| 240 | HOSE | 1 | |
| 245 | HEATER TUBING | 2 | |
| 260 | OETIKER CLAMP | 8 | |
| 290 | NORMA SPRING CLAMP | 2 | |
| 300 | NORMA SPRING CLAMP | 1 | |
| 310 | NORMA SPRING CLAMP | 1 | |
| 330 | COOLANT TANK | 1 | |
| 332a | BLEEDER HOSE (3.000 per pack) | 0 | |
| 334 | Oetiker Gear Clamp | 1 | |
| 335 | BLEEDING HOSE | 1 | |
| 338 | Crimp Clamp | 5 | |
| 339 | Y-FITTING | 1 | |
| 340a | Tubing 16 mm | 0 | |
| 341 | Tie-Rap 180 mm | 2 | |
| 350a | Hose, Polyurethane | 0 | |
| 360 | Spring Clamp | 1 | |
| 370 | DEFLECTOR | 1 | |
| 372 | GRILL | 1 | |
| 374 | CLIP (5.000 per pack) | 2 | |
| 375 | Tuflok Plastic Rivet | 4 | |
| 410 | Retainer | 1 |
