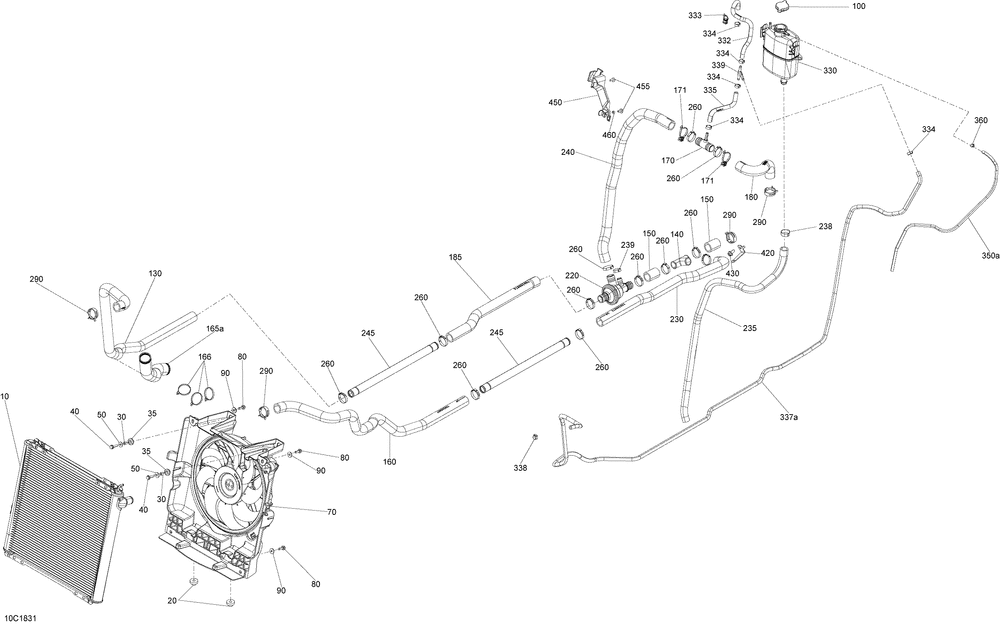

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 10 | RADIATOR | 1 | |
| 20 | Grommet | 2 | |
| 30 | Bushing | 2 | |
| 35 | Grommet | 2 | |
| 40 | Hex. Flanged Screw M6 X 25 | 2 | |
| 50 | Flat Washer 6 mm | 2 | |
| 70 | VENTILATEUR ASS*FAN ASS Y | 1 | |
| 80 | Hex. Flanged Screw M6 X 20 | 4 | |
| 100 | BOUCHON RADIAT.*CAP-PRESSURE | 1 | |
| 130 | INLET HOSE | 1 | |
| 140 | T-Fitting | 1 | |
| 150 | PUMP HOSE | 2 | |
| 160 | HOSE-OUTLET | 1 | |
| 165a | TUBING 35 MM | 0 | |
| 166 | Tie-Rap 350 mm | 3 | |
| 170 | T-FITTING | 1 | |
| 171 | Tie Rap Clip | 2 | |
| 180 | HOSE | 1 | |
| 185 | HOSE | 1 | |
| 220 | THERMOSTAT *THERMOSTAT | 1 | |
| 230 | HOSE-RAD | 1 | |
| 235 | HOSE | 1 | |
| 238 | Oetiker Gear Clamp | 1 | |
| 239 | Oetiker Gear Clamp | 1 | |
| 240 | HOSE | 1 | |
| 245 | HEATER TUBING | 2 | |
| 260 | OETIKER CLAMP | 12 | |
| 290 | NORMA SPRING CLAMP | 4 | |
| 330 | COOLANT TANK | 1 | |
| 332 | BLEEDING HOSE | 1 | |
| 333 | Tie-Rap Clip | 1 | |
| 334 | Crimp Clamp | 5 | |
| 335 | BLEEDING HOSE | 1 | |
| 337a | BOYAU *HOSE | 0 | |
| 338 | Oetiker Gear Clamp | 1 | |
| 339 | Y-FITTING | 1 | |
| 350a | POLYURETHANE HOSE (4000.00 per pack) | 0 | |
| 360 | Spring Clamp | 1 | |
| 420 | SUPPORT | 1 | |
| 430 | HEX. FLANGED SCREW M8 X 16 SCOTCH GRIP (2.000 per pack) | 1 | |
| 450 | SUPPORT | 1 | |
| 455 | SCREW PT TYPE K-50 X 16 | 2 | |
| 460 | BUSHING | 1 |
