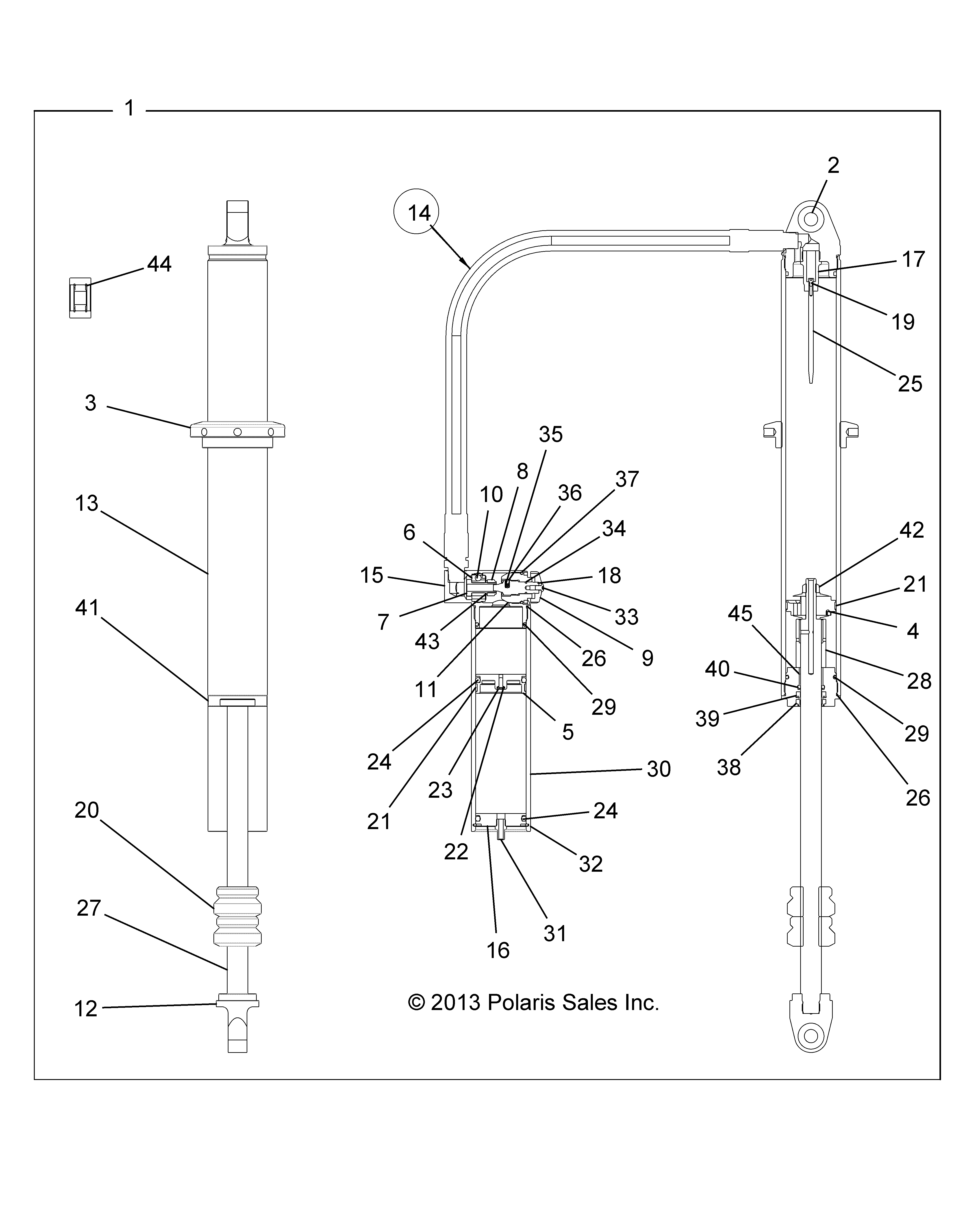

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SHOCK REAR 2.5 MP | 2 | |
| 2 | BEARING SPHERICAL | 2 | |
| 3 | NUT SPRING | 1 | |
| 4 | PISTON | 1 | |
| 5 | PISTON RESERVOIR | 1 | |
| 6 | VALVE CHECK | 1 | |
| 7 | BOLT CLICKER | 1 | |
| 8 | NUT-7/16 CRIMP | 1 | |
| 9 | KNOB ADJUSTER | 1 | |
| 10 | BALL | 1 | |
| 11 | NUT | 1 | |
| 12 | LOOP SHAFT | 1 | |
| 13 | BODY 2.5" 18.55L | 1 | |
| 14 | HOSE | 1 | |
| 15 | MOUNT RESERVOIR | 1 | |
| 16 | CAP END | 1 | |
| 17 | BOLT NEEDLE | 1 | |
| 18 | NUT | 1 | |
| 19 | SCREW ALLEN (100338) | 1 | |
| 20 | BUMPER (400301) | 2 | |
| 21 | BAND PISTON | 2 | |
| 22 | O-RING-BLEED SCREW | 1 | |
| 23 | BLEED SCREW (10) (10 per pack) | 1 | |
| 24 | O-RING | 2 | |
| 25 | NEEDLE | 1 | |
| 26 | O-RING | 2 | |
| 27 | SHAFT | 1 | |
| 28 | SPACER | 1 | |
| 29 | O-RING | 2 | |
| 30 | BODY RESERVOIR | 1 | |
| 31 | SHRADER VALVE | 1 | |
| 32 | RING RETAINING | 1 | |
| 33 | SCREW 10X5/8 BTN SS (500603) | 1 | |
| 34 | O-RINGSTUD | 1 | |
| 35 | SPRING-D-TENT(10) (10 per pack) | 1 | |
| 36 | BALL-D-TENT(10) (10 per pack) | 1 | |
| 37 | O-RING | 1 | |
| 38 | WIPER | 1 | |
| 39 | SEAL SHAFT | 1 | |
| 40 | O-RING | 1 | |
| 41 | SEAL HEAD | 1 | |
| 42 | NUT NYLOCK | 1 | |
| 43 | SCREW | 1 | |
| 44 | SNAP RING | 4 | |
| 45 | BUSHING SHAFT | 1 |
