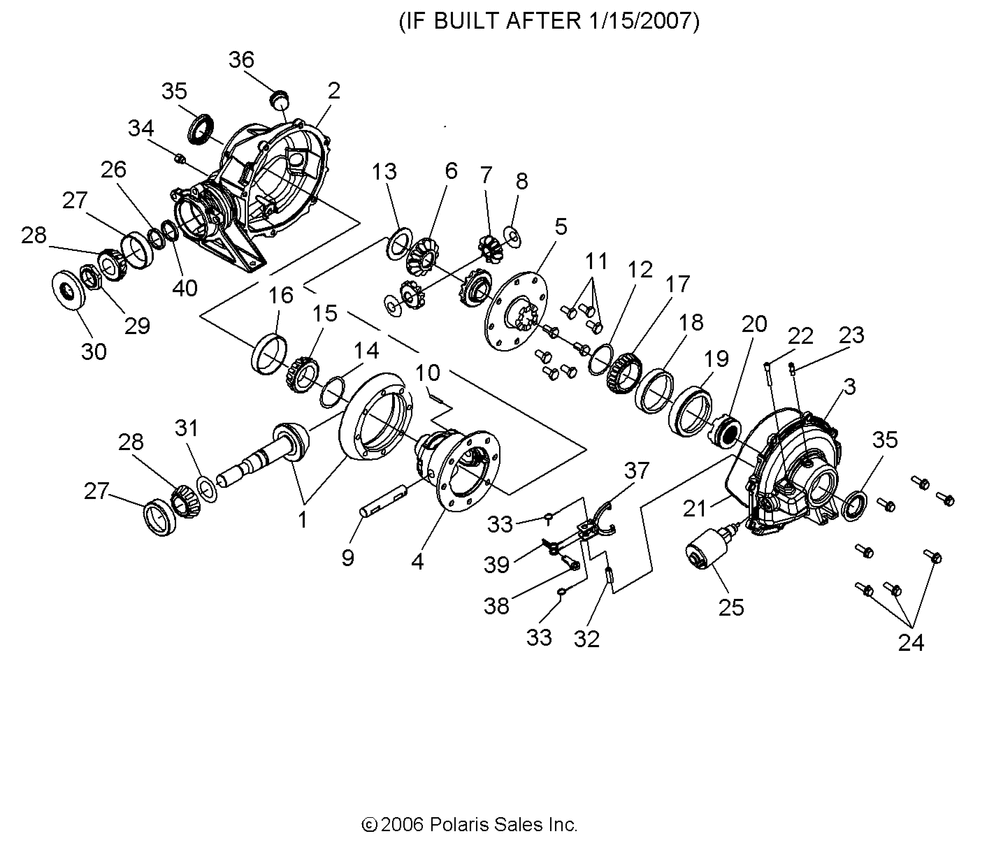

GEARCASE REAR (BUILT AFTER 1 / 15 / 07) - R07RB50AA / RH50AA (49RGRGEARCASERR077004X4)

Корзина пуста
Polaris R07RB50AA/RH50AA RANGER 500 2X4/4X4 R07RB50AA/RH50AA RANGER 500 2X4/4X4 GEARCASE REAR (BUILT AFTER 1 / 15 / 07) - R07RB50AA / RH50AA (49RGRGEARCASERR077004X4)
GEARCASE REAR (BUILT AFTER 1 / 15 / 07) - R07RB50AA / RH50AA (49RGRGEARCASERR077004X4)
№ Наименование Примечание Кол-во
KIT-HOUSING ASM. [Incl. 12112326-313540 and 2875333] 1
ASM-GEARCASEREARDIFF4140 1
KIT-DIFFERENTIALSHIM 1
1 K-HYP ASSY(026KG102) 1
2 HOUSING-CARRIER 1
3 COVER-CARRIER 1
4 CASE-HALFDIFF026DC105 1
5 COVER-HALFDIFF CASE026DC104 1
6 GEAR-SIDEDIFF026GD100 2
7 GEAR-PINIONMATEDIFF51451 2
8 WASHER-THRUSTPINION34096 2
9 PIN-CROSSDIFF026DP101 1
10 PIN-SPRING(500596-15) 1
11 BOLT-HEX 41221 8
13 WASHER-THRSTSIDEGEAR026HS108 1
15 BEARING-CONEDIFF 550433 1
16 BEARING-DIFF 585911 1
17 ROLLER-BEARING 1
18 CUP-BEARING 1
19 CUP-BEARING 1
20 GEAR-CLUTCH 1
21 O-RING-HOUSING HALVES 026HH103 1
22 PIN-LOCK ASM. 1
23 VENT-TUBE 026HN106 1
24 BOLT-HEXFLANGED026HM103 7
25 SOLENOID-DIFF.LOCK 1
26 KIT-SPACER 0
27 BEARING-CUPPINION 3514431 2
28 BEARING-CONEPINION 585974 2
29 NUT-PINION 026HN104 1
30 SEAL-OILPINION 026HH102 1
32 BUSHING-LOCKPIN 1
33 SPRING-RETURNSHIFT 026HE101 2
34 PLUG-DRAIN 1
35 SEAL-OILSHAFT026HH115 2
36 PLUG-FILL/CHECK 1
37 YOKE-SHIFT 026SV100 1
38 LEVER-SHIFT 026SV101 1
39 SPRING-LEVERSHIFT 026HE100 1
40 SPACER-PINION 1
