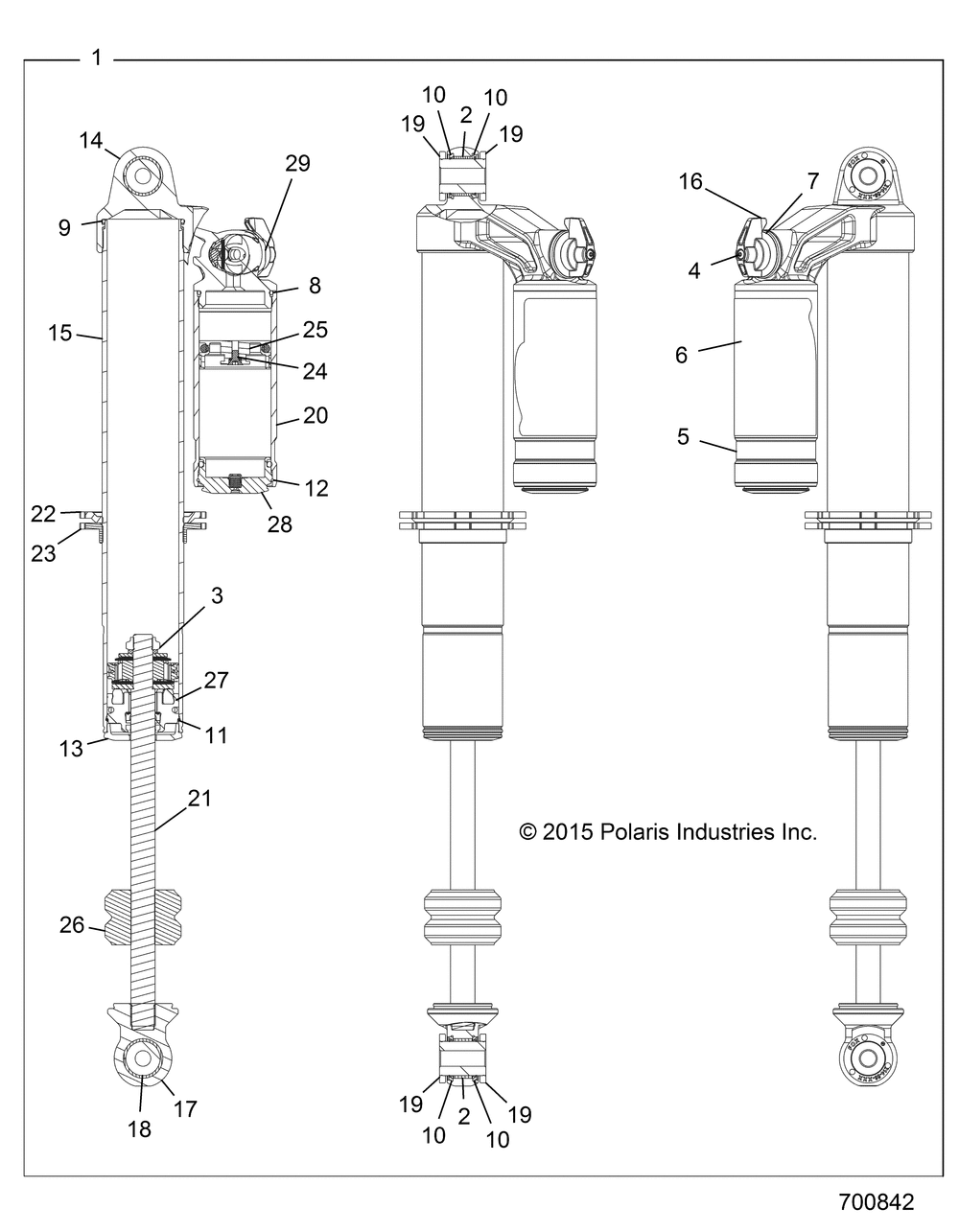

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH ? 0.620 SHAFT] | 1 | |
| 1 | SHOCK-FRONTPIGGYBKLH | 1 | |
| 1 | SHOCK-FRONTPIGGYBKRH | 1 | |
| 2 | BUSHING EYELET 014-20-002 | 2 | |
| 3 | NUT-LOCK | 1 | |
| 4 | SCREW tahos_4 SS PAN 018-01-036 | 1 | |
| 5 | DECAL PERF SERIES 024-00-283 | 1 | |
| 6 | DECAL RESERVOIR | 1 | |
| 7 | DECAL-BASE VALVE 3P 024-00-316 | 1 | |
| 8 | O-RING | 1 | |
| 9 | O-RING | 1 | |
| 10 | SEAL WEATHER 036-02-076 | 4 | |
| 11 | RINGRETAINING | 1 | |
| 12 | RING RET. WIRE 038-01-022 | 1 | |
| 13 | CAP BEARING | 1 | |
| 14 | BODY CAP 135DEG. PG | 1 | |
| 14 | BODY CAP 45DEG. PB | 1 | |
| 15 | BODY 1.83X13.1TLG | 1 | |
| 16 | KNOB DAMP ADJ BLK 210-35-166 | 1 | |
| 17 | EYELET SHAFT | 1 | |
| 18 | EYELET PART: SLEEVE .397 ID X .875 OD X 1.181 TLG | 2 | |
| 19 | EYELET PART: SPACER .876 ID X 1.25 OD X .150 TLG | 4 | |
| 20 | RESERVOIR 5" THD. | 1 | |
| 21 | SHAFT .62X10.1TLG | 1 | |
| 22 | RINGPRELOADBACK (234-00-275) | 1 | |
| 23 | RINGPRELOAD (234-00-276) | 1 | |
| 24 | SCREW/O-RING ASM. | 1 | |
| 25 | ASM. PISTON FLOAT | 1 | |
| 26 | BUMPERB/O SHAFT 008-02-025 | 1 | |
| 27 | ASM. BEARING | 1 | |
| 28 | ASM. END CAP RES 813-00-086 | 1 | |
| 29 | ASMDAMP ADJ. 815-04-085 | 1 |
