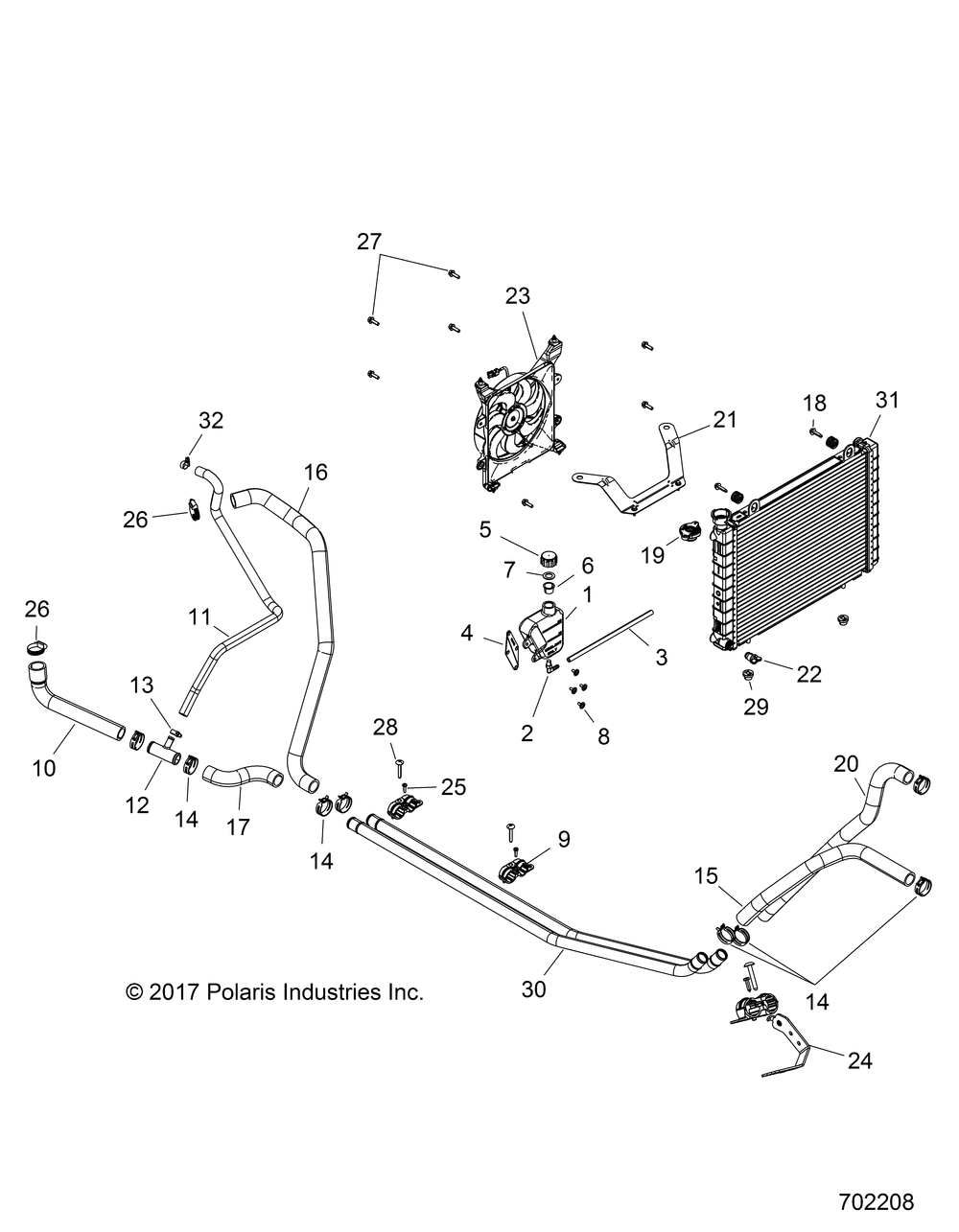

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANK-SURGE | 1 | |
| 2 | FITTING90 DEGREE (10) (10 per pack) | 1 | |
| 3 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 4 | BRKT-SURGE TANK | 1 | |
| 5 | CAP OVERFLOW | 1 | |
| 6 | CAPPLUG9X(GRN)FLEX TEMP(10) | 1 | |
| 7 | GASKET (10) (10 per pack) | 1 | |
| 8 | SCREW(10) (10 per pack) | 4 | |
| 9 | BRACKET-COOLANT TUBE | 3 | |
| 10 | HOSE-BYPASS1IN FORMED | 1 | |
| 11 | HOSE-BYPASS1/2IN FORMED | 1 | |
| 12 | CONNECTOR-TEE1X1X0.5 | 1 | |
| 13 | CLAMP HOSE (10) (10 per pack) | 2 | |
| 14 | CLAMPSPRINGBAND 32/12 (10) (10 per pack) | 8 | |
| 15 | HOSE-LOWERRAD | 1 | |
| 16 | HOSE-ENGINE OUTLETREAR | 1 | |
| 17 | HOSE-LOWER ENGINESHORT | 1 | |
| 18 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 3 | |
| 19 | SCREW(10) (10 per pack) | 3 | |
| 20 | CAP-PRESSURE | 1 | |
| 21 | HOSE-UPPERRAD | 1 | |
| 22 | BRKT-RAD MNTBLK | 1 | |
| 23 | VALVE-PLASTIC RAD/COOLER DRAIN | 1 | |
| 24 | FAN-ASSEMBLYSHROUD | 1 | |
| 25 | BRKT-COOLANT TUBE MNTBLK | 1 | |
| 26 | CLAMP-HOSE(WORM DR)25-40MM (Worm Drive) | 2 | |
| 27 | SCREW | 4 | |
| 28 | SCR-M6X1X40TR/TX-M | 3 | |
| 29 | GROMMET | 4 | |
| 31 | ASM-RADIATOR [INCL 19-20] | 1 | |
| 31 | ASM-RADIATORCORE | 1 |
