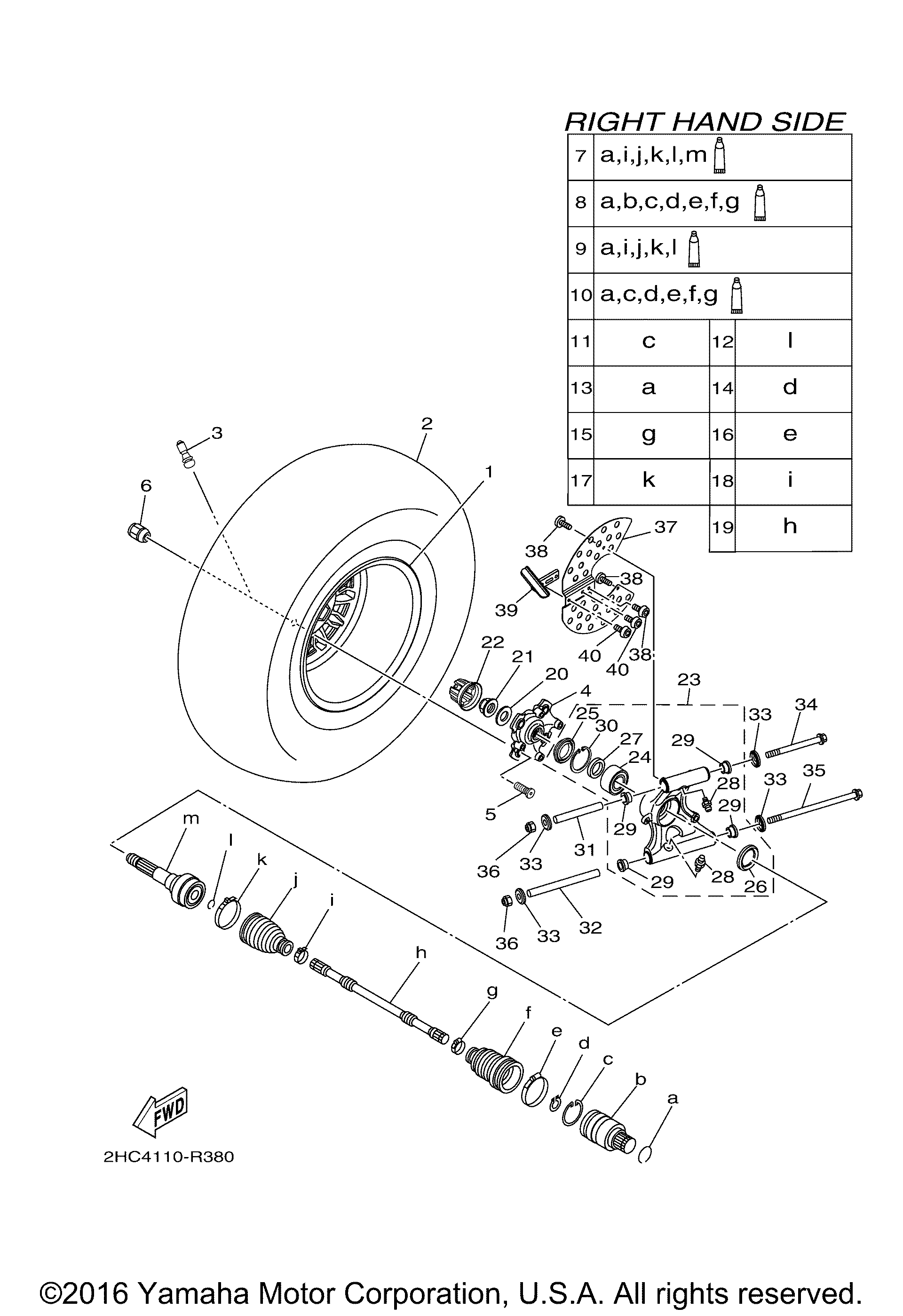

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WHEEL CAST 2 | 1 | |
| 2 | TIRE (27X11.00R14 (27X11.00R14 MU10 6PR TL) MAXXIS | 1 | |
| 3 | VALVE RIM (TR413) MAXXIS | 1 | |
| 4 | HUB FRONT | 1 | |
| 5 | BOLT SERRATION | 4 | |
| 6 | NUT CROWN | 4 | |
| 7 | BALL JOINT SET | 1 | |
| 8 | DOUBLE OFF SET JOINT | 1 | |
| 9 | BOOT SET (BALL JOINT (BALL JOINT) | 1 | |
| 10 | BOOT SET(DOUBLE OFFS (DOUBLE OFFSET JOINT) | 1 | |
| 11 | CLIP SPRING | 1 | |
| 12 | RING 1 | 1 | |
| 13 | CLIP SPRING | 1 | |
| 14 | SNAP RING | 1 | |
| 15 | BAND | 1 | |
| 16 | BAND | 1 | |
| 17 | BOOT BAND (SMALL) (SMALL) | 1 | |
| 18 | BAND | 1 | |
| 19 | SHAFT | 1 | |
| 20 | WASHER PLATE | 1 | |
| 21 | NUT | 1 | |
| 22 | CAP WHEEL | 1 | |
| 23 | REAR KNUCKLE ASSY. | 1 | |
| 24 | BEARING | 1 | |
| 25 | OIL SEAL | 1 | |
| 26 | OIL SEAL | 1 | |
| 27 | COLLAR | 1 | |
| 28 | NIPPLEGREASE | 2 | |
| 29 | BUSH SOLID | 4 | |
| 31 | COLLAR | 1 | |
| 32 | COLLAR | 1 | |
| 33 | COVER THRUST 1 | 4 | |
| 34 | BOLT FLANGE | 1 | |
| 35 | BOLT FLANGE | 1 | |
| 36 | NUT SELF-LOCKING | 2 | |
| 37 | RING WHEEL RR. 2 | 1 | |
| 38 | BOLTHEX. SOCKET B | 3 | |
| 39 | PLATE GUIDE 2 | 1 | |
| 40 | BOLT BUTTON HEAD | 2 |
