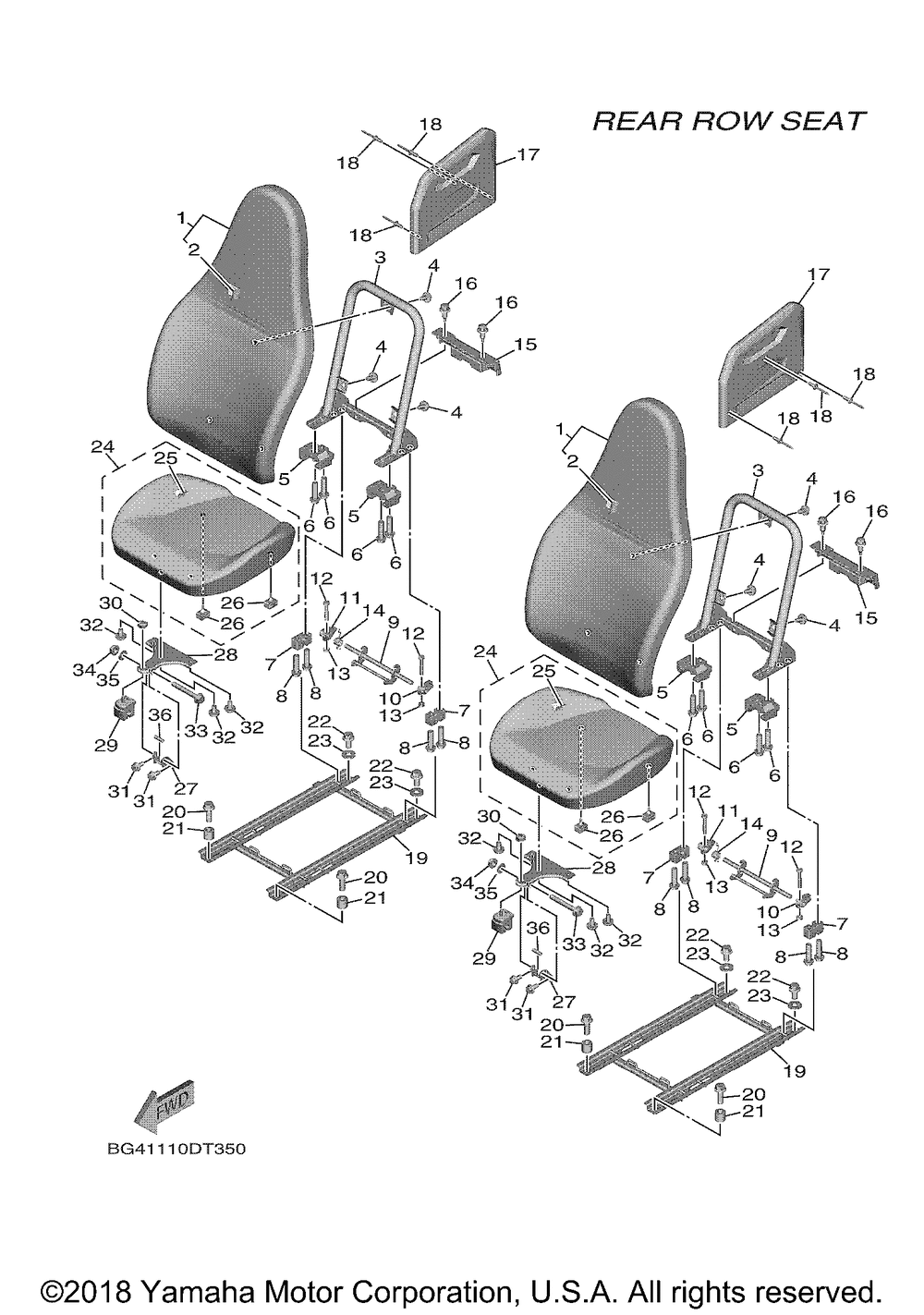

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT BACK ASSY | 2 | |
| 2 | COVER SINGLE SEAT | 1 | |
| 3 | FRAME SEAT 3 | 2 | |
| 4 | BOLT SEAT FITTING | 6 | |
| 5 | SLIDER | 4 | |
| 6 | BOLT FLANGE | 8 | |
| 7 | DAMPER LOCATING 1 | 4 | |
| 8 | BOLT FLANGE | 8 | |
| 9 | LATCH ASY | 2 | |
| 10 | CAM 1 | 2 | |
| 11 | CAM 2 | 2 | |
| 12 | BOLT | 4 | |
| 13 | NUT (5 per pack) | 4 | |
| 14 | SEAT SPRING | 2 | |
| 15 | COVER HANDLE UPPE | 2 | |
| 16 | RIVETSPEC'L SHAPE | 4 | |
| 17 | COVER2 | 2 | |
| 18 | RIVET BLIND | 6 | |
| 19 | SEAT RAIL ASSY 1 | 2 | |
| 20 | BOLTFLANGE(4LN) | 4 | |
| 21 | COLLAR | 4 | |
| 22 | BOLTFLANGE (JN5) | 4 | |
| 23 | WASHER PLATE | 4 | |
| 24 | SEAT ASSY | 2 | |
| 25 | COVER SEAT | 1 | |
| 27 | BRACKET HINGE | 2 | |
| 28 | HINGESEAT | 2 | |
| 29 | RUBBER DAMPING | 2 | |
| 30 | NUTU FLANGE | 2 | |
| 31 | BOLT FLANGE | 4 | |
| 33 | BOLTFLANGE | 2 | |
| 34 | NUTU | 2 | |
| 35 | WASHERPLATE | 2 | |
| 36 | COLLAR | 2 |
