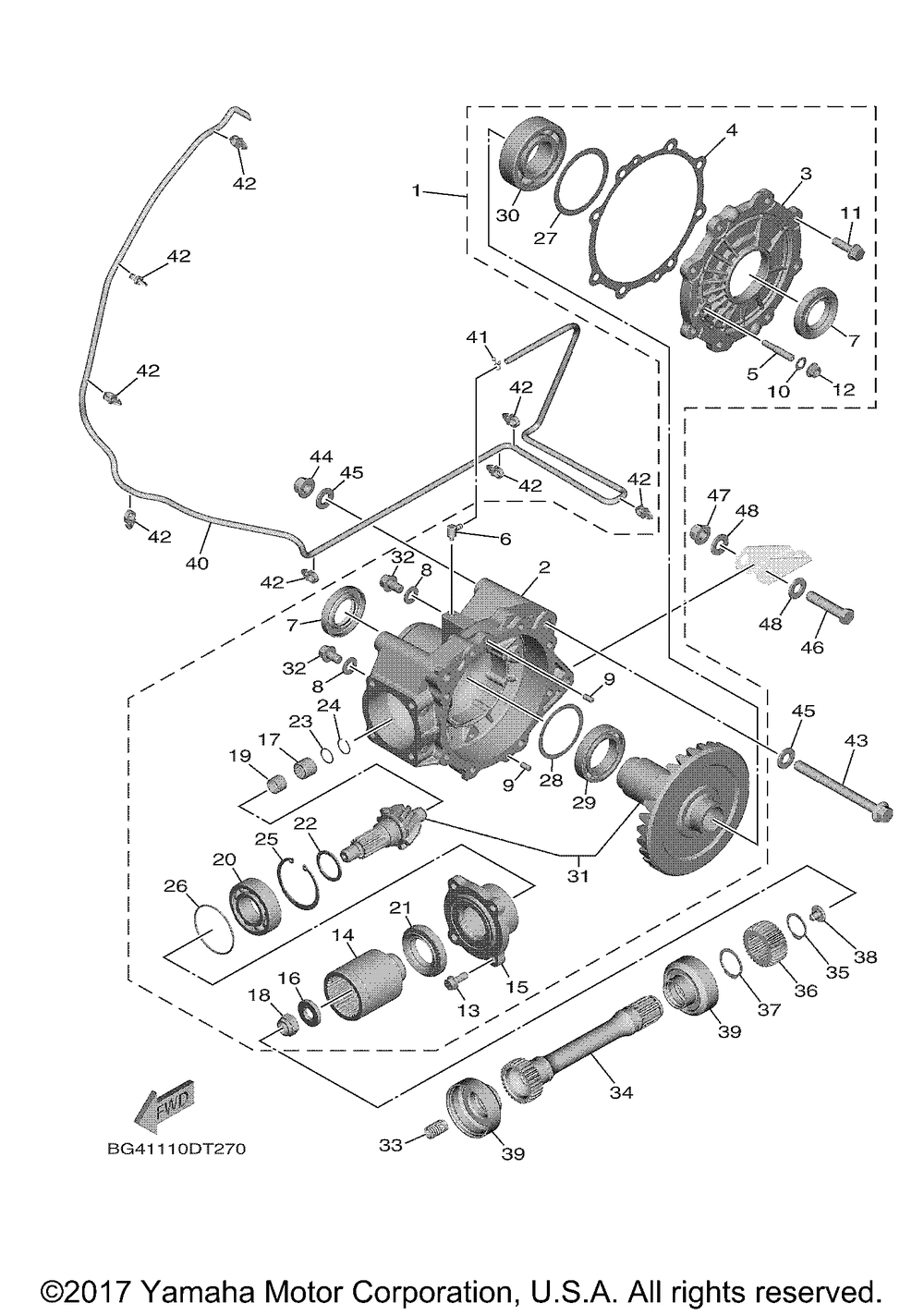

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RR AXL GR CASE ASY | 1 | |
| 2 | HOUSING DRIVE SHA | 1 | |
| 3 | HOUSING BEARING | 1 | |
| 4 | GSKT. CASE | 1 | |
| 5 | STOPPER RING GEAR | 1 | |
| 6 | BREATHER | 1 | |
| 7 | OIL SEAL | 2 | |
| 8 | GASKET | 2 | |
| 9 | ROLLER | 2 | |
| 10 | GASKET | 1 | |
| 11 | BOLT | 8 | |
| 12 | NUT ADJUSTING | 1 | |
| 13 | BOLT LOCK PLATE | 4 | |
| 14 | COUPLING | 1 | |
| 15 | COVER | 1 | |
| 16 | WASHER 1 | 1 | |
| 17 | BEARING 1 | 1 | |
| 18 | NUT LOCK | 1 | |
| 19 | CLIP | 1 | |
| 20 | BEARING | 1 | |
| 22 | WHEEL SPROCKET 1 | 1 | |
| 23 | WASHERLOCK | 1 | |
| 24 | RINGRETAINER | 1 | |
| 25 | CLIP | 1 | |
| 26 | OIL RING PISTON | 1 | |
| 27 | SHIM | 1 | |
| 28 | SHIM | 1 | |
| 30 | BEARING 2 | 1 | |
| 31 | RING GEAR SET | 1 | |
| 32 | BOLT | 2 | |
| 33 | SPRINGCOMPRESSION | 1 | |
| 34 | SHAFT DRIVE | 1 | |
| 35 | CIRCLIPS-TYPE | 1 | |
| 36 | COUPLING | 1 | |
| 37 | CIRCLIP | 1 | |
| 38 | DAMPER | 1 | |
| 39 | SEAL 2 | 2 | |
| 41 | CLIPSCISSOR | 1 | |
| 42 | CLAMP | 8 | |
| 43 | BOLT FLANGE | 2 | |
| 44 | NUT SELF-LOCKING | 2 | |
| 45 | WASHER PLATE | 4 | |
| 46 | BOLT | 1 |
