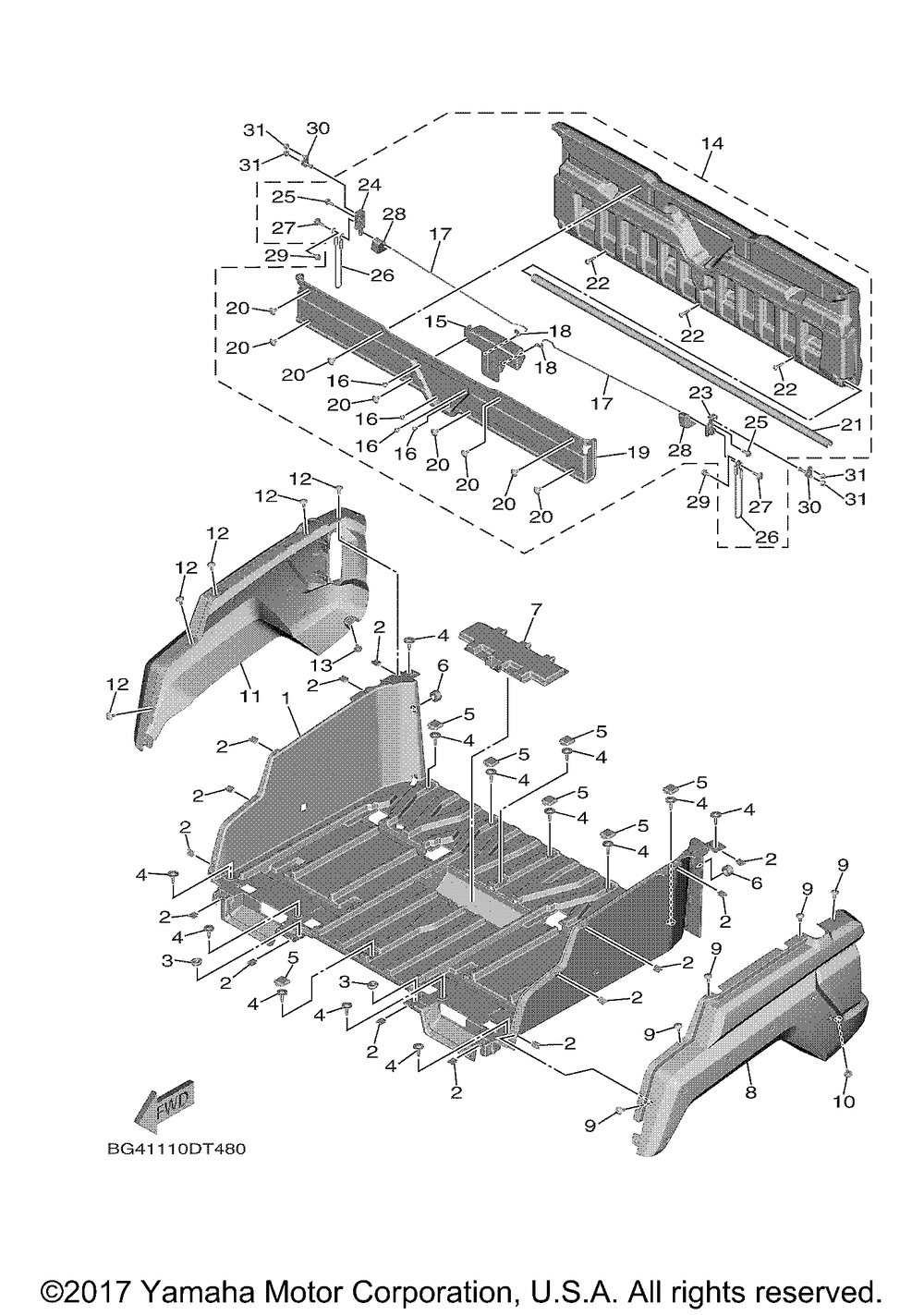

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOX | 1 | |
| 2 | NUT SPRING | 14 | |
| 3 | GROMMET | 2 | |
| 4 | BOLT | 13 | |
| 5 | CAP | 7 | |
| 6 | DAMPER SEAT | 2 | |
| 7 | BELT BODY HOLDER | 1 | |
| 8 | PANEL REAR FENDER | 1 | |
| 9 | BOLTHEX SKT HEAD | 5 | |
| 10 | BOLT | 1 | |
| 11 | PANEL REAR FENDER | 1 | |
| 14 | REAR STORAGE LID C | 1 | |
| 15 | HANDLE LATCH | 1 | |
| 16 | BOLTHEX. SOCKET B | 4 | |
| 17 | ROD | 2 | |
| 18 | CLIP CABLE | 2 | |
| 19 | COVER | 1 | |
| 20 | BOLTHEX SKT HEAD | 8 | |
| 21 | HINGE 2 | 1 | |
| 22 | SCREW | 3 | |
| 23 | LOCK ASSY | 1 | |
| 24 | LOCK ASSY 2 | 1 | |
| 25 | BOLTFLANGE | 2 | |
| 26 | HOLDER CABLE | 2 | |
| 27 | BOLT | 2 | |
| 28 | DAMPER 2 | 2 | |
| 30 | BOLT STUD | 2 | |
| 31 | NUT-U | 4 |
