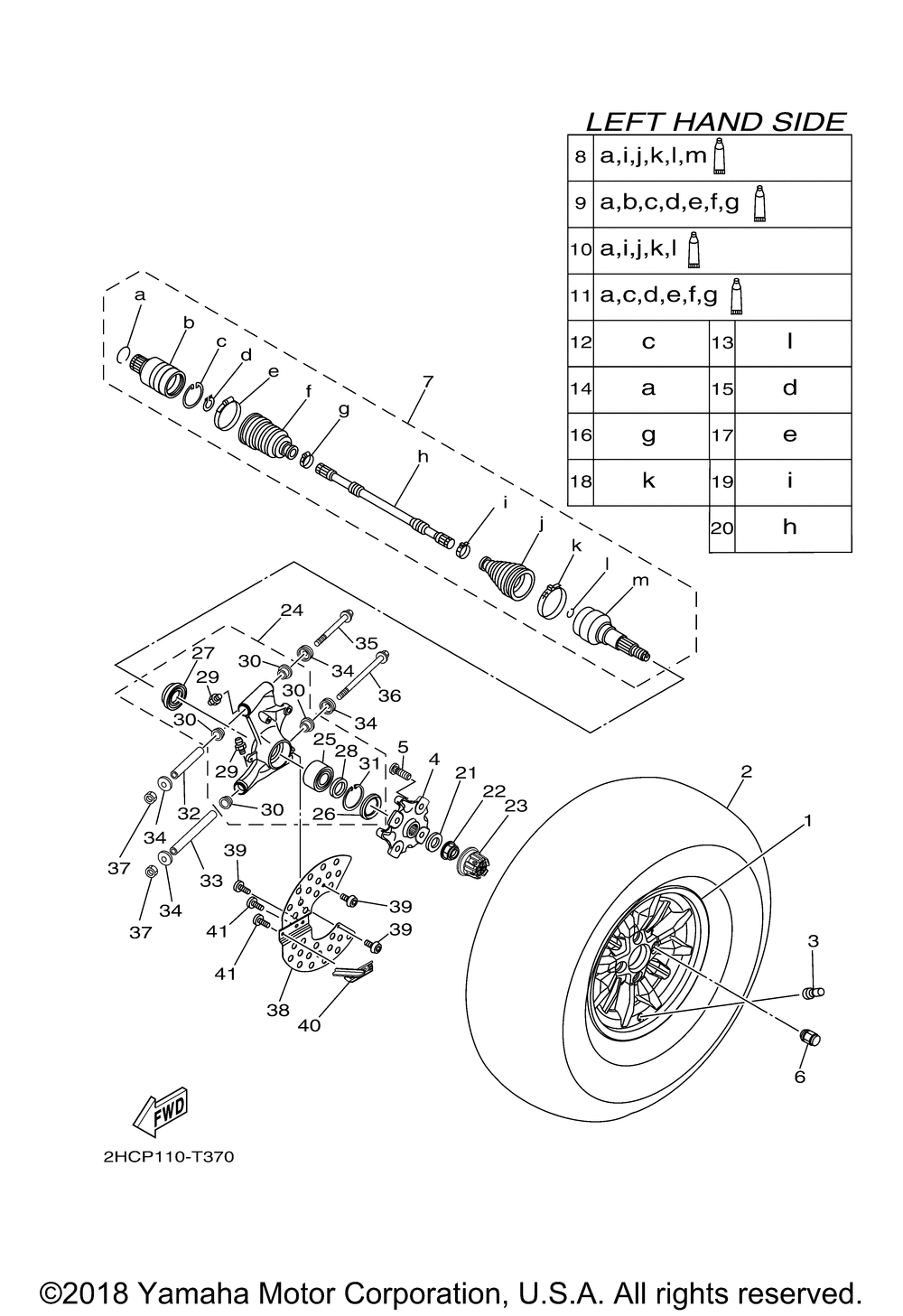

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WHEEL CAST 2 | 1 | |
| 2 | TIRE (27X11.00R14 (27X11.00R14 MU10 6PR TL) MAXXIS | 1 | |
| 3 | VALVE RIM (TR413) MAXXIS | 1 | |
| 4 | HUB FRONT | 1 | |
| 5 | BOLT SERRATION | 4 | |
| 6 | NUT CROWN | 4 | |
| 7 | REAR DRIVE SHAFT ASSY | 1 | |
| 8 | BALL JOINT SET | 1 | |
| 9 | DOUBLE OFF SET JOINT | 1 | |
| 10 | BOOT SET (BALL JOINT (BALL JOINT) | 1 | |
| 11 | BOOT SET(DOUBLE OFFS (DOUBLE OFFSET JOINT) | 1 | |
| 12 | CLIP SPRING | 1 | |
| 13 | RING 1 | 1 | |
| 14 | CLIP SPRING | 1 | |
| 15 | SNAP RING | 1 | |
| 16 | BAND | 1 | |
| 17 | BAND | 1 | |
| 18 | BOOT BAND (SMALL) (SMALL) | 1 | |
| 19 | BAND | 1 | |
| 20 | SHAFT | 1 | |
| 21 | WASHER PLATE | 1 | |
| 22 | NUT | 1 | |
| 23 | CAP WHEEL | 1 | |
| 24 | REAR KNUCKLE ASSY | 1 | |
| 25 | BEARING | 1 | |
| 26 | OIL SEAL | 1 | |
| 27 | OIL SEAL | 1 | |
| 28 | COLLAR | 1 | |
| 29 | NIPPLEGREASE | 2 | |
| 30 | BUSH SOLID | 4 | |
| 31 | CIRCLIP (70R) | 1 | |
| 32 | COLLAR | 1 | |
| 33 | COLLAR | 1 | |
| 34 | COVER THRUST 1 | 4 | |
| 35 | BOLT FLANGE | 1 | |
| 36 | BOLT FLANGE | 1 | |
| 37 | NUT SELF-LOCKING | 2 | |
| 38 | RING WHEEL RR. 1 | 1 | |
| 39 | BOLTHEX. SOCKET B | 3 | |
| 40 | PLATE GUIDE 1 | 1 | |
| 41 | BOLT BUTTON HEAD | 2 |
