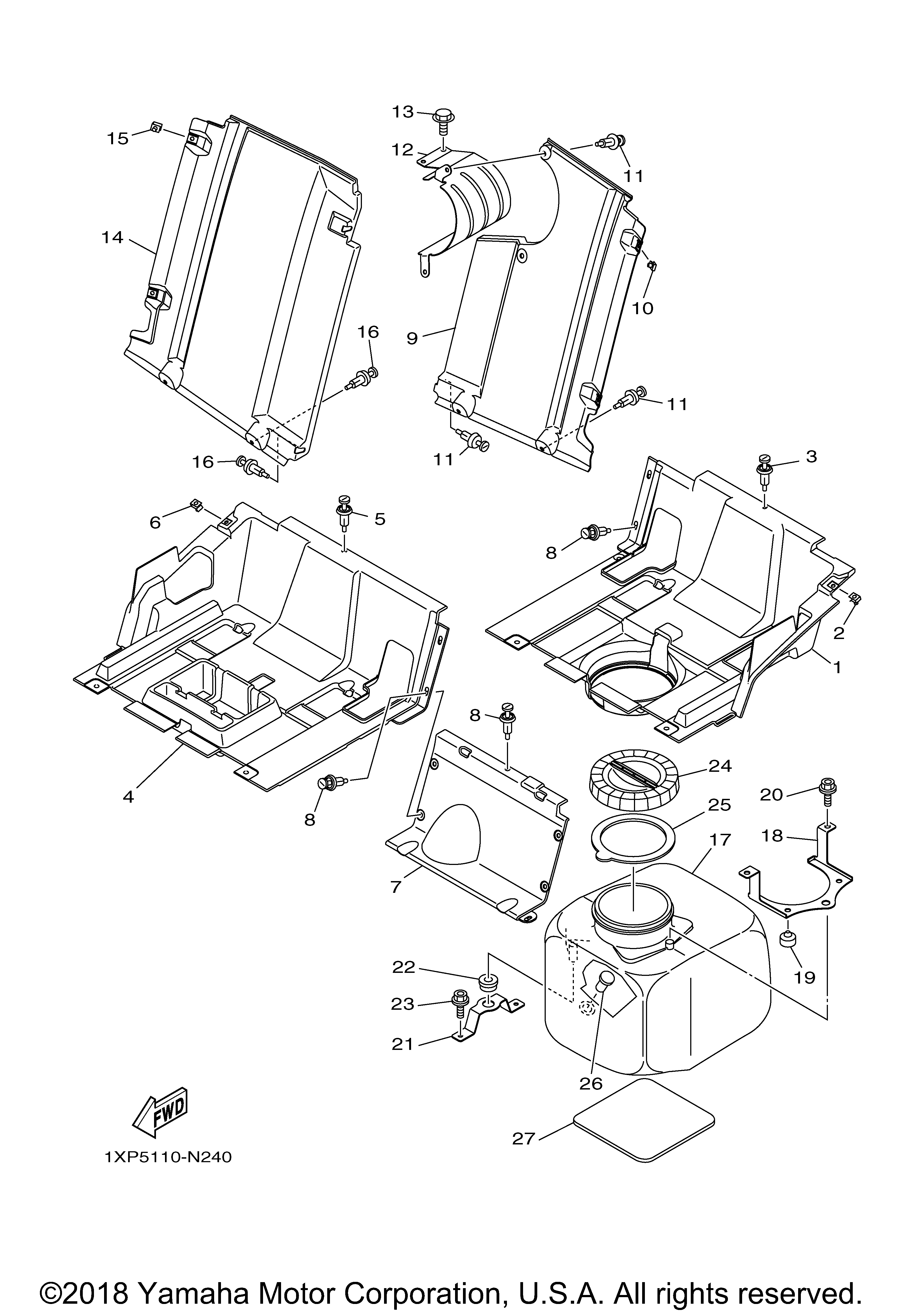

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PLATE UNDER 1 | 1 | |
| 2 | NUT SPRING | 1 | |
| 3 | RIVET | 2 | |
| 4 | PLATE UNDER 2 | 1 | |
| 7 | PLATE UNDER 3 | 1 | |
| 9 | MUD GUARD 1 | 1 | |
| 12 | PANEL 1 | 1 | |
| 13 | BOLT FLANGE | 2 | |
| 14 | MUD GUARD 2 | 1 | |
| 17 | BOX 1 | 1 | |
| 18 | BRKT. CANISTER | 1 | |
| 19 | PADSEAT | 2 | |
| 21 | BRKT. FR. STORAGE | 1 | |
| 22 | GROMMET | 1 | |
| 23 | BOLT FLANGE | 2 | |
| 24 | CAP | 1 | |
| 25 | SEAL | 1 | |
| 26 | PLUG BLIND | 1 | |
| 27 | DAMPER PLATE | 1 |
