Наименование |
Примечание |
Кол-во |
| - |
SCREW
|
|
2 |
| - |
G/C AYM2 CORO WHT White Models Less Driveshaft & Shift Shaft
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
SCREENWATER INLET
|
|
1 |
| - |
CUPIMP HSG-CHROME Chrome
|
|
1 |
| - |
PLATE WATER PUMP Chrome
|
|
1 |
| 1 |

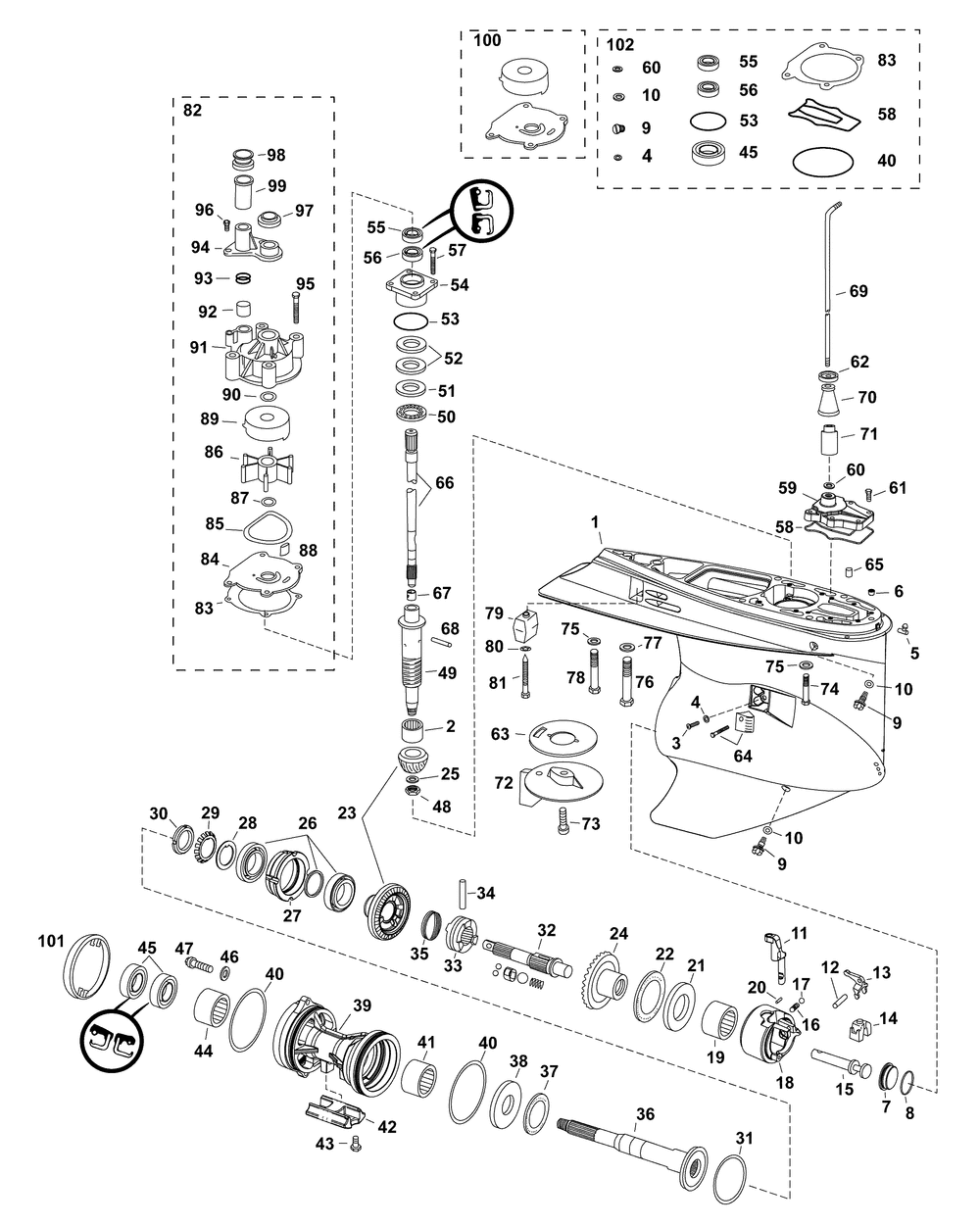

GEARCASE & BRG AY
|
|
1 |
| 2 |
BEARING AYROLLER
|
|
1 |
| 3 |
RETAINING SCREW
|
|
1 |
| 4 |
WASHER 5PK (005 per pack)
|
|
1 |
| 5 |
NIPPLE
|
|
1 |
| 6 |
PLUG LARGE MANIFD
|
|
1 |
| 7 |
PLUG&O-RING AY
|
|
1 |
| 8 |
O-RING
|
|
1 |
| 9 |
DRAIN SCREW Contents of GEARCASE SEAL KIT
|
|
2 |
| 10 |
WASHER-10 PK (010 per pack)
|
|
1 |
| 11 |
DETENT
|
|
1 |
| 12 |
PINDOWEL
|
|
1 |
| 13 |
LEVER-SHIFTER
|
|
1 |
| 14 |
CRADLE-SHIFT
|
|
1 |
| 15 |
SHAFTSHIFTER
|
|
1 |
| 16 |
SPRING
|
|
1 |
| 17 |
BALL
|
|
1 |
| 18 |
HOUSING AYSHIFTER
|
|
1 |
| 19 |
BRG AY-FWD GEAR
|
|
1 |
| 20 |
PIN
|
|
1 |
| 21 |
WASHERTHRUST
|
|
1 |
| 22 |
BEARING AY
|
|
1 |
| 23 |
GEARSETMAGNM CORO Ratio
|
|
1 |
| 24 |
GEAR & BEARING AY
|
|
1 |
| 25 |
WASHER
|
|
1 |
| 26 |
BRG & SPACER AYM2
|
|
1 |
| 27 |
HOUSINGBEARING
|
|
1 |
| 28 |
WASHERTHRUST
|
|
1 |
| 29 |
WASHERLOCK
|
|
1 |
| 30 |
NUTSPANNER
|
|
1 |
| 31 |
SHIM-.0030
|
|
0 |
| 31 |
SHIM .004" FWD
|
|
0 |
| 31 |
SHIM .005" FWD
|
|
0 |
| 31 |
SHIM-.010
|
|
0 |
| 32 |
SHAFT AYCLUTCH Contact Dealer Support
|
|
1 |
| 33 |
SHIFTER-CLUTCH DOG
|
|
1 |
| 34 |
PIN
|
|
1 |
| 35 |
SPRING
|
|
1 |
| 36 |
SHAFT AYPROPELLER
|
|
1 |
| 37 |
BEARING AYTHRUST
|
|
1 |
| 38 |
WASHER
|
|
1 |
| 39 |
P/S BRG HSG CORO
|
|
1 |
| 40 |
O-RING
|
|
2 |
| 41 |
BRG AYNEEDLE
|
|
1 |
| 42 |
ANODE & INSERT AY
|
|
1 |
| 43 |
SCREW
|
|
2 |
| 44 |
BEARING AYNEEDLE
|
|
1 |
| 45 |
SEAL Contents of GEARCASE SEAL KIT
|
|
2 |
| 46 |
WASHER
|
|
2 |
| 47 |
SCREW
|
|
2 |
| 48 |
NUT PINION
|
|
1 |
| 49 |
DRIVESHAFTLOWER
|
|
1 |
| 50 |
THRUST BRG AY
|
|
1 |
| 51 |
THRUST WASHER
|
|
1 |
| 52 |
SHIM-PINION-003
|
|
0 |
| 52 |
SHIM-PINION-004
|
|
0 |
| 52 |
SHIM 005
|
|
0 |
| 54 |
DS BRG HSG&SEAL AY
|
|
1 |
| 55 |
OIL RETAINER Contents of GEARCASE SEAL KIT
|
|
1 |
| 56 |
OIL RETAINER Contents of GEARCASE SEAL KIT
|
|
1 |
| 57 |
SCREW Contents of GEARCASE SEAL KIT
|
|
4 |
| 58 |
SEAL Contents of GEARCASE SEAL KIT
|
|
1 |
| 59 |
COVER AYSHIFT ROD
|
|
1 |
| 60 |
O-RING (005 per pack)
|
|
1 |
| 61 |
SCREW
|
|
6 |
| 62 |
GROMMET EXH HSG
|
|
1 |
| 63 |
SEAL
|
|
1 |
| 64 |
KIT AYWTR SCN/MAG Optional Height Flush
|
|
0 |
| 64 |
KIT AYWTR SCN MAG Optional Height +0.060 in. (1.52 mm)
|
|
1 |
| 64 |
KIT AYWTR SCREEN 200HCX DE200 CX / 225DCX
|
|
1 |
| 64 |
KIT AYWTR SCREEN Optional Height + 0.410 in. (10.4 mm)
|
|
0 |
| 65 |
PIN (SLEEVE)
|
|
2 |
| 66 |
KITUPPER D/S-25" 25 in. Models
|
|
1 |
| 66 |
KITUPPR D/S 30" 30 in. Models
|
|
1 |
| 67 |
RETAINERDR SFT
|
|
1 |
| 68 |
PINROLL
|
|
1 |
| 69 |
SHIFT ROD 25" MAG
|
|
1 |
| 69 |
SHIFT ROD 30" MAG
|
|
1 |
| 70 |
SPACER-SHIFT ROD 25 30 in. Models
|
|
1 |
| 71 |
EXTENSIONSPACER 30 in. Models
|
|
1 |
| 72 |
TABTRIM-C/R
|
|
1 |
| 73 |
SCREW
|
|
1 |
| 74 |
SCREW
|
|
4 |
| 75 |
WASHER
|
|
5 |
| 76 |
SCREW
|
|
1 |
| 77 |
WASHER
|
|
1 |
| 78 |
SCREW
|
|
1 |
| 79 |
ANODE&INSERT AY
|
|
1 |
| 80 |
LOCKWASHER
|
|
1 |
| 81 |
SCREWANODE
|
|
1 |
| 82 |
KIT AYWATER PUMP 3.4 L models
|
|
1 |
| 82 |
KIT AYWATER PUMP 3.3 L models
|
|
1 |
| 83 |
GASKETWTR PMP 5PK Contents of GEARCASE SEAL KIT (005 per pack)
|
|
1 |
| 84 |
PLATEWATER PUMP Stainless
|
|
1 |
| 85 |
SEAL
|
|
1 |
| 86 |
KIT AYIMPELLER
|
|
1 |
| 87 |
O RING
|
|
1 |
| 88 |
IMP KEY-WHITE
|
|
1 |
| 89 |
CUPIMP HOUSING Stainless
|
|
1 |
| 90 |
O-RING (005 per pack)
|
|
1 |
| 91 |
HOUSING AYIMPLR 3.3 L models
|
|
1 |
| 92 |
GROMMET 3.3 L models
|
|
1 |
| 94 |
COVERIMPELLER HSG 3.4 L models
|
|
1 |
| 94 |
COVERIMPELLER HSG 3.3 L models
|
|
1 |
| 95 |
SCREW (005 per pack)
|
|
4 |
| 96 |
SCREW
|
|
2 |
| 97 |
GROMMET
|
|
1 |
| 98 |
GROMMET
|
|
1 |
| 99 |
SLEEVE 25 in. Models
|
|
1 |
| 99 |
SLEEVE 30 in. Models
|
|
1 |
| 100 |
CUP & PLATE AY Optional
|
|
1 |
| 101 |
WEED RING-4 BLD Optional Use with Renegade Bass Propeller
|
|
1 |
| 102 |
KITG/C SEAL-SLE
|
|
1 |
