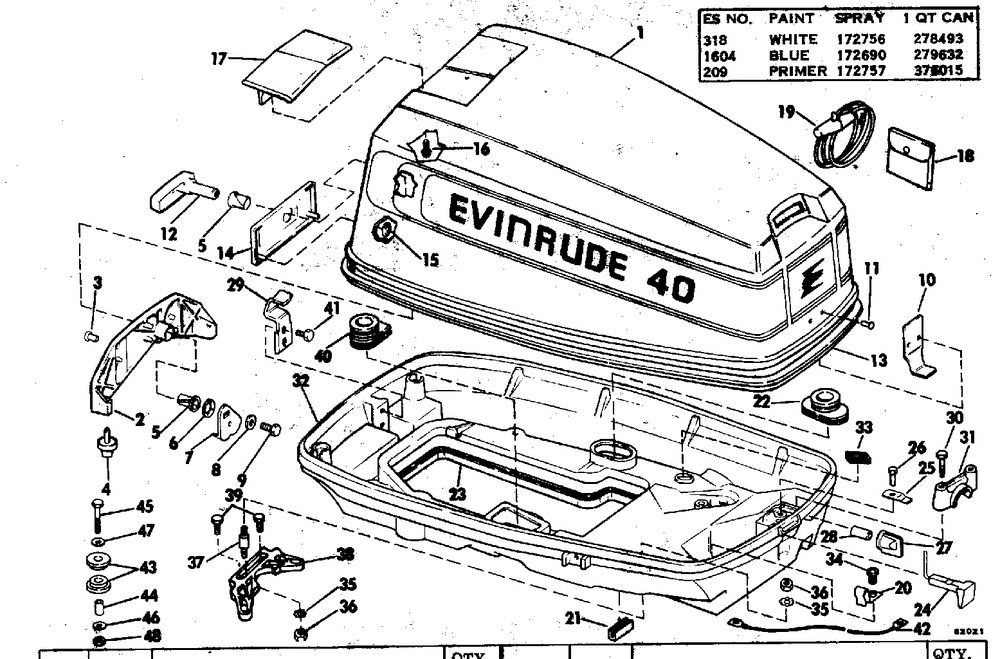

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Electric Start Models | 1 | |
| 1 | Manual Start Models | 1 | |
| 2 | BRACKET&HNDL AY Rope Start Models | 1 | |
| 3 | RIVET | 4 | |
| 4 | Детать | 2 | |
| 5 | BUSHING 5-PK (005 per pack) | 2 | |
| 6 | WASHER | 1 | |
| 7 | LATCH | 1 | |
| 8 | WASHER | 1 | |
| 9 | SCREW 1/4-20 | 1 | |
| 10 | HOOK MTR CVR | 1 | |
| 11 | RIVET | 2 | |
| 12 | Деталь | 1 | |
| 13 | Деталь | 1 | |
| 14 | Деталь | 1 | |
| 15 | NUTPUSH ON | 3 | |
| 16 | SCREW | 2 | |
| 17 | Деталь | 1 | |
| 18 | 30 Electric Start Models Only | 1 | |
| 19 | ROPE & HNDL | 1 | |
| 20 | SPRING | 1 | |
| 21 | SEAL | 1 | |
| 22 | GROMMET | 1 | |
| 23 | Детать | 1 | |
| 24 | CHOKE KNOB | 1 | |
| 25 | SPRING | 1 | |
| 26 | SCREW Electric Start Models Only | 1 | |
| 27 | Деталь | 1 | |
| 28 | BUSHING | 1 | |
| 29 | HOOK-MTR CVR-LWR | 1 | |
| 30 | SCREW-EXH HSG | 2 | |
| 31 | CLAMPLMC AY-FRONT ELECTRIC START MODELS | 1 | |
| 32 | Models with "R" Suffix | 1 | |
| 32 | Models with "A" Suffix | 1 | |
| 33 | GROMMET | 1 | |
| 34 | SCREW | 1 | |
| 35 | LOCK WASHER | 8 | |
| 36 | NUT | 8 | |
| 37 | RUBBER MOUNT Models with "R" Suffix | 4 | |
| 38 | Детать | 1 | |
| 38 | BRACKET AY Models with "R" Suffix | 1 | |
| 39 | SCREW | 2 | |
| 40 | Детать | 1 | |
| 42 | Детать | 1 | |
| 43 | GROMMET | 8 | |
| 44 | SPACER | 4 | |
| 45 | SCREW | 4 | |
| 46 | WASHER | 8 | |
| 47 | WASHER | 4 | |
| 48 | NUT Electric Start Models | 4 | |
| 0207748 | Not Shown | 1 | |
| 0279926 | Not Shown | 1 |
