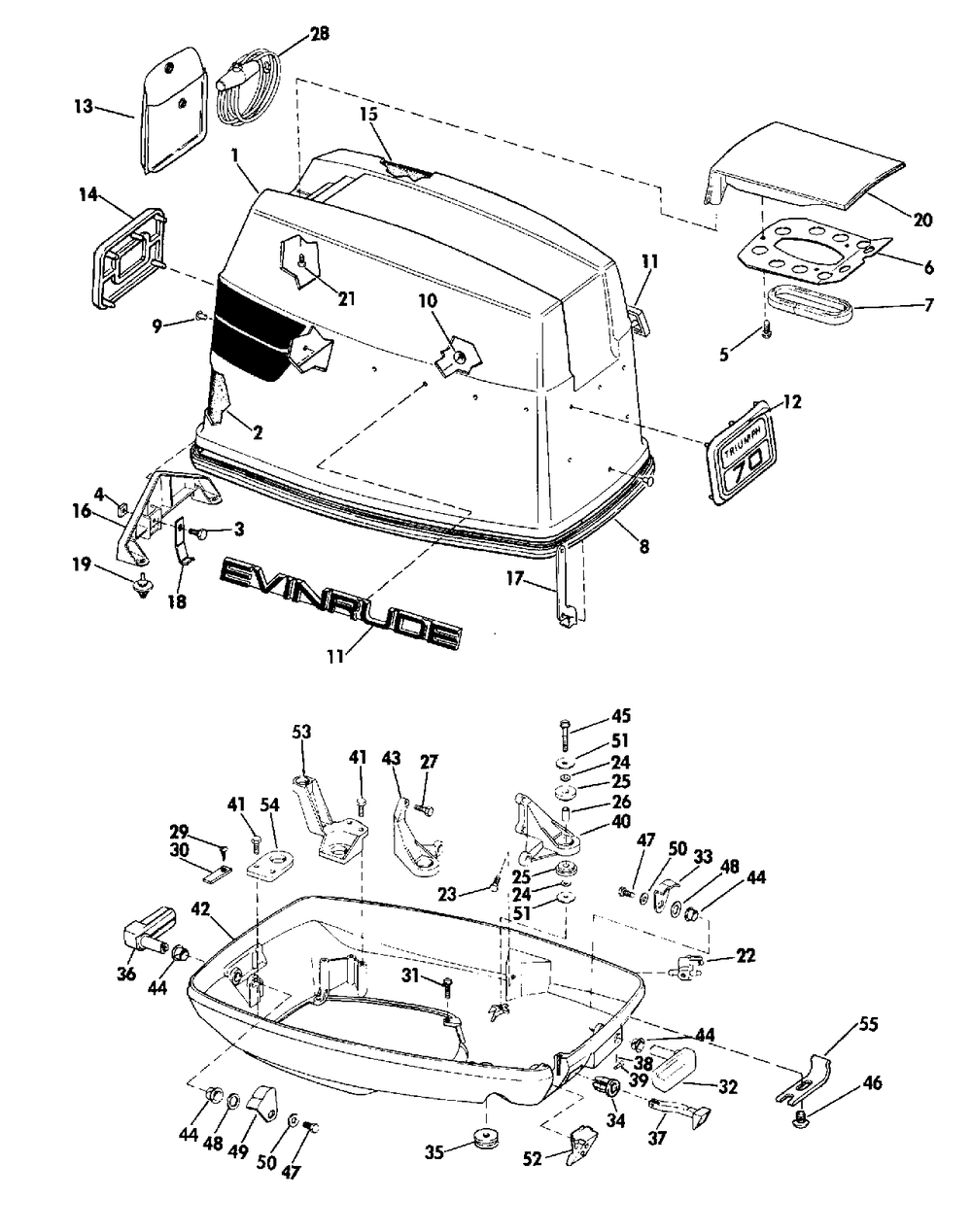

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | 70472M 70473M | 1 | |
| 2 | Детать | 1 | |
| 3 | SCREW | 1 | |
| 4 | NUT | 1 | |
| 5 | SCREW | 1 | |
| 6 | BAFFLE | 1 | |
| 7 | Детать | 1 | |
| 8 | Деталь | 1 | |
| 8 | Деталь | 1 | |
| 9 | RIVET | 5 | |
| 10 | NUTPUSH ON | 22 | |
| 11 | USED ON 135483 MODELS ONLY | 2 | |
| 12 | 70472M 70473M | 1 | |
| 13 | 30 Electric Start Models Only | 1 | |
| 14 | Деталь | 1 | |
| 15 | Детать | 1 | |
| 16 | LOCATING BRACKET | 1 | |
| 17 | HOOK-MC-FRT-EV | 1 | |
| 18 | Детать | 1 | |
| 19 | BUMPER | 3 | |
| 20 | Детать | 1 | |
| 21 | SCREW | 3 | |
| 22 | FUEL CONN. BODY AY Fuel Connector With Quick Disconnect | 1 | |
| 23 | SCREW Electric Start Models Only | 1 | |
| 24 | WASHER | 8 | |
| 25 | GROMMET | 8 | |
| 26 | SPACER | 4 | |
| 27 | SCREW | 1 | |
| 28 | ROPE & HNDL | 1 | |
| 29 | SCREW | 2 | |
| 30 | SPRING | 2 | |
| 31 | SCREW | 3 | |
| 32 | LATCH HDLE-FRONT | 1 | |
| 33 | Детать | 1 | |
| 34 | BUSHING | 1 | |
| 35 | Детать | 1 | |
| 36 | HDLE & SHFT A | 1 | |
| 37 | KNOB | 1 | |
| 38 | COTTER PIN | 1 | |
| 39 | HINGE PIN AY | 1 | |
| 40 | BRACKET | 1 | |
| 41 | SCREW | 5 | |
| 42 | Детать | 1 | |
| 43 | BRACKET | 1 | |
| 44 | BUSHING 5-PK (005 per pack) | 4 | |
| 45 | SCREW | 4 | |
| 46 | SCREW | 1 | |
| 47 | SCREW 1/4-20 | 2 | |
| 48 | WASHER | 2 | |
| 49 | LATCH | 1 | |
| 50 | WASHER | 2 | |
| 51 | WASHER-MOUNT | 8 | |
| 52 | GROMMET | 1 | |
| 53 | BRKT PORT | 1 | |
| 54 | BRKT STBD | 1 | |
| 55 | RETAINER | 1 | |
| 0207195 | Not Shown | 1 | |
| 0279698 | 70442M 70443M | 1 | |
| 0279713 | Деталь | 1 |
