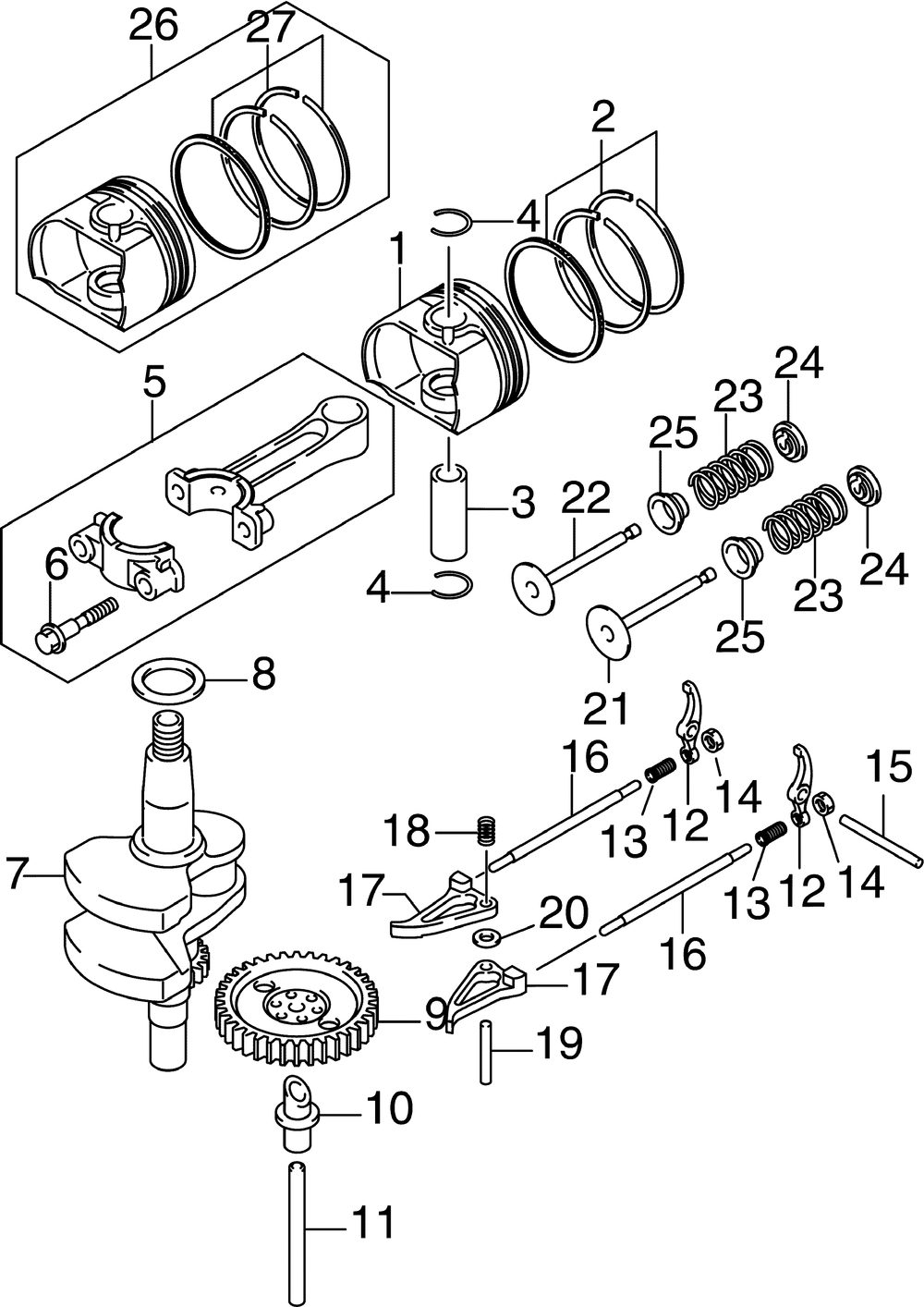

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PISTON | 1 | |
| 2 | SETPISTON RING | 1 | |
| 3 | PIN | 1 | |
| 4 | CIRCLIP | 2 | |
| 5 | CONN ROD AY | 1 | |
| 6 | BOLT | 2 | |
| 7 | CRANKSHAFT | 1 | |
| 8 | WASHER | 1 | |
| 9 | CAMSHAFT | 1 | |
| 10 | SHAFT | 1 | |
| 11 | SHAFT | 1 | |
| 12 | ROCKER ARM AY | 2 | |
| 14 | NUT | 2 | |
| 15 | SHAFT | 1 | |
| 16 | RODPUSH | 2 | |
| 17 | ARM | 2 | |
| 18 | SPRING | 1 | |
| 19 | SHAFT | 1 | |
| 21 | VALVE | 1 | |
| 22 | VALVE | 1 | |
| 23 | SPRING | 2 | |
| 24 | RETAINER | 2 | |
| 25 | SEAL | 2 | |
| 26 | SETPISTON .050 Optional | 1 | |
| 27 | SETPIST RNG .050 Optional | 1 |
